Product type: Thin Film Filter. Application: Lighting, Medical, Optical, Photography. Model: NBP097.
Overview

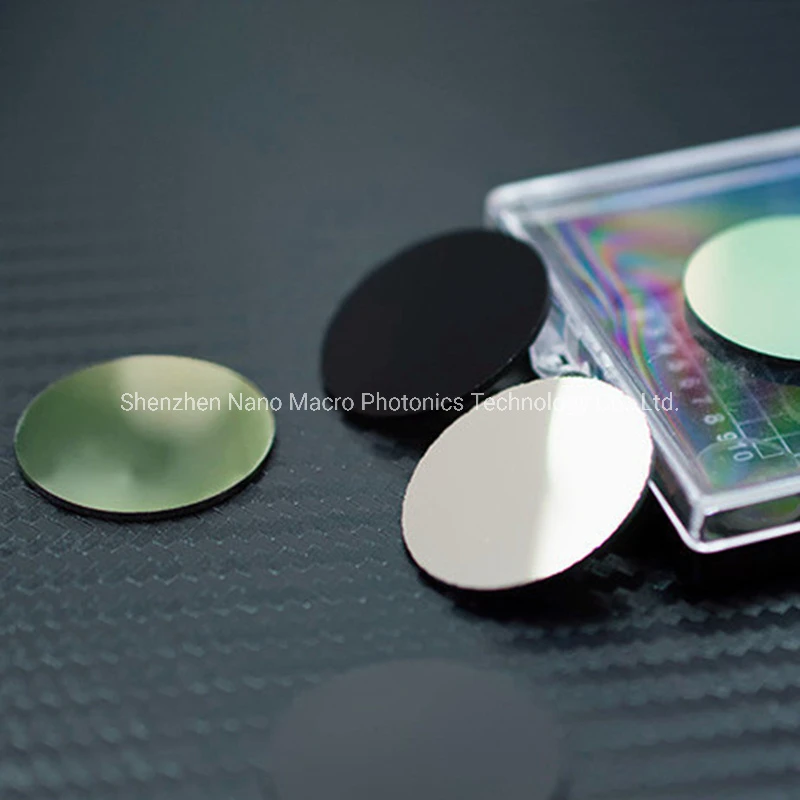

Optical Glass Enzyme-Labeled 532nm Bandpass Filter Biochemical Filter is a bandpass filter made from Glass. Listed geometry: thickness 1mm-2mm. Optical / electrical data: wavelength 532nm or Custom, bandwidth 10nm or Custom. Typical applications: Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Thin Film Filter |
| Shape | Customized |
| Cwl | 532nm or Custom |
| Fwhm | 10nm or Custom |
| Usage | Lighting, Medical, Optical, Photography |
| Thickness Range | 1mm-2mm |
| Model NO. | NBP097 |
| Color | Transparent |
| Principle | Cut-off Filter |
| Angle of incidence | 0° |
| Supplier | Nano Macro Optics Co.,Ltd. |
Technical data
| CWL | 532±3nm |
|---|---|
| FWHM | 10±3nm or custom |
| Blocking range | 350-1100nm (customizable) |
| Materials | Optical glass |
| Size | Customizable |
| Thickness | Customizable |
| Size Tolerance | ±0.1mm |
| Surface Quality | 60/40 |
| Application Area | biochemical analyzer, optical measuring instruments etc. |
What to specify when you request a quote
- Spectral target — listed as “532nm or Custom”; state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “0°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “1mm-2mm”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — quote scratch-dig for imaging paths.
