Product type: Color Filter. Application: Optical and Photographic Instrument.
Overview

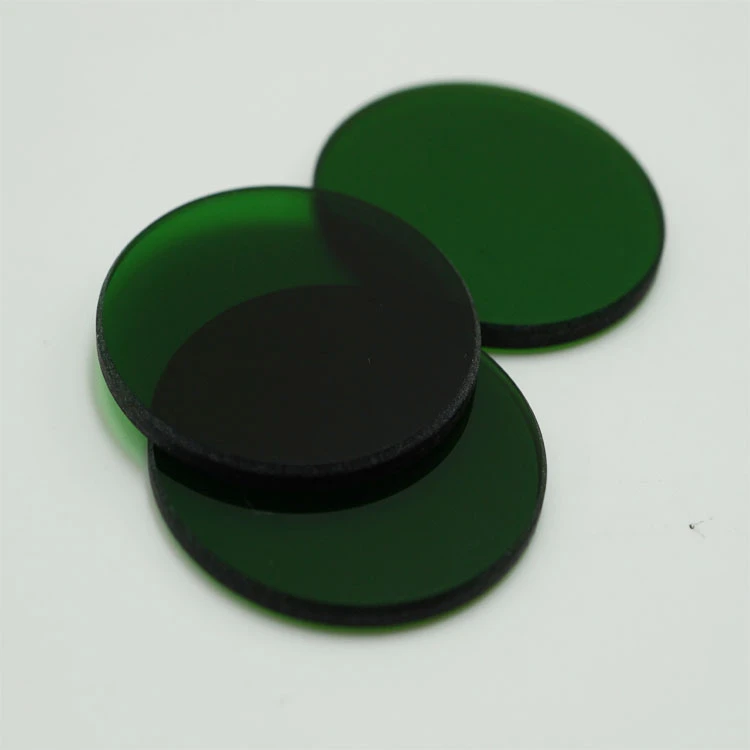

The Optical Glass Lens Narrow Band Band Pass Short Wave Pass Filter for Detection Instrument is supplied as a bandpass filter made from Glass. Listed geometry: thickness Customized. Optical / electrical data: wavelength Customized. Listed for Medical, Optical and Photography applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Color Filter |
| Shape | Customized |
| Cwl | Customized |
| Usage | Medical, Optical, Photography |
| Color | Transparent |
| Principle | Cut-off Filter |
| Angle of incidence | 45° |
| Name | Shortwave Pass Filter |
| Key | Optical Filter |
| Thickness Tolerance | ±0.1mm |
| Use | Optical and Photographic Instrument |
| Thickness Range | Customized |
| Supplier | Shanghai Jingsheng Optoelectronics Technology Co., Ltd |
Technical data
| Product name | Short Pass Filter |
|---|---|
| Material | K9,BK7,B270,quartz,Float glass,D263T,Fused silica,etc. |
| Cut-off Wavelength | 400-1300nm |
| Optical Density | OD3; OD4; OD5; OD6 |
| Cut-off Range | 300-1650 |
| Size Tolerance | 0.5-600±0.02mm |
| Clear Aperture | ≥90% |
| Thickness Tolerance | 0.3-50±0.02mm |
| Surface Type | λ/10~λ/2 |
| Surface Quality | 10-5 |
| Chamfer | 45°×0.2mm |
| Coating | AR Coating or Customer Design |
What to specify when you request a quote
- Spectral target — listed as “Customized”; state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “45°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “±0.1mm”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — quote scratch-dig for imaging paths.
