Product type: Prism. Application: Digital Device. Model: STF549.
Overview

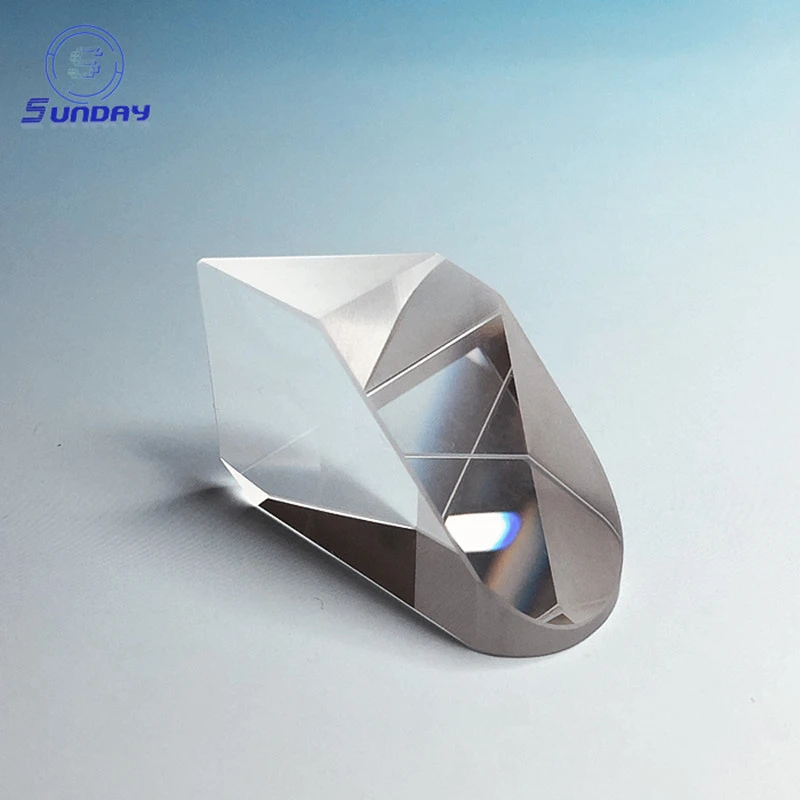

Optical Glass Roof Prisms for Binoculars Microscopes and Telescope Eyepieces is an optical prism made from Glass. Listed geometry: size 3-300mm, right angle shape. Coating: AR,HR,Aluminum,Silver or customer request.; surface quality 20-10; flatness 1/10 Lambda. Typical applications: Digital Device. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Prism |
| Shape | Right Angle |
| Size | 3-300mm |
| Coating | AR,HR,Aluminum,Silver or customer request. |
| Surface Quality | 20-10 |
| Flatness | 1/10 Lambda |
| Application | Digital Device |
| Usage | Test |
| Model NO. | STF549 |
| Tolereance | +0.00/-0.002mm |
| Angle Tol | <0.2 Seonds |
| Tolerance | +/-0.01mm |
| Suface Quality | 10-5 |
| Angle tolerance | <3 seconds |
| Supplier | Changchun Sunday Optics Co., Ltd. |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — listed as “3-300mm”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “20-10”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “AR,HR,Aluminum,Silver or customer request.”; list the band and reflectance or transmission target.
