Product type: Color Filter. Application: Lighting, Medical, Optical, Photography, Fluorescence analyzer.
Overview

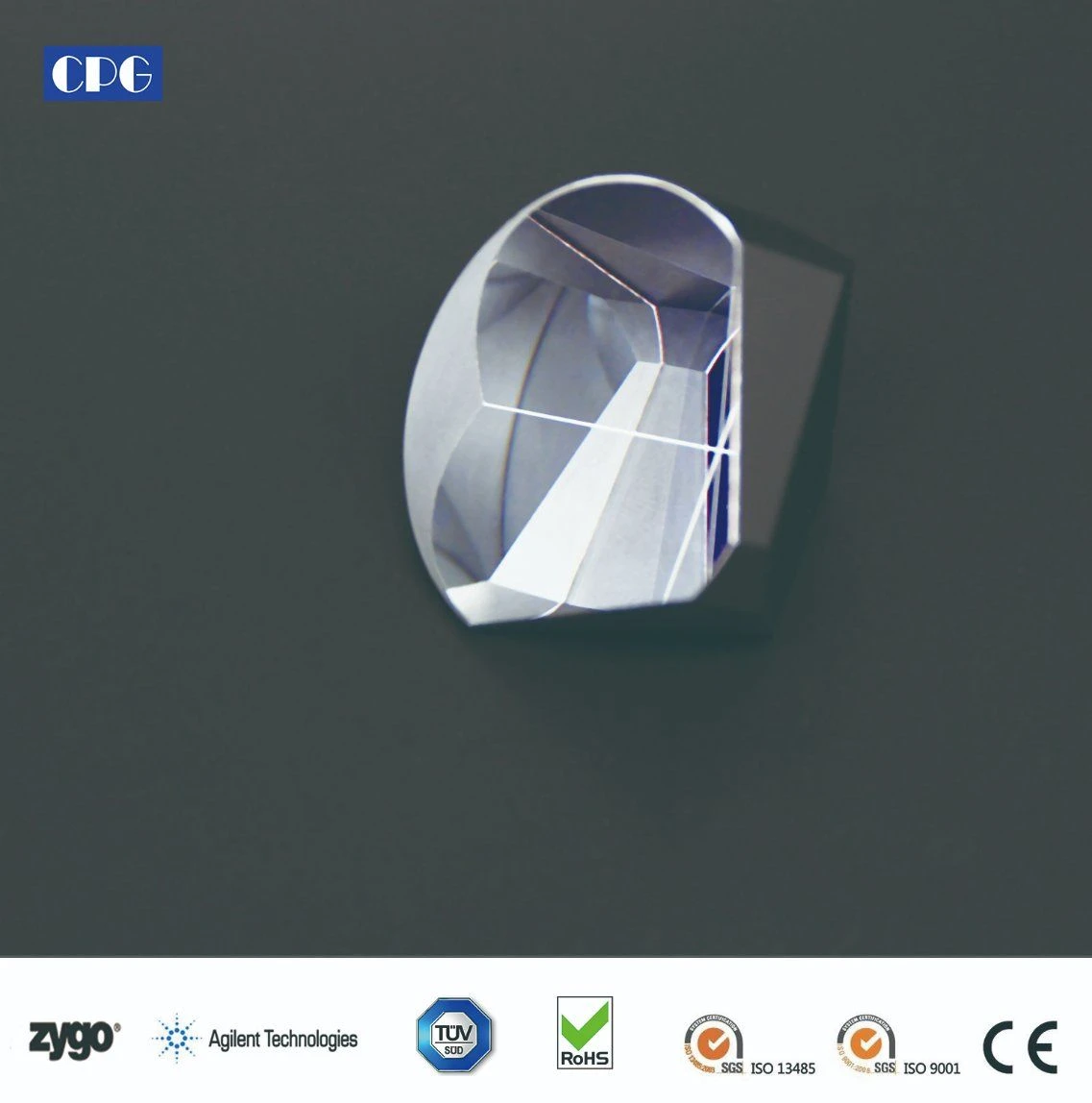

The Optical High Quality H-K9l Corner Cube Prism Retroflectors Prism Diameter 15mm is supplied as an optical prism made from Glass. Listed geometry: thickness 1mm-2mm. Optical / electrical data: wavelength 635±1nm, bandwidth 20-25nm. Listed for Lighting, Medical, Optical, Photography and Fluorescence analyzer applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Color Filter |
| Shape | Customized |
| Usage | Lighting, Medical, Optical, Photography, Fluorescence analyzer |
| Thickness Range | 1mm-2mm |
| Color | Green |
| Principle | Cut-off Filter |
| Angle of incidence | 0° |
| Up to band | 400nm-620nm, 650nm-850nm |
| Center wavelength | 635±1nm |
| Half Bandwidth | 20-25nm |
| Package detail | Optics are packed with Capacitor paper, white paper, custom-made plastic containers etc |
| Supplier | CPG OPTICS LIMITED |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — listed as “0°”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
