Product type: Right Angle Prism. Application: Optical Communication.
Overview

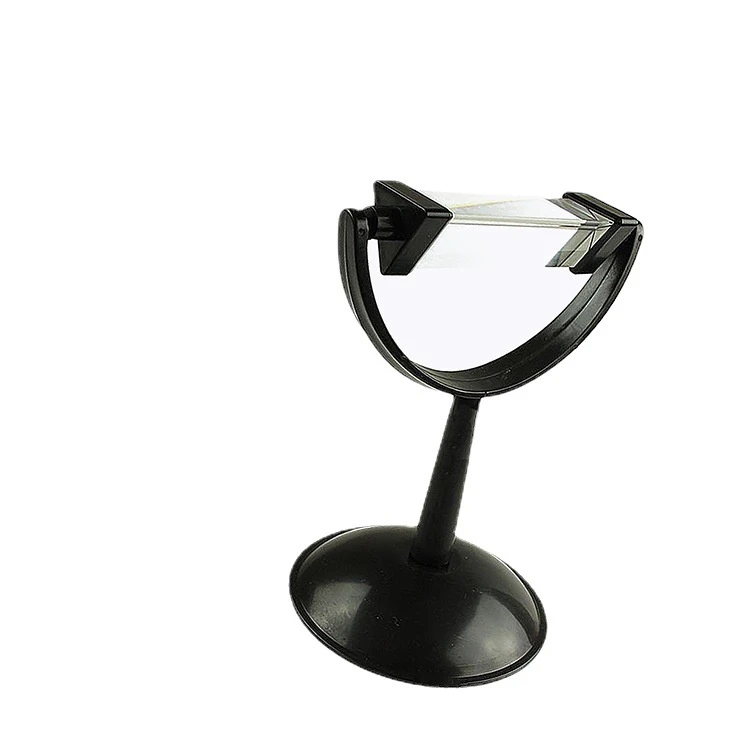

The Optical Prism with Bracket K9 Crystal Prism Optical Instrument Photography Photography Rainbow Mitsubishi Mirror is supplied as an optical prism made from Glass. Listed geometry: right angle prism shape. Surface quality 10/5~80/50. Typical applications: Scientific Research. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Right Angle Prism |
| Shape | Right Angle Prism |
| Surface Quality | 10/5~80/50 |
| Clear Aperture | >90% |
| Application | Scientific Research |
| Usage | Optical Communication |
| Coating Choice | UC/ Hc/Hmc/Shmc/UV400/UV420 |
| Surface Accuracy | 1/4 Lambda Or1/8lambda |
| Color | Transparent |
| Supplier | Shanghai Jingsheng Optoelectronics Technology Co., Ltd |
Technical data
| Material | N-BK7, UV Fused Silica |
|---|---|
| Surface Quality | 40/20 |
| Dimension Tolerance | ±0.1mm |
| Angle Tolerance | +/- 3 arc seconds |
| Flatness | 1/4 Lambda OR 1/8 Lambda |
| Dimension (mm) | 15*10*5mm |
| Recommended Products | ||
| Lens | Optical Filter | Prisms |
| Optical windows | Wave plate | Optical Reflector mirror |
| Lens Device | Reticle | Crystals |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “10/5~80/50”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “UC/ Hc/Hmc/Shmc/UV400/UV420”; list the band and reflectance or transmission target.
Engineering guides for this part
How parts like this are machined and finished is covered in Flat Glass Polishing Process for Precision Substrates. Before sending a drawing, check Design Guide for Holes, Slots, and Edges in Custom Glass Parts.
FAQ
What is the Optical Prism with Bracket K9 Crystal Prism Optical Instrument Photography Photography Rainbow Mitsubishi Mirror made of? expand_more
It is listed as Glass. Other grades can be quoted if your application needs different transmission, thermal or chemical properties.
Where is this optical prism used? expand_more
Listed applications: Scientific Research.
What should I include in a quote request? expand_more
Include material, geometry, surface figure, centring and edges and coating, plus quantity and a drawing if the part is custom.
