Product type: Thin Film Filter. Application: Lighting, Medical, Optical, Photography, Laser. Model: ODM/OEM.
Overview

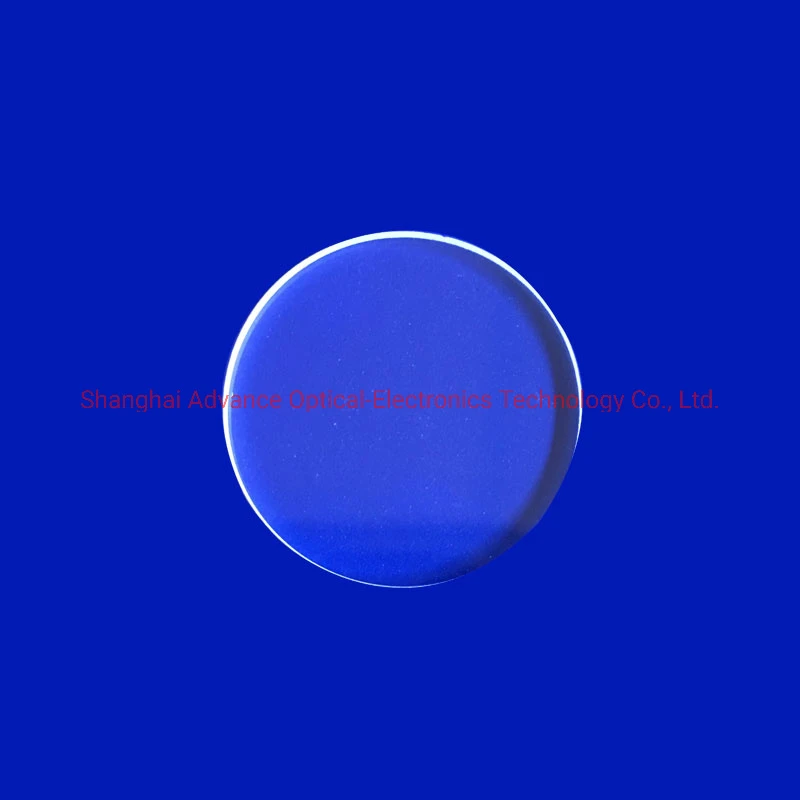

Optical Quartz Substrate Thin Plate is a precision glass plate / sheet made from Glass. Listed geometry: diameter 0.5~200mm, thickness 0.2~10mm. Surface quality 10/5. Listed for Lighting, Medical, Optical, Photography and Laser applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Thin Film Filter |
| Shape | Customized |
| Diameter | 0.5~200mm |
| Thickness | 0.2~10mm |
| Surface Quality | 10/5 |
| Usage | Lighting, Medical, Optical, Photography, Laser |
| Model NO. | ODM/OEM |
| Thickness Range | 0.2~10mm |
| Color | as Request |
| Principle | Cut-off Filter |
| Angle of incidence | 0° |
| Cut-off Depth | >Od5 |
| Irregularity | 1/10 |
| Supplier | Shanghai Advance Optical-Electronics Technology Co., Ltd. |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or quartz grade.
- Outline and thickness — listed as “0.5~200mm”; give outline, thickness and tolerances.
- Holes, slots and features — listed as “Customized”; dimension every hole and its position tolerance on the drawing.
- Edges — state edge finish and chamfer.
- Surface — listed as “10/5”; state polish and flatness where they matter.
