Application: Building, Furniture, Home Appliance, Electronics & Instruments, Auto Manufacturing, Daily Products. Model: 8mm-12mm.
Overview

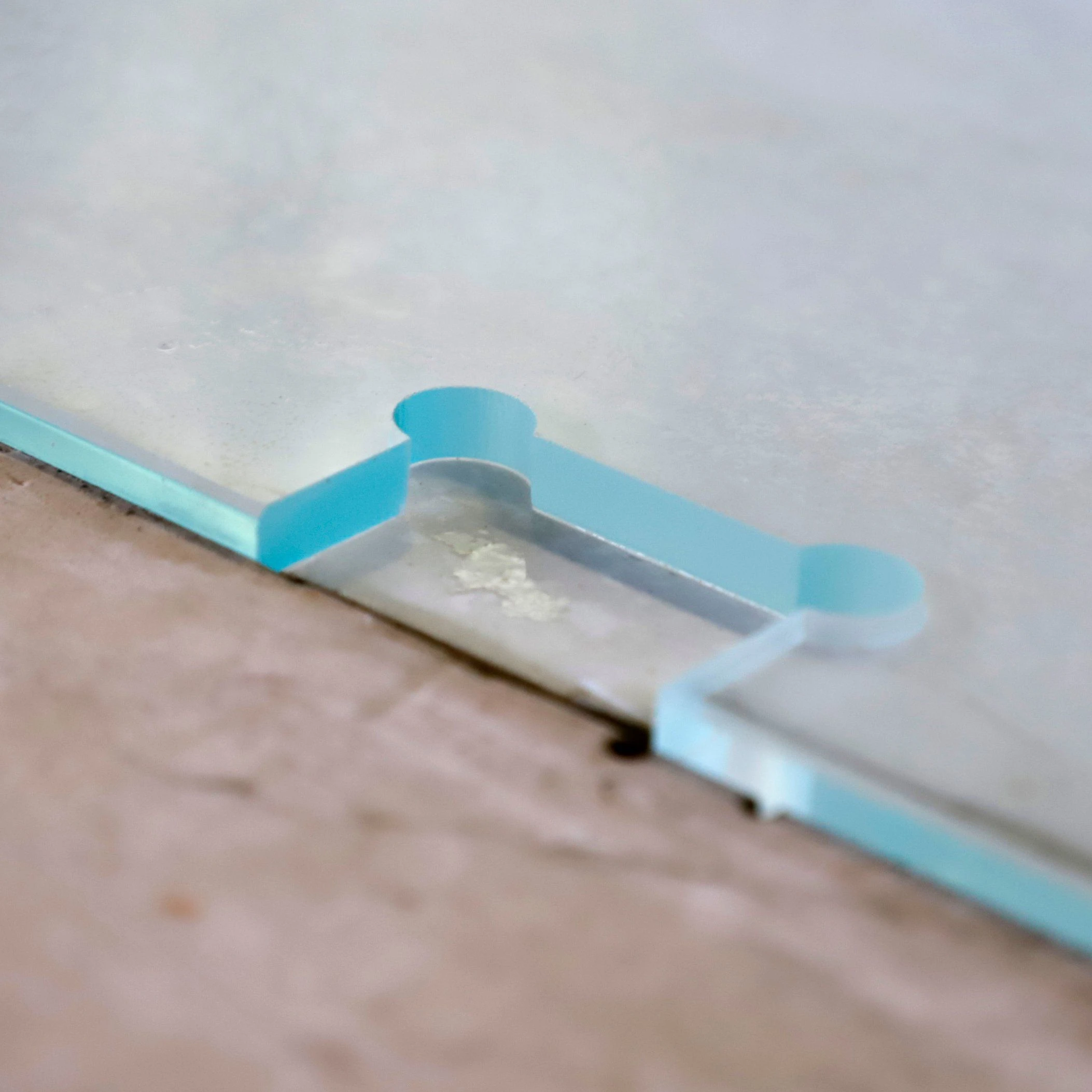

Perforated Tempered Bathroom Door Glass: a building / safety glass. Listed geometry: size 2440 mm * 6500 mm, thickness 4mm-19mm, flat shape. Flatness Conforming Article. It is used in Building, Furniture, Home Appliance, Electronics & Instruments and Auto Manufacturing. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Shape | Flat |
|---|---|
| Thickness | 4mm-19mm |
| Flatness | Conforming Article |
| Usage | Building, Furniture, Home Appliance, Electronics & Instruments, Auto Manufacturing, Daily Products |
| Appearance | Flat Tempered |
| Model NO. | 8mm-12mm |
| Standard | GB15763.2-2005 |
| Steel Degree | Tempered Glass |
| Thickness of Flat Tempered Glass | 4-19 mm |
| Thickness of Curve Tempered Glass | 5-19 mm |
| Fragment State | I |
| Technics | Physically Tempered |
| Max Size | 2440 mm * 6500 mm |
| Mini Size | 200mm*300mm |
| Tempered | 4-19mm Half Tempered: 4-12 mm |
| Supplier | Shandong Jingcheng Glass Technology Co., Ltd. |
Technical data
| Glass Type | Tempered Glass/Toughed Glass |
|---|---|
| Color | Clear/Ultra-Clear/Green/Gray/Bronze/Blue/Lake blue |
| Maximum Size | 2440*6500 mm |
| Minimum Size | 200*300 mm |
| Thickness | Tempered: 4-19mm Half Tempered: 4-12 mm |
| Glass Type | Insulted Glass |
| Maximum Size | 2500*5000 mm |
| Minimum Size | 200*300 mm |
| Thickness | 3-19 mm |
| Spacer Thickness | 6mm, 9mm, 12mm,15mm,16mm,18mm, 20mm, 22mm, 24mm |
| Glass Type | Laminated Glass |
| Maximum Size | 2250*7800 mm |
| Thickness | 3-19 mm |
| Total Thickness | 6.38-50 mm |
| PVB | 0.38-2.28mm (0.38mm, 0.76mm, 1.14mm, 1.52mm) |
| Arch Height < 50mm for curved laminated glass | |
| Glass Type | Low-E Glass |
| Low-E Types | On Line Low-E GlassOff Line Low-E GlassDouble Silver Low-E GlassCurved Tempered Low-E Glass |
| Maximum Size | 2440*3660 mm |
| Minimum Size | 300*700 mm |
| Thickness | 4-10 mm |
| Popular Size | 2134*3300 mm 2440*3300 mm 2440*3300 mm 2134*3660 mm 2440*3660 mm |
| Glass Type | Online Reflective Coated Glass |
| Color | Silvery Gray/ Gray/ Blue Gray/ Blue/ Lake Blue/ Grayish Green/ GreenBluish Green/ Golden/ Tawny/ Champagne, etc. |
| Maximum Size | 2440*3660 mm |
| Minimum Size | 350*600 mm |
| Thickness | 4-10 mm |
| Packaging | Safe Plywood cases and Interlayer paper between glass |
| Lead Time | On Time Delivery |
| Whether u request one container or a bulk shipment, we still take great importance to the details in every order, do a great job in each shipment. |
What to specify when you request a quote
- Glass type and thickness — listed as “4mm-19mm”; name the glass and thickness.
- Temperature and pressure — give working temperature, thermal shock and any pressure rating.
- Strengthening and safety — listed as “4-19 mm”; state tempering, lamination or the safety standard.
- Outline and edges — listed as “Flat”; send a drawing with outline, holes and edge finish.
