Product type: Color Filter. Application: Lighting, Medical, Optical, Photography. Model: ND017.
Overview

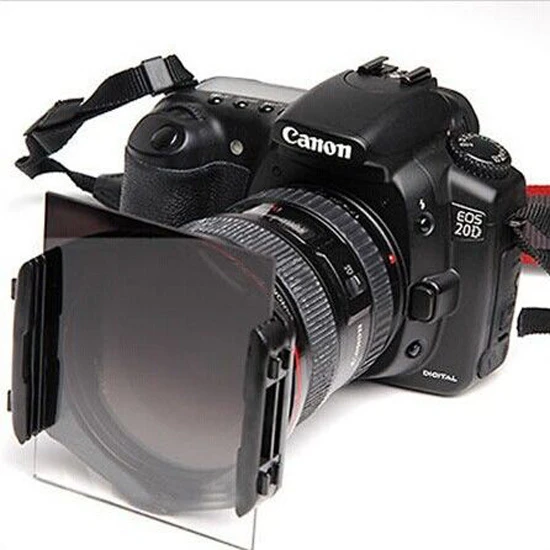

Photography Camera Optical Lens Filter Glass Filter Polarizer is a waveplate / polariser / grating made from Glass. Listed geometry: thickness 1mm-2mm. Optical / electrical data: wavelength 400-700nm. Typical applications: Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Color Filter |
| Shape | Customized |
| Wavelength | 400-700nm |
| Usage | Lighting, Medical, Optical, Photography |
| Thickness Range | 1mm-2mm |
| Model NO. | ND017 |
| Color | Transparent |
| Principle | Selective Absorption Filter |
| Angle of incidence | 0° |
| Product Name | Polarizer |
| Fuction 3 | Use these filter to capture images of small objects have unexpected exlarge effect. |
| Supplier | Nano Macro Optics Co.,Ltd. |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — listed as “0°”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
Engineering guides for this part
For material grades and coating options, see Color Filter Glass Materials for High-Performance Optical Screening and Imaging. A related standard product is Optical Glass Colour Filter.
FAQ
What is the Photography Camera Optical Lens Filter Glass Filter Polarizer made of? expand_more
It is listed as Glass. Other grades can be quoted if your application needs different transmission, thermal or chemical properties.
What sizes and thicknesses are available? expand_more
The listing gives thickness 1mm-2mm. Custom outlines and thicknesses are made to drawing; state the tolerance you need.
What optical or electrical performance does it have? expand_more
Listed values: wavelength 400-700nm. Confirm the values at your operating wavelength, angle and temperature when you request a quote.
Where is this waveplate / polariser / grating used? expand_more
Listed applications: Lighting, Medical, Optical and Photography.
What should I include in a quote request? expand_more
Include material, geometry, surface figure, centring and edges and coating, plus quantity and a drawing if the part is custom.
