Product type: Optical Glass Lens. Application: Lighting, Medical, Optical, Photography. Model: KGO107.
Overview

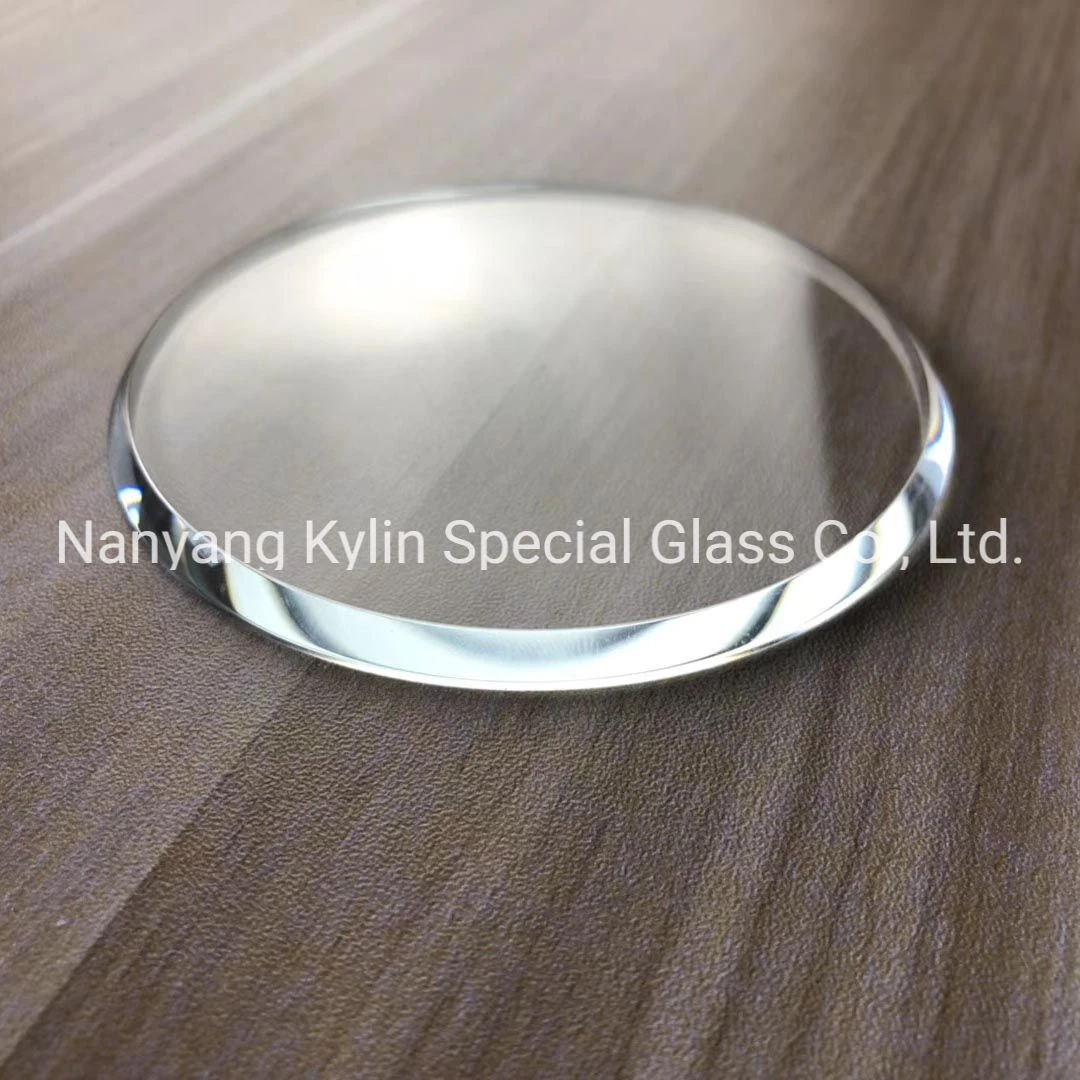

Plano Convex Concave Lens Bi Convex Concave Glass Lens: an optical lens made from Fused Silica,Bk7,B270. Listed geometry: custom shapes shape. Optical / electrical data: transmittance >95%. Coating: Polishing, Coating. Typical applications: Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Fused Silica,Bk7,B270 |
|---|---|
| Type | Optical Glass Lens |
| Shape | Custom Shapes |
| Transmittance | >95% |
| Coating | Polishing, Coating |
| Clear Aperture | 90% |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | KGO107 |
| Lenses Color | Clear |
| Dimension to Lerance | +0/-0.1mm |
| Fringes | 1-5 |
| Center Thickness | ±0.1mm |
| Supplier | Nanyang Kylin Special Glass Co., Ltd. |
Technical data
| Material | Focal length | Dimension tolerance | Center thickness | Centration | Fringes | Irregularity of fringes | Surface quality | coating | Clear aperture |
| K9,fused silica,etc. | ±2% | +0/-0.1mm | ±0.1mm | 3' | 1-5 | 0.2-0.5 | 60/40 | AR coating | 90% |
What to specify when you request a quote
- Material — listed as “Fused Silica,Bk7,B270”; name the glass or crystal.
- Geometry — listed as “+0/-0.1mm”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Polishing, Coating”; list the band and reflectance or transmission target.
