Product type: Cylindrical Glass Lens. Application: Lighting, Medical, Optical, Photography. Model: KGO108.
Overview

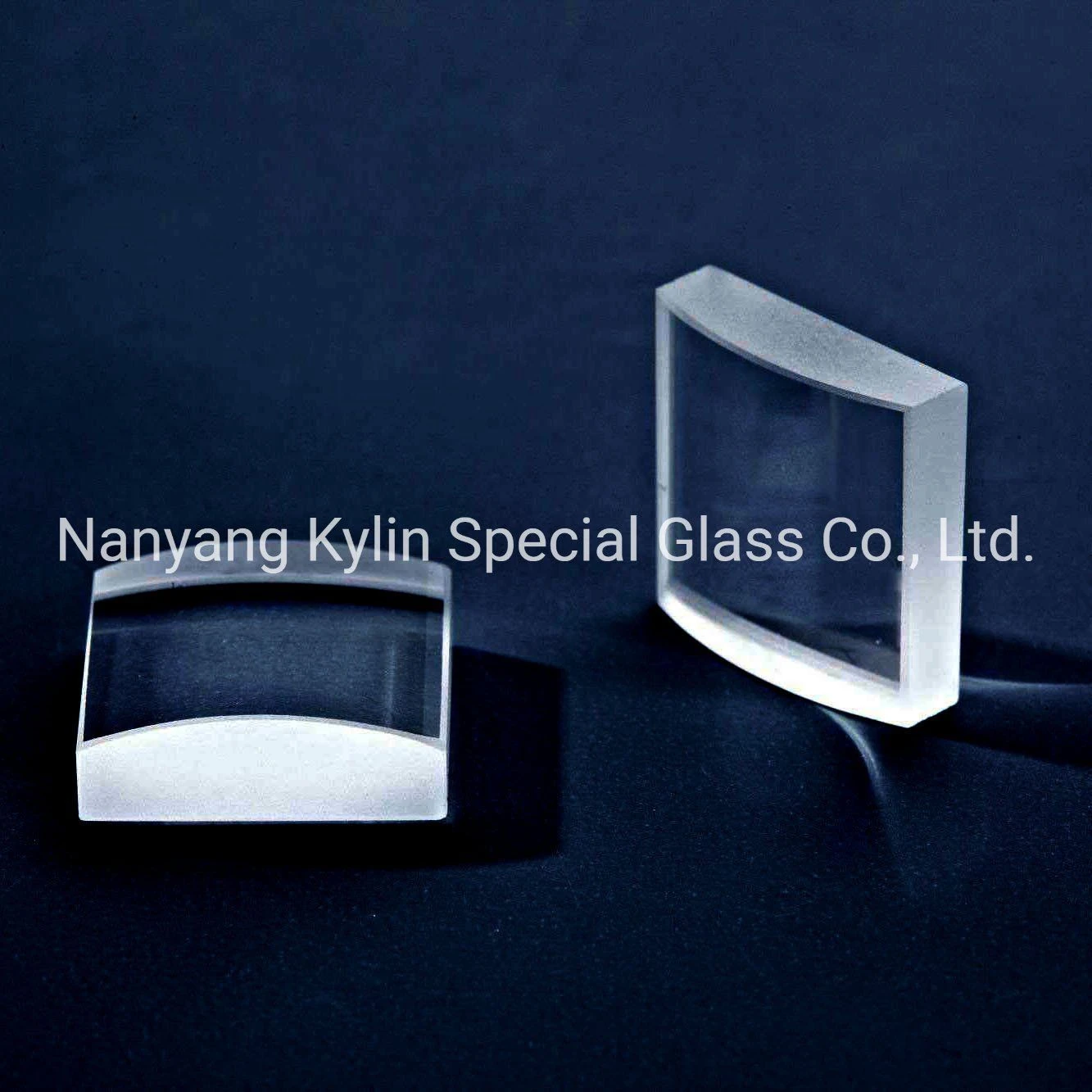

The Plano-Convex Cylindrical Lens Concave Mirror Optical Glass Lens is supplied as an optical lens made from Fused Silica,Bk7,B270. Listed geometry: custom shapes shape. Optical / electrical data: transmittance >95%. Coating: Polishing, Coating. It is used in Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Fused Silica,Bk7,B270 |
|---|---|
| Type | Cylindrical Glass Lens |
| Shape | Custom Shapes |
| Transmittance | >95% |
| Coating | Polishing, Coating |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | KGO108 |
| Lenses Color | Clear |
| Supplier | Nanyang Kylin Special Glass Co., Ltd. |
What to specify when you request a quote
- Material — listed as “Fused Silica,Bk7,B270”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Polishing, Coating”; list the band and reflectance or transmission target.
