Product type: Welding Flange. Model: ys180.
Overview

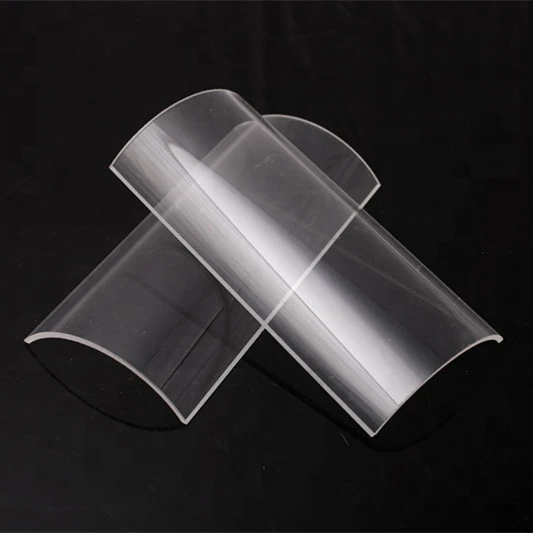

Polished Clear Quartz Glass Plate is a precision glass plate / sheet made from Quartz Glass. Listed geometry: size 1000mm×2000mm for Square shape, thickness 0.5-30mm. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Quartz Glass |
|---|---|
| Type | Welding Flange |
| Thickness | 0.5-30mm |
| Standard | ANSI, GB |
| Model NO. | ys180 |
| Structure | Round |
| Connection | Clamps |
| Sealing Surface | RF |
| Manufacturing Way | Forging |
| Clear Quartz | Opaque Quartz |
| Flange OD is from | 5mm to 500mm |
| Flange ID is from | 1mm to 450mm |
| Flange Thickness is from | 0.5mm to 550mm |
| MAX Size | 1000mm×2000mm for Square shape |
| Supplier | Hubei Yunsheng Quarts Products Co., Ltd. |
Technical data
| Product Name | Yunsheng High purity Clear quartz flange |
|---|---|
| Material | 99.99% pure quartz |
| Color | Clear |
| S/N no. | JD-QGT-201709280002 |
| Working temperature | 1100 degree |
What to specify when you request a quote
- Material — listed as “Quartz Glass”; name the glass or quartz grade.
- Outline and thickness — listed as “0.5-30mm”; give outline, thickness and tolerances.
- Holes, slots and features — dimension every hole and its position tolerance on the drawing.
- Edges — state edge finish and chamfer.
- Surface — listed as “RF”; state polish and flatness where they matter.
Engineering guides for this part
For material grades and coating options, see Custom Borosilicate Glass Sheets Cut to Size: Precision and Performance. How parts like this are machined and finished is covered in Optical Glass Polishing for High Clarity Surfaces. For an application example, read Custom Ultra-Thin Glass Discs for Appliance Sensor Assemblies. A related standard product is Custom Ultra-Thin Quartz Glass Disc.
FAQ
What is the Polished Clear Quartz Glass Plate made of? expand_more
It is listed as Quartz Glass. Other grades can be quoted if your application needs different transmission, thermal or chemical properties.
What sizes and thicknesses are available? expand_more
The listing gives size 1000mm×2000mm for Square shape, thickness 0.5-30mm. Custom outlines and thicknesses are made to drawing; state the tolerance you need.
What should I include in a quote request? expand_more
Include material, outline and thickness, holes, slots and features, edges and surface, plus quantity and a drawing if the part is custom.
