Product type: Rectangular Prism. Application: Beam Dispersion. Model: FSOP.
Overview

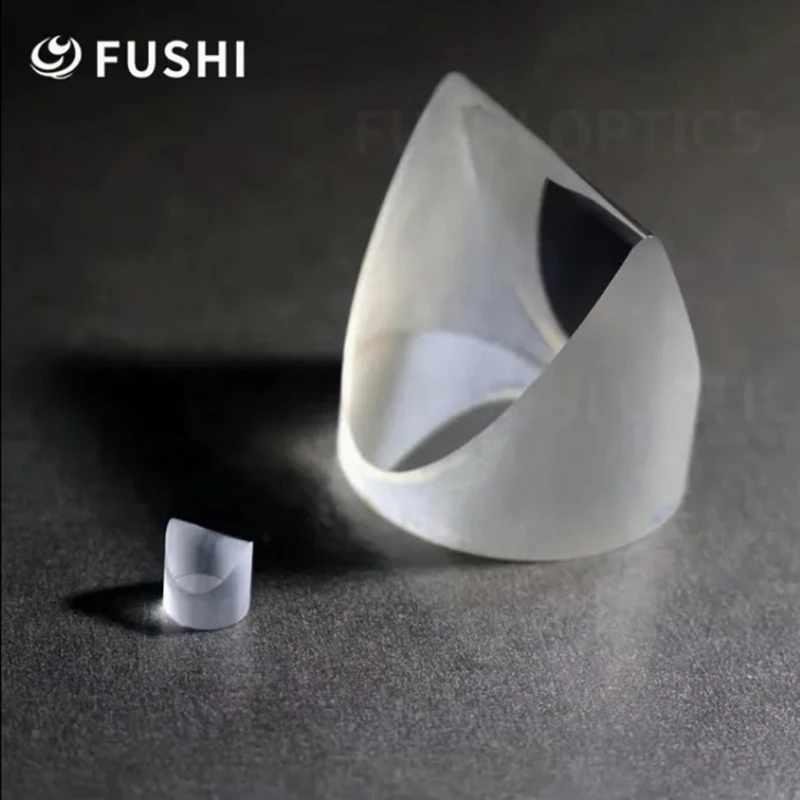

The Powell Prism for Optics in Stock Customizable Manufacturer Optical Prism is supplied as an optical prism made from Glass. Listed geometry: diameter 8.9mm, semi roof prism shape. Optical / electrical data: wavelength 450-900. Surface quality 20/10 or Better. It is used in Digital Device. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Rectangular Prism |
| Shape | Semi Roof Prism |
| Wavelength Range | 450-900 |
| Surface Quality | 20/10 or Better |
| Application | Digital Device |
| Usage | Beam Dispersion |
| Model NO. | FSOP |
| Diamter | 8.9mm |
| Principle | Ar Coating |
| Production process steps | 1. Edge grinding device |
| Supplier | Tianjin Fushi Optical Technology Co., Ltd. |
Technical data
| PRODUCT NAME | Powell Prism |
|---|---|
| PRODUCT SIZE | Customization |
| COATING | VIS-NIR |
| WAVELENGTH RANGE | 450-900 |
| MATERIAL | Glass |
| TRANSMITTANCE | 96% |
| FAN ANGLE | 5°/10°/15°/20°/30°/35°/40°/45°/50°/55°/60°/65°/70°/75°/90°/110° |
| SURFACE QUALITY | 60/40 |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “20/10 or Better”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
Engineering guides for this part
How parts like this are machined and finished is covered in Optical Glass Polishing for High Clarity Surfaces. Before sending a drawing, check Design Guide for Holes, Slots, and Edges in Custom Glass Parts.
FAQ
What is the Powell Prism for Optics in Stock Customizable Manufacturer Optical Prism made of? expand_more
It is listed as Glass. Other grades can be quoted if your application needs different transmission, thermal or chemical properties.
What sizes and thicknesses are available? expand_more
The listing gives diameter 8.9mm. Custom outlines and thicknesses are made to drawing; state the tolerance you need.
What optical or electrical performance does it have? expand_more
Listed values: wavelength 450-900. Confirm the values at your operating wavelength, angle and temperature when you request a quote.
Where is this optical prism used? expand_more
Listed applications: Digital Device.
What should I include in a quote request? expand_more
Include material, geometry, surface figure, centring and edges and coating, plus quantity and a drawing if the part is custom.
