Product type: Plano-Convex Lenses. Application: Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc. Model: RAY-OL023#.
Overview
The Precision 1064nm UV Fused Silica Lens for Optimal Performance is supplied as an optical lens in Optical Glass (Optical Glass, UV Fused Silica Substrate substrate). Listed geometry: single-lens shape. Optical / electrical data: wavelength 1064nm, transmittance >95%. Coating: V-Coat Multilayer; surface quality 20-10 Scratch-Dig or Custom; flatness Lambda/8. Listed for Lighting, Medical, Optical, Photography and Laser applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Substrate | Optical Glass, UV Fused Silica Substrate |
| Type | Plano-Convex Lenses |
| Shape | Single-lens |
| Transmittance | >95% |
| Coating | V-Coat Multilayer |
| Surface Quality | 20-10 Scratch-Dig or Custom |
| Usage | Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc |
| Model NO. | RAY-OL023# |
| Lenses Color | Clear |
| Ar Coating Wavelength | 1064nm |
| Coating Type | V-Coat Multilayer Ar.33 |
| Surface Flatness | Lambda/8 |

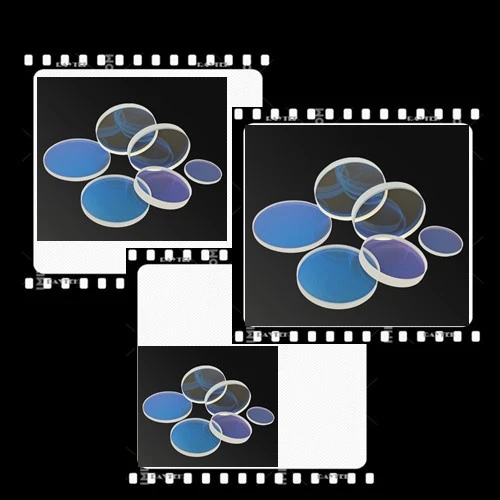

| Products Name | 1064nm Coated UV Fused Silica Plano-Convex Lenses |
| Lens Substrates | UV fused silica substrate for UV region, laser line and wide band applications |
| Optional I | UV fused silica |
| Optional II | Equivalent UV fused silica |
| Applying Fields I | Laser electrooptic focusing |
| Applying Fields II | Collimating laser beam for laser equipment |
| Appling Fields III | Optical fiber marking machines |
| Main Optical Tech Specification | Lens Shape |
| Main Physical Size Specification | Products Code |
| Other Available Lens Substrates | UV fused quartz,Molded glass,Fused silicon glass,N-BK7,K9,K7,B270,D-LAK,D-ZK3,D-ZLaF52LA18 |
| Main Cooperation Materials Manufacturers | CORNING, OHARA, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
Technical data
| Optional I: | UV fused silica from CORNING, OHARA, LEONI, AGC,HELLMA, NIKON,VITRON,ETC |
|---|---|
| Optional II: | Equivalent UV fused silica Made in China, C-laser own brands |
| Applying Fields I: | Laser electrooptic focusing |
|---|---|
| Applying Fields II: | Collimating laser beam for laser equipment Collimating the optical fiber output Laser Line |
| Appling Fields III: | Optical fiber marking machines Laser marking machines Laser cutting machines Other |
| Lens Shape | Plano-Convex | Surface AccuracyIrregularity | λ/8 |
| Lens Material | UV Fused Silica | Surface Accuracy, Power | 1.5 λ |
| Antireflection Coating | 1064nm | Chamfers | 0-0.8 mm face width |
| Coating Type | V-Coat Multilayer | Chamfers Angle/Tolerance | 45° ±15°, typical |
| Coating Code | AR.33 | Focal LengthTolerance | ±1 % |
| Damage Threshold | 12 J/cm2, 10 ns pulses, 10 Hz at 1064 nm | Diameter Tolerance | +0/-0.1 mm |
| Surface Quality | 20-10 scratch-dig | Clear Aperture | ≥central 90% ofdiameter |
| Surface Flatness | λ/8 | OEM/ODM | Accepted |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — listed as “Products Code”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “20-10 Scratch-Dig or Custom”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “V-Coat Multilayer”; list the band and reflectance or transmission target.
