Application: Furniture, Home Appliance, Electronics & Instruments, Auto Manufacturing, Daily Products.
Overview

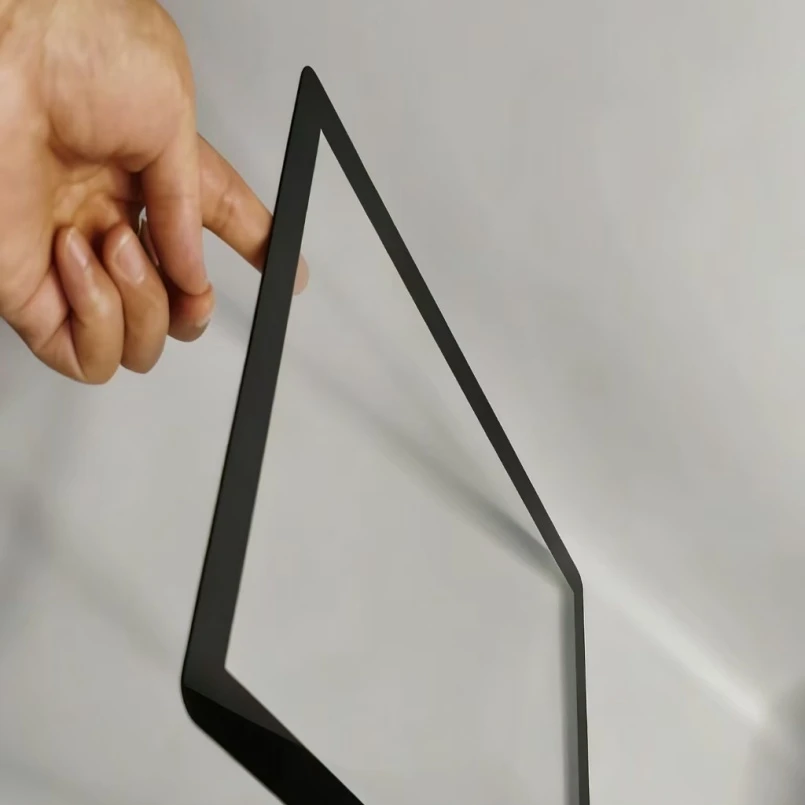

Precision Engineered Touch Sensor Glass for Automotive Displays with Anti-Oil Treatment is a CCD / CMOS sensor cover glass made from AG Glass. Listed geometry: flat shape. Flatness High Class. Listed for Furniture, Home Appliance, Electronics & Instruments, Auto Manufacturing and Daily Products applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Shape | Flat |
|---|---|
| Flatness | High Class |
| Usage | Furniture, Home Appliance, Electronics & Instruments, Auto Manufacturing, Daily Products |
| Appearance | Flat Tempered |
| Standard | GB15763.2-2005 |
| Steel Degree | Tempered Glass |
| Thickness of Flat Tempered Glass | 1.2mm |
| Thickness of Curve Tempered Glass | 2.5mm |
| Fragment State | Ⅲ |
| Technics | Chemical Tempered |
| Glass Type | AG Glass |
| Edging | Square Round Customized |
| Safety | Safe |
| Customize | Customized |
| Supplier | Tai 'an Zhongxin Glass Technology Co., Ltd |
What to specify when you request a quote
- Material and grade — name the glass or crystal grade (for example JGS1, N-BK7, Borofloat 33, sapphire) because it fixes the transmission band and thermal limits.
- Diameter or outline — give the nominal size and the tolerance you can accept.
- Thickness — listed as “1.2mm”; state nominal thickness and tolerance; thinner windows need tighter flatness control.
- Surface quality and flatness — listed as “High Class”; quote scratch-dig and flatness over the clear aperture, not the whole part.
- Coating — list the wavelength band and the maximum reflectance per surface for any AR coating.
- Clear aperture and edges — define the usable aperture and the edge chamfer.
Engineering guides for this part
For material grades and coating options, see Infrared Window Glass: Material Options for Optical Sensors & Parts. How parts like this are machined and finished is covered in Precision AR Coating Process for Optical Glass Windows. For an application example, read Bulk Ordering Glass Windows for Robotic Vacuum Optical Sensors. Before sending a drawing, check Specifying Coatings for Custom Glass Windows and Substrates. A related standard product is CCD Optical Screening Glass Plate.
