Product type: Dove Prism. Application: Beam Dispersion, Beam Split. Model: TZ-004.
Overview

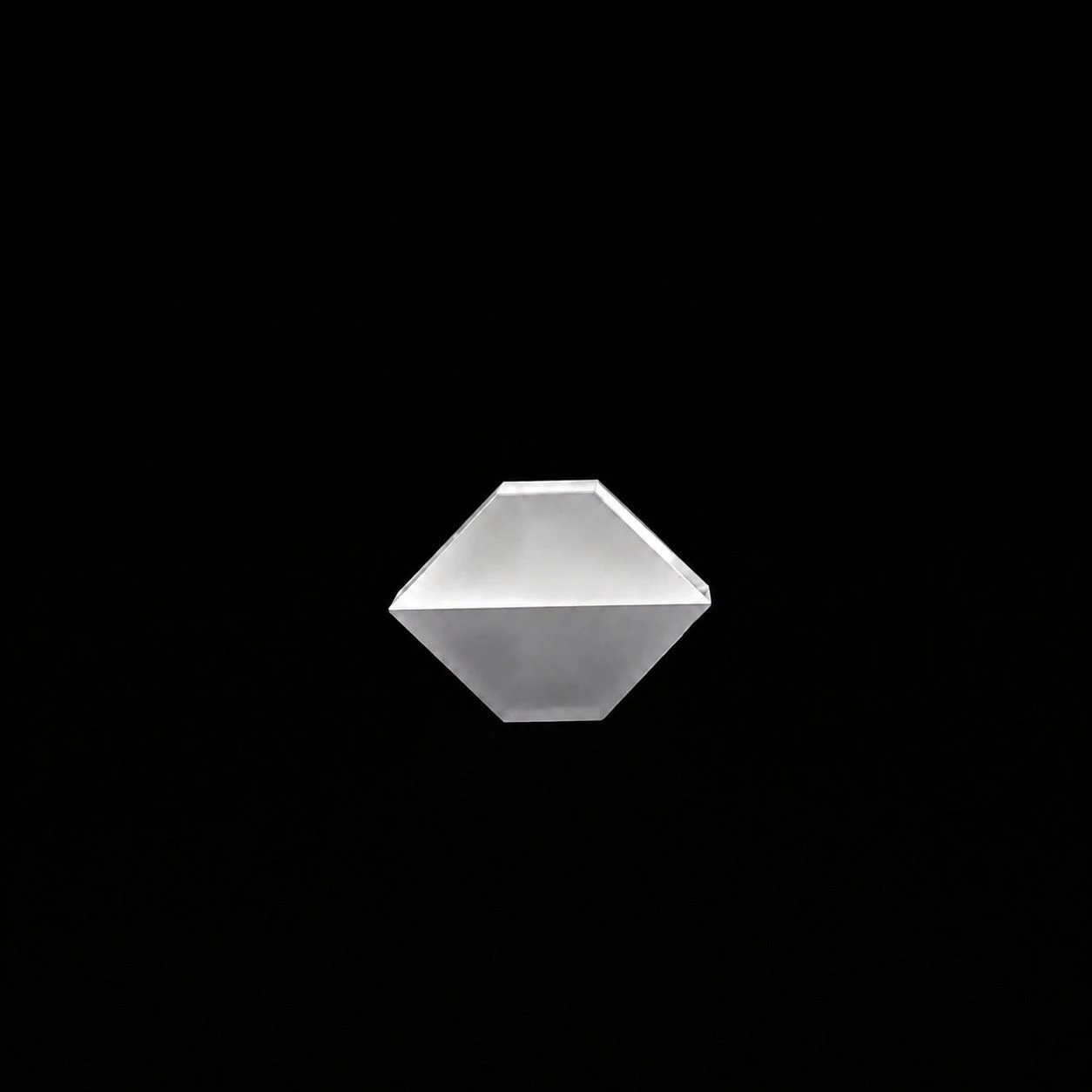

The Precision Optical Glass Dove Prism Custom Prism for Optical Equipment is supplied as an optical prism made from Optical Glass / H-K9l (K9 Glass). Listed geometry: trapezoid shape. Typical applications: Imaging, Beam Rotation and Optical Instruments. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass / H-K9l (K9 Glass) |
|---|---|
| Type | Dove Prism |
| Shape | Trapezoid |
| Application | Imaging / Beam Rotation / Optical Instruments |
| Usage | Beam Dispersion, Beam Split |
| Model NO. | TZ-004 |
| Custom Services | OEM / ODM Supported |
| Dimensional Precision | Customized |
| Product Type | Optical Prism / Beamsplitter Prism |
| Angle Tolerance | Customized |
| Product Category | Optical Components |
| Functions | Light Path Bending/Deflection |
| Supplier | Suzhou Vangta Electronic Technology Co., Ltd. |
Technical data
| Origin | Jiangsu, China | Product Name | Cube Beamsplitter Prism |
| Brand | Vantga | Product Type | Optical Prism / Beamsplitter Prism |
| Model No. | Pr-01 | Dimensional Accuracy | Customized |
| Customization Service | OEM / ODM Supported | Wavelength Range | 400–700nm (Custom Available) |
| Material | Optical Glass / H-K9L (K9 Glass) | Application | Laser Optical System, Machine Vision, Optical Instruments |
What to specify when you request a quote
- Material — listed as “Optical Glass / H-K9l (K9 Glass)”; name the glass or crystal.
- Geometry — listed as “Customized”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
Engineering guides for this part
How parts like this are machined and finished is covered in Flat Glass Polishing Process for Precision Substrates. Before sending a drawing, check Design Guide for Holes, Slots, and Edges in Custom Glass Parts.
FAQ
What is the Precision Optical Glass Dove Prism Custom Prism for Optical Equipment made of? expand_more
It is listed as Optical Glass / H-K9l (K9 Glass). Other grades can be quoted if your application needs different transmission, thermal or chemical properties.
Where is this optical prism used? expand_more
Listed applications: Imaging, Beam Rotation and Optical Instruments.
What should I include in a quote request? expand_more
Include material, geometry, surface figure, centring and edges and coating, plus quantity and a drawing if the part is custom.
