Product type: Color Filter. Application: Lighting, Medical, Optical, Photography. Model: TT Filter 50.
Overview

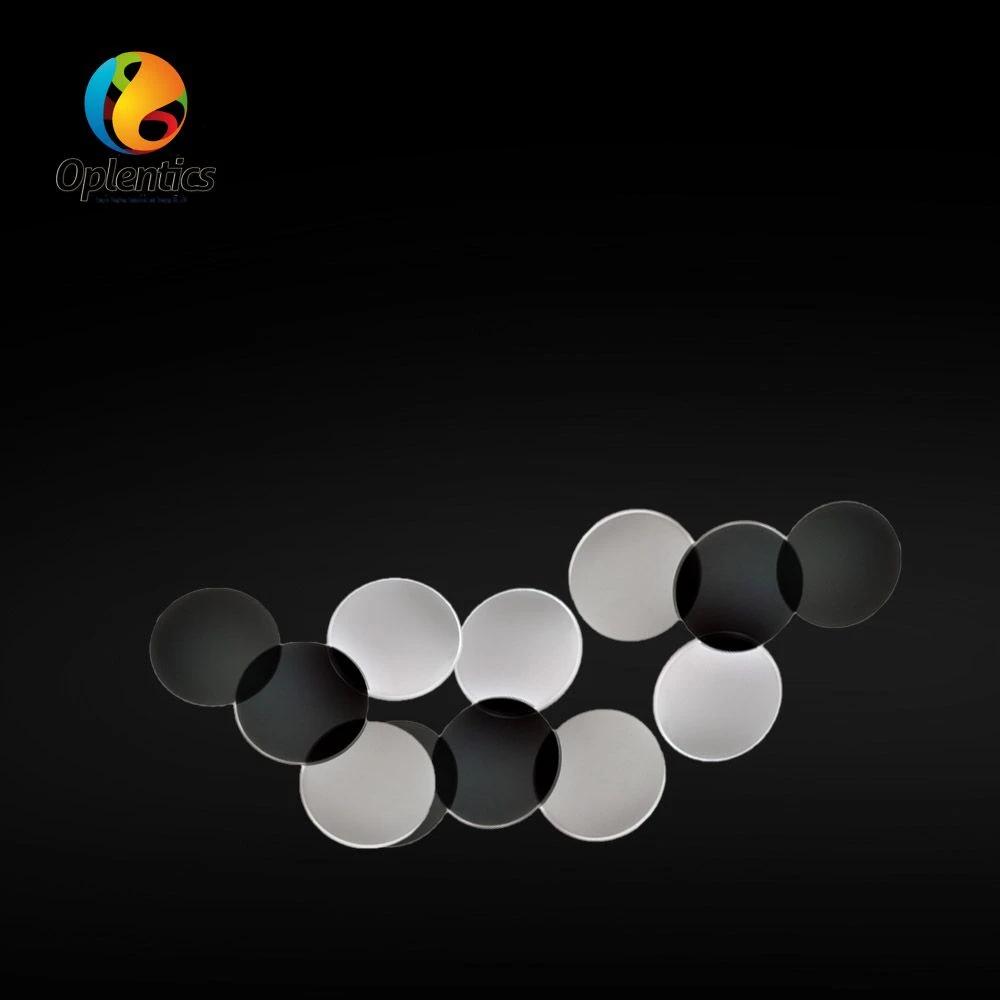

Premium 25mm and 50mm B270 Apodizing Filters for Optics is an optical filter made from Glass. Listed geometry: thickness 1mm-2mm. Surface quality as Required. Typical applications: Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Color Filter |
| Shape | Customized |
| Surface Quality | as Required |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | TT Filter 50 |
| Color | Black |
| Principle | Neutral-type Filter |
| Angle of incidence | 0° |
| Polished | Yes |
| Thickness Range | 1mm-2mm |
| Supplier | Tianjin Tengteng Optoelectronic Technology Co., Ltd. |
Technical data
| Product name | Apodizing filters |
|---|---|
| Description | Apodizing filters are used to create an even illumination profile in an optical system. |
What to specify when you request a quote
- Spectral target — state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “0°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “1mm-2mm”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — listed as “as Required”; quote scratch-dig for imaging paths.
Engineering guides for this part
For material grades and coating options, see Color Filter Glass Materials for High-Performance Optical Screening and Imaging. A related standard product is Optical Glass Colour Filter.
FAQ
What is the Premium 25mm and 50mm B270 Apodizing Filters for Optics made of? expand_more
It is listed as Glass. Other grades can be quoted if your application needs different transmission, thermal or chemical properties.
What sizes and thicknesses are available? expand_more
The listing gives thickness 1mm-2mm. Custom outlines and thicknesses are made to drawing; state the tolerance you need.
Where is this optical filter used? expand_more
Listed applications: Lighting, Medical, Optical and Photography.
What should I include in a quote request? expand_more
Include spectral target, blocking, angle of incidence, size and thickness and substrate, plus quantity and a drawing if the part is custom.
