Product type: Color Filter. Application: Lighting, Medical, Optical. Model: AT-61042.
Overview

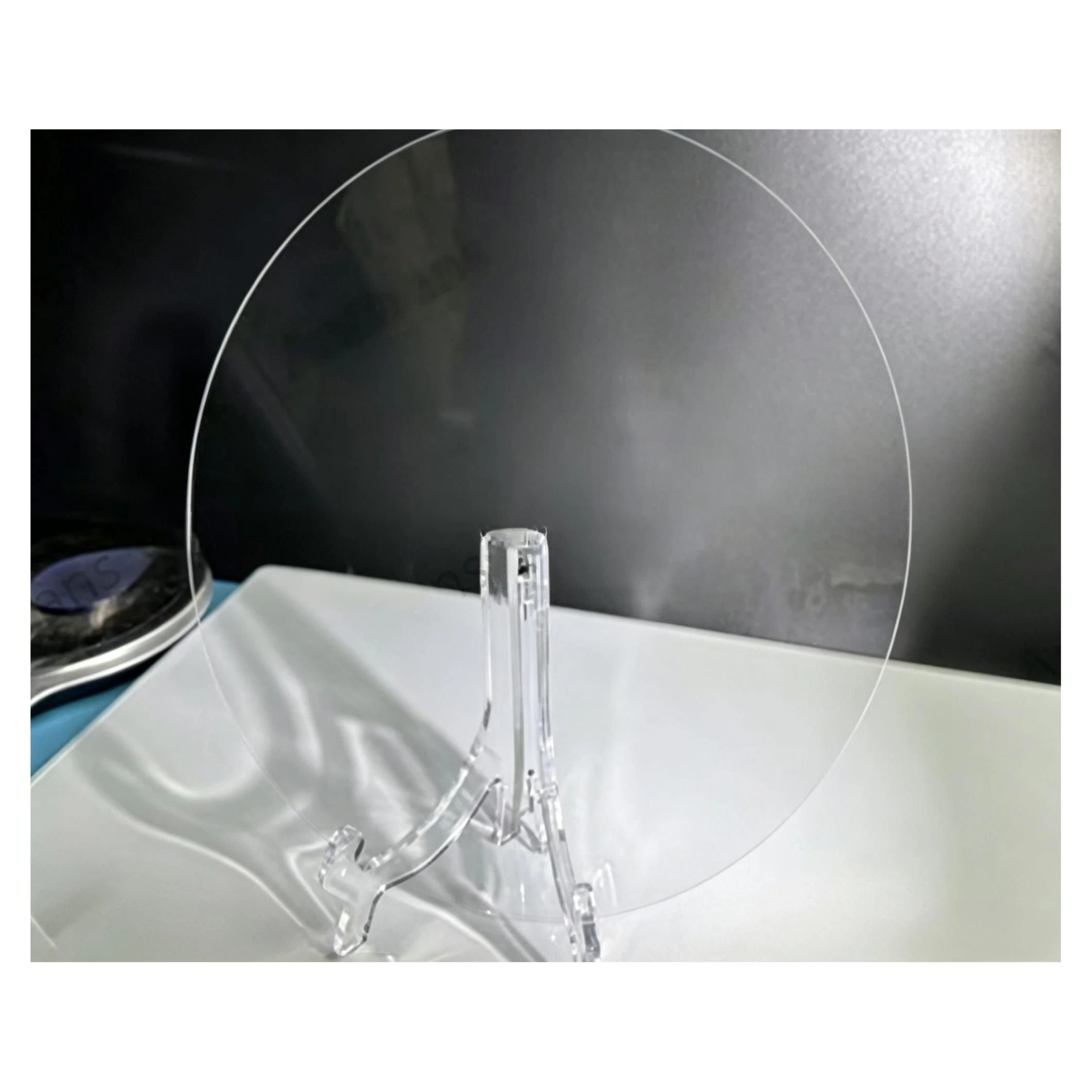

Premium 8-Inch Sapphire Glass Lenses for Ultimate Clarity: an optical lens made from Glass. Listed geometry: diameter 200.00±0.2mm, thickness 5mm-10mm. It is used in Lighting, Medical and Optical. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Color Filter |
| Shape | Customized |
| Diameter | 200.00±0.2mm |
| Usage | Lighting, Medical, Optical |
| Model NO. | AT-61042 |
| Thickness Range | 5mm-10mm |
| Principle | Selective Absorption Filter |
| Angle of incidence | 45° |
| Laser Diodes | Sapphire's high optical transparency and stability make it an ideal base material for laser diodes, ensuring efficient and stable light output from the lasers. |
| Orientation | C-plane (0001) offset from M-axis by 0.2°±0.1° |
| Primary Side Flat | 57.5±2.5mm |
| Front Surface Roughness | A-axis ±0.1° |
| Back Surface Roughness | 0.8~1.2μm (or double-sided polished, both sides Ra<0.3nm) |
| TTV (Total Thickness Variation) | <20um |
| Bow | -30~0um |
| Warp | <20um |
| Packaging | Vacuum-sealed container, filled with nitrogen in a Class 100 environment |
| Supplier | Shanghai Anttrans Technology Co., Ltd |
Technical data
| Material: | Single-crystal Al2O 3(99.999%) |
|---|---|
| Orientation: | C-plane (0001) offset from M-axis by 0.2°±0.1° |
| Diameter: | 200.00±0.2mm |
| Thickness | 1300±25μm, 750±25μm, or 1000±25μm |
| Primary Side Flat: | 57.5±2.5mm |
| OF Orientation Flat | A-axis ±0.1° |
| Front Surface Roughness: | A-axis ±0.1° |
| Back Surface Roughness: | 0.8~1.2μm (or double-sided polished, both sides Ra<0.3nm) |
| TTV (Total Thickness Variation): | <20um |
| Bow: | -30~0um |
| Warp: | <20um |
| Packaging: | Vacuum-sealed container, filled with nitrogen in a Class 100 environment |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — listed as “200.00±0.2mm”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “A-axis ±0.1°”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
