Application: Furniture, Home Appliance, Electronics & Instruments, Auto Manufacturing, Daily Products, Display Protector Glass. Model: TR0583.
Overview

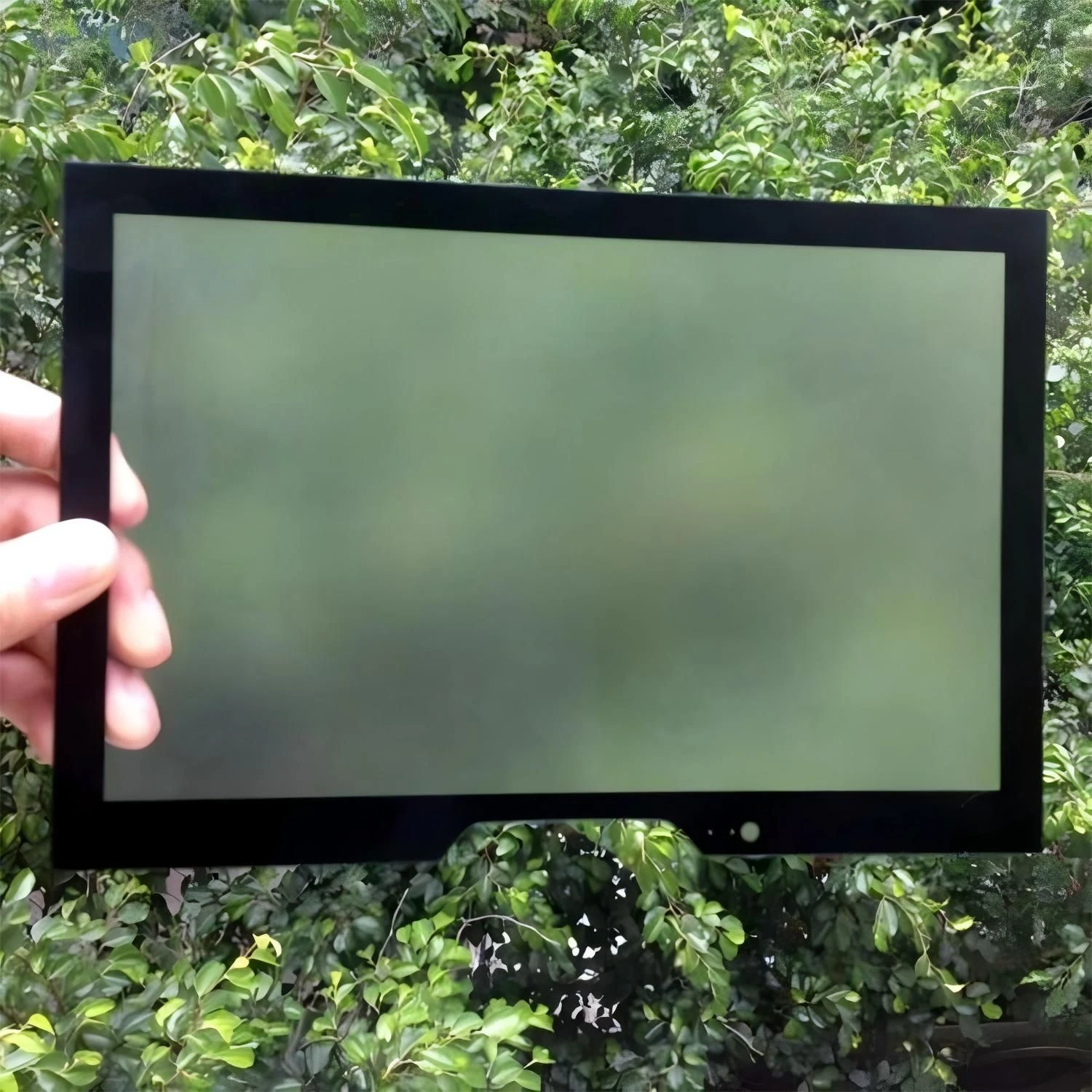

Premium Anti-Reflective Tempered Glass Protector for Industrial Displays: a display / touchscreen cover glass made from Aluminosilicate Glass. Listed geometry: flat shape. Flatness High Class. Listed for Furniture, Home Appliance, Electronics & Instruments, Auto Manufacturing and Daily Products applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Shape | Flat |
|---|---|
| Flatness | High Class |
| Usage | Furniture, Home Appliance, Electronics & Instruments, Auto Manufacturing, Daily Products, Display Protector Glass |
| Model NO. | TR0583 |
| Appearance | Flat Tempered |
| Standard | GB15763.2-2005 |
| Steel Degree | Tempered Glass |
| Thickness of Flat Tempered Glass | 3.4MM |
| Thickness of Curve Tempered Glass | 2.0mm |
| Fragment State | Ⅱ |
| Technics | Chemical Tempered |
| Glass Type | Aluminosilicate Glass |
| Maximium Size | 85 Inch |
| Hardness | ≥7 H |
| Printing Color | Black, White, Silver Others |
| Process flow | tempering ,drilling, edging, water-jet cutting, silk screen printing , coating |
| Surface treatment | AG or AR or AF process |
| Where to use | household panel, touch screen panel, switch panel, display billboard , screen protector |
| Supplier | Jiangyin Tairong Photoelectricity Technology Ltd |
Technical data
| Thickness(mm) | 0.50 /0.7/0.8 /1.1 /1.3 /1.5/ 1.8 /2 /3.0 |
|---|---|
| Process flow : | tempering ,drilling, edging, water-jet cutting, silk screen printing , coating |
| Surface treatment: | AG or AR or AF process |
| Shape: | according to client desgin or drawing |
| MOQ | 500Pieces |
| Where to use : | household panel, touch screen panel, switch panel, display billboard , screen protector |
What to specify when you request a quote
- Glass type and thickness — listed as “3.4MM”; name the glass (soda-lime, aluminosilicate, borosilicate) and thickness.
- Strengthening — listed as “3.4MM”; state thermal tempering or chemical strengthening and the required surface compression or impact rating.
- Printing and coatings — listed as “Furniture, Home Appliance, Electronics & Instruments, Auto Manufacturing, Daily Products, Display Protector Glass”; list silk-screen colours, windows, and any AR / AG / AF coating.
- Outline and edges — listed as “Flat”; send a drawing with cut-outs, holes and edge finish.
- Optical requirements — give transmission, haze or gloss targets for the viewing area.
