Application: Lighting, Medical, Optical, Photography. Model: RAY-LH046#.
Overview

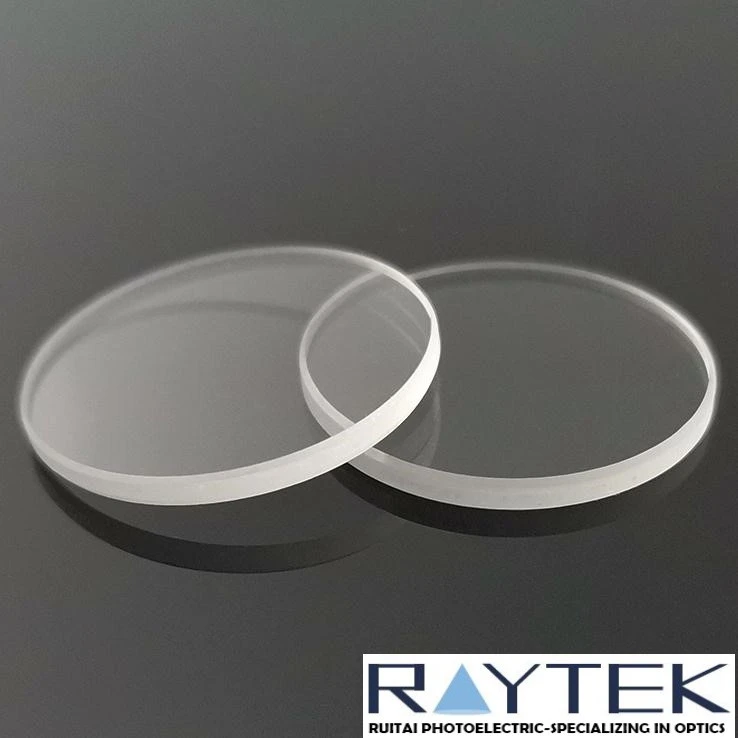

The Premium Clarity Quartz Glass Sheet for Exceptional Durability is supplied as a precision glass plate / sheet in Optical Glass (Borofloat 33 or Equivalent substrate). Optical / electrical data: wavelength 488-694 Nm/700-950nm. Coating: Dielectric Coating; surface quality 40-20 Scratch-Dig or Custom Manufacturing; flatness Lambda/10 at 632.8nm with Power Removed. It is used in Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Substrate | Borofloat 33 or Equivalent |
| Shape | Customized |
| Wavelength Range | 488-694 Nm/700-950nm |
| Surface Quality | 40-20 Scratch-Dig or Custom Manufacturing |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | RAY-LH046# |
| Lenses Color | Customized |
| Surface Flatness | Lambda/10 at 632.8nm with Power Removed |
| Coating Type | Dielectric Coating |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
Technical data
| Size (diameter) | 0.2-300mm |
|---|---|
| Thickness | 0.1-30mm or customized |
| Dimensional tolerance | +/-0.02mm |
| Finish | 20/10 or better |
| Clear aperture | >85%, >90% |
| Surface | λ/10 |
| Parallelism | +/-30'' |
| Chamfer | 0.1~0.3mm x 45° |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or quartz grade.
- Outline and thickness — give outline, thickness and tolerances.
- Holes, slots and features — listed as “Customized”; dimension every hole and its position tolerance on the drawing.
- Edges — state edge finish and chamfer.
- Surface — listed as “40-20 Scratch-Dig or Custom Manufacturing”; state polish and flatness where they matter.
