Product type: Plano-Concave Lens. Application: Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc. Model: RAY-XS003#.
Overview

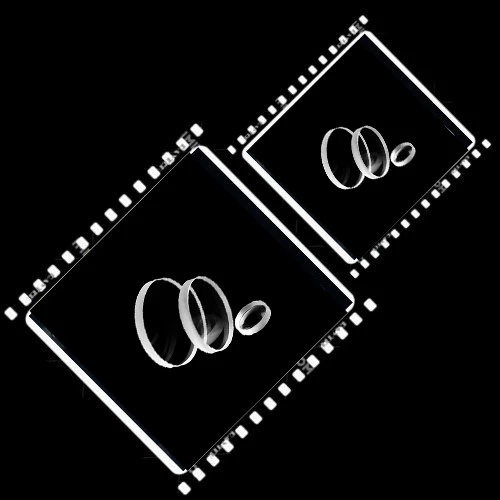

The Premium Fused Silica Plano-Concave Lens for Imaging Precision is supplied as an optical lens made from Optical Glass. Listed geometry: single-lens shape. Optical / electrical data: transmittance Central 90% of Diameter. Coating: Ar.14, Ar.16, Ar.18, Ar.33 Coated. Typical applications: Lighting, Medical, Optical, Photography and Laser. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Plano-Concave Lens |
| Shape | Single-lens |
| Transmittance | Central 90% of Diameter |
| Coating | Ar.14, Ar.16, Ar.18, Ar.33 Coated |
| Usage | Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc |
| Model NO. | RAY-XS003# |
| Lenses Color | Clear |
| Products Name | N-BK7 Plano-Concave Lens |
| Tech Specification | Item |
| Main Cooperation Materials Manufacturers | CORNING, OHARA, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
Technical data
| Item | Description |
|---|---|
| Material | Optical glass K9, Quartz, Fused quartz, BK7, sapphire |
| Surface Quality | 10/5~80/5 |
| size | 6mm-300mm |
| Surface Accuracy, Irregularity | λ/4 |
| Centration | ≤3 arc min |
| Chamfers | 0-0.8 mm face width |
| Chamfers Angle Tolerance | 45° ±15°, typical |
| Focal Length | ±5mm-1000mm±1% |
| Clear Aperture | ≥central 90% of diameter |
| Effective Focal Length(EFL) | From -25mm to -200mm |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Ar.14, Ar.16, Ar.18, Ar.33 Coated”; list the band and reflectance or transmission target.
