Product type: Color Filter. Application: Lighting, Medical, Optical, Photography. Model: TT Waveplate-10.
Overview

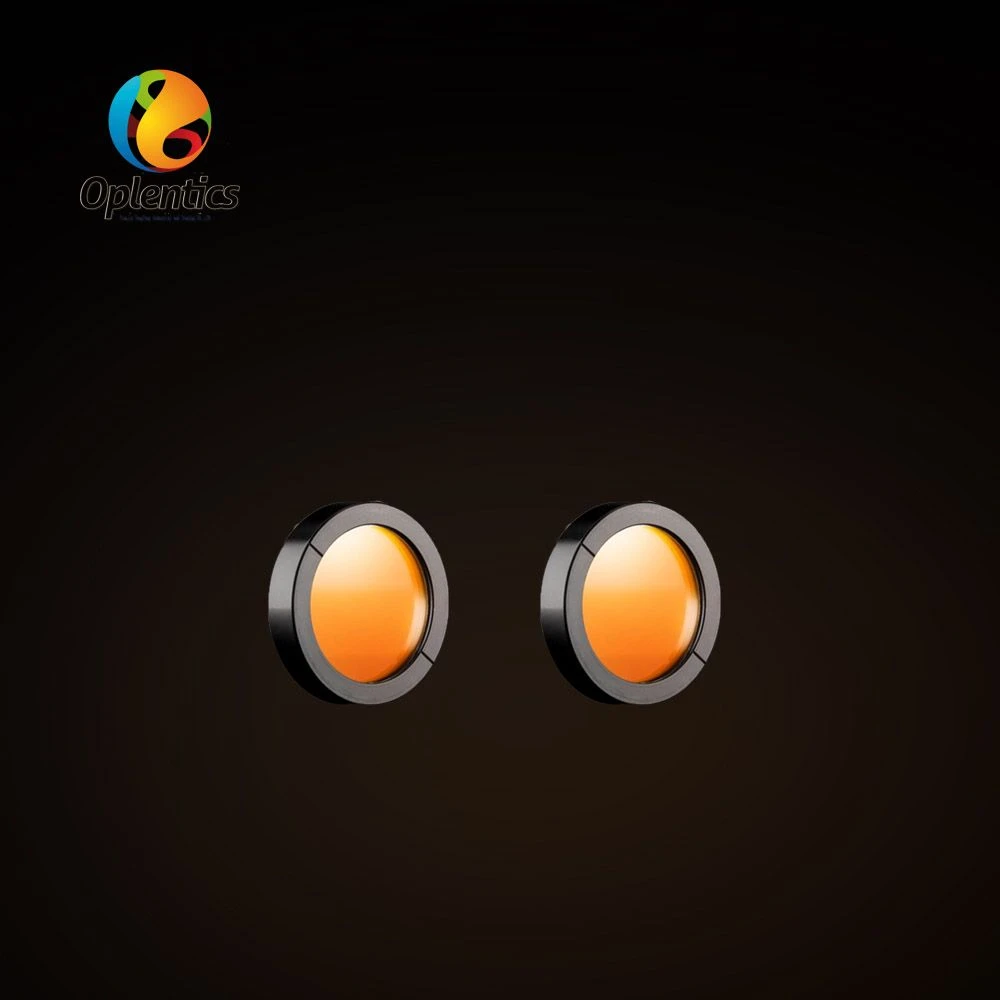

Premium Mounted Optical Quartz Waveplate for Precision Imaging is a waveplate / polariser / grating made from Glass. Listed geometry: thickness as Required. Surface quality as Required. Listed for Lighting, Medical, Optical and Photography applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Color Filter |
| Shape | Customized |
| Thickness | as Required |
| Surface Quality | as Required |
| Usage | Lighting, Medical, Optical, Photography |
| Thickness Range | 1mm-2mm |
| Model NO. | TT Waveplate-10 |
| Color | Red |
| Principle | Neutral-type Filter |
| Angle of incidence | 0° |
| Polished | Yes |
| Supplier | Tianjin Tengteng Optoelectronic Technology Co., Ltd. |
Technical data
| Product Name | Quartz Waveplates |
|---|---|
| Material | Quartz |
| Description | Available in multiple order and zero order, Quartz Waveplates (Retarders) are ideal for a range of applications. |
| Size | Dia 1mm to 300mm |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — listed as “0°”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “as Required”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
Engineering guides for this part
For material grades and coating options, see Color Filter Glass Materials for High-Performance Optical Screening and Imaging. A related standard product is Optical Glass Colour Filter.
FAQ
What is the Premium Mounted Optical Quartz Waveplate for Precision Imaging made of? expand_more
It is listed as Glass. Other grades can be quoted if your application needs different transmission, thermal or chemical properties.
What sizes and thicknesses are available? expand_more
The listing gives thickness as Required. Custom outlines and thicknesses are made to drawing; state the tolerance you need.
Where is this waveplate / polariser / grating used? expand_more
Listed applications: Lighting, Medical, Optical and Photography.
What should I include in a quote request? expand_more
Include material, geometry, surface figure, centring and edges and coating, plus quantity and a drawing if the part is custom.
