Product type: Cylindrical Lenses. Application: Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc. Model: RAY-XS009#.
Overview

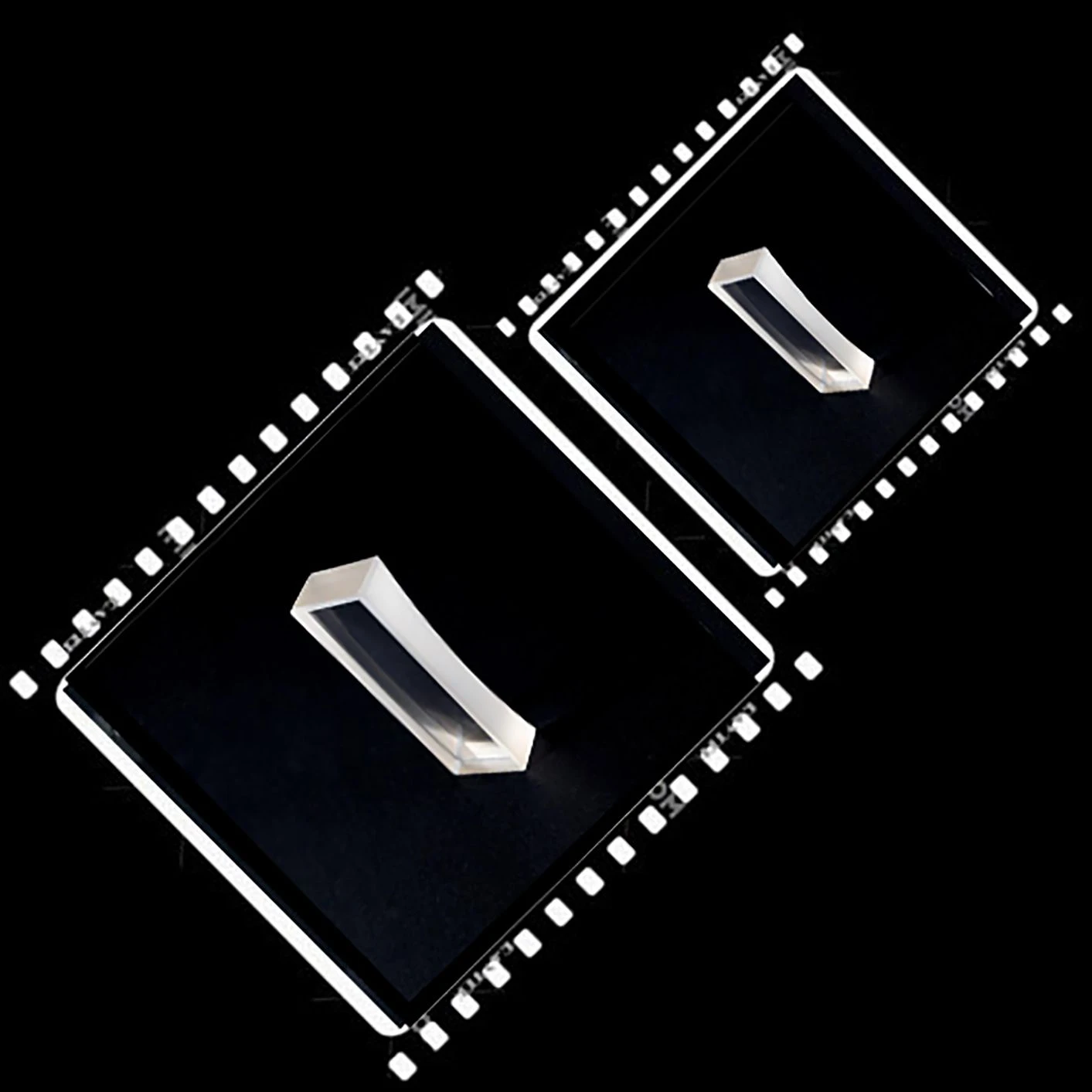

Premium N-Bk7 Optical Glass Lens for High Clarity Imaging is an optical lens made from Optical Glass. Listed geometry: single-lens shape. Optical / electrical data: transmittance Central 90% of Diameter. Coating: Ar.14, Ar.16, Ar.18, Ar.33 Coated. Typical applications: Lighting, Medical, Optical, Photography and Laser. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Cylindrical Lenses |
| Shape | Single-lens |
| Transmittance | Central 90% of Diameter |
| Coating | Ar.14, Ar.16, Ar.18, Ar.33 Coated |
| Usage | Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc |
| Model NO. | RAY-XS009# |
| Lenses Color | Clear |
| Lens Substrates | Grade A N-BK7 |
| Coating Code | Coating Type |
| Main Characters | 1).High performance 40-20 scratch-dig N-BK7 substrates |
| Main Optical Tech Specification | Tech Data |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
Technical data
| Coating Code: | Coating Type | Wavelength Range |
| AR.14 | Visible Multilayer | 430-700 nm |
| AR.16 | NIR Multilayer | 650-1000 nm |
| AR.18 | IR Multilayer | 1000-1550 nm |
| AR.33 | Laser Line V-Coat Multilayer | 1064 nm |
| – | Uncoated | – |
| Tech Data | Description |
|---|---|
| Lens Shape | Plano-Concave Cylindrical Concave or Double Concave |
| Material | Grade A N-BK7 |
| Surface Quality | 40-20 scratch-dig |
| Surface Flatness | λ/2-λ/4 |
| Surface Accuracy, Irregularity | λ/2-λ/4 |
| Surface Accuracy, Power | 1.5 λ |
| Centration | – |
| Chamfers | 0.5 mm face width |
| Chamfers Angle Tolerance | 45°, typical |
| Focal Length Tolerance | ±2.0% |
| Clear Aperture | ≥central 80% of diameter |
| Effective Focal Length(EFL) | From -6.4mm to 200mm |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Ar.14, Ar.16, Ar.18, Ar.33 Coated”; list the band and reflectance or transmission target.
