Product type: Right Angle Prism. Application: Lighting, Medical, Optical, Photography. Model: RAY-LH033#.
Overview

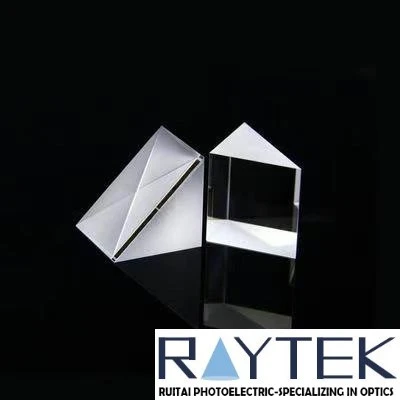

The Premium N-Bk7 Right Angle Prism for Enhanced Optical Clarity is supplied as an optical prism made from Optical Glass. Listed geometry: size 0.1×0.1×0.1 mm~100×100×100mm, right angle shape. Optical / electrical data: wavelength 488-694 Nm/700-950nm. Coating: Dielectric Coating; surface quality 40-20 Scratch-Dig or Custom Manufacturing; flatness Lambda/10 at 632.8nm with Power Removed. Typical applications: Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Right Angle Prism |
| Shape | Right Angle |
| Size | 0.1×0.1×0.1 mm~100×100×100mm |
| Wavelength Range | 488-694 Nm/700-950nm |
| Surface Quality | 40-20 Scratch-Dig or Custom Manufacturing |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | RAY-LH033# |
| Lenses Color | Clear |
| Surface Flatness | Lambda/10 at 632.8nm with Power Removed |
| Coating Type | Dielectric Coating |
| Dimensional tolerance | ±0.1mm/±0.05mm |
| Angle Tolerance | ±1'/±30" |
| Effective aperture | 85% (small size products); 90% (small size products); |
| Tower difference | <=6'/<=1' |
| Sagging | <=12'/<=1' |
| Chamfer (face width × 45°) | protective chamfer or according to customer requirements |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — listed as “0.1×0.1×0.1 mm~100×100×100mm”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “40-20 Scratch-Dig or Custom Manufacturing”; quote surface figure (λ) and scratch-dig.
- Centring and edges — listed as “protective chamfer or according to customer requirements”; state centration and edge chamfer.
- Coating — listed as “Dielectric Coating”; list the band and reflectance or transmission target.
