Product type: Color Filter. Application: Lighting, Medical, Optical, Photography. Model: TT filter 17.
Overview

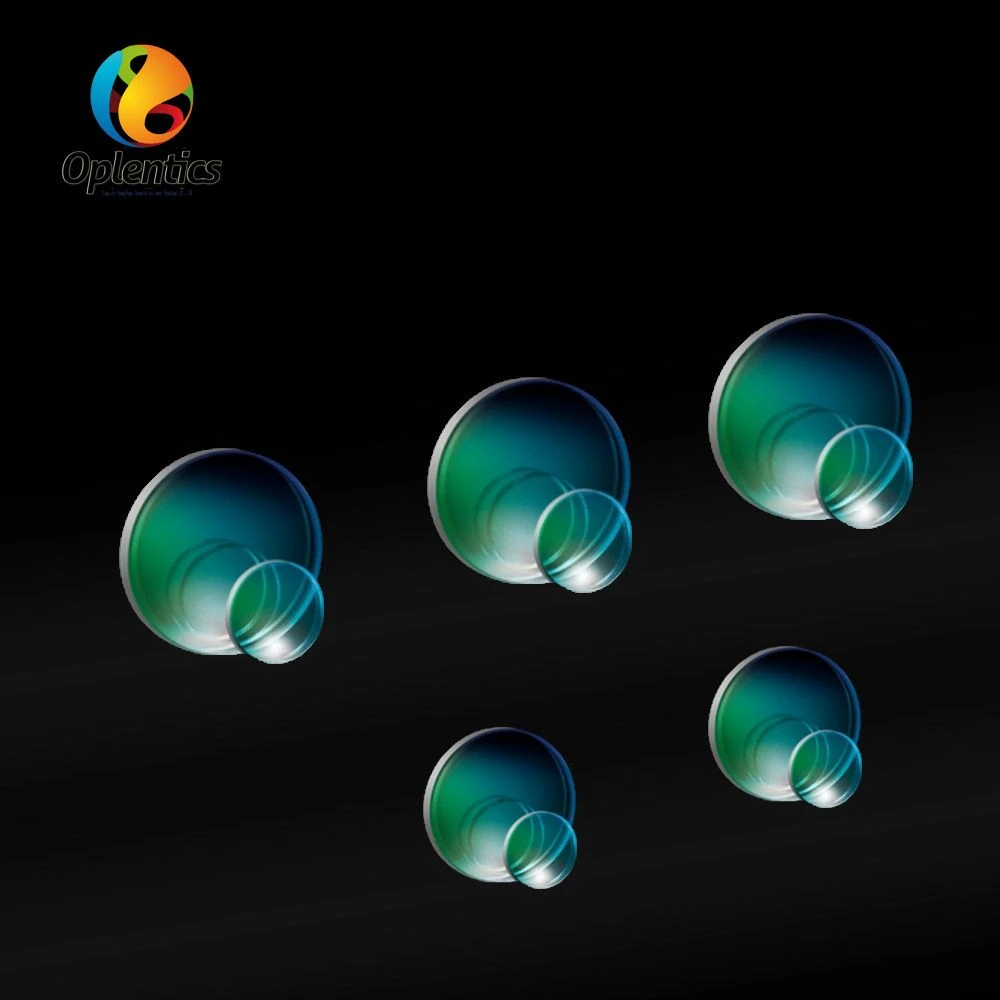

Premium Optical Glass Longpass Infrared Filter for Cameras is a longpass / shortpass filter made from Glass. Listed geometry: thickness as Required. Surface quality 40-20 or Better. Listed for Lighting, Medical, Optical and Photography applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Color Filter |
| Shape | Customized |
| Thickness | as Required |
| Surface Quality | 40-20 or Better |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | TT filter 17 |
| Thickness Range | 1mm-2mm |
| Color | Green |
| Principle | Cut-off Filter |
| Angle of incidence | 0° |
| Cut-on Tolerance | ±2% |
| Clear Aperature | >90% |
| Supplier | Tianjin Tengteng Optoelectronic Technology Co., Ltd. |
Technical data
| Name | Optical Glass Longpass IR Filter for Camera |
|---|---|
| Description | 1.Longpass Filters, also known as Longpass Edge Filters, are designed to transmit wavelengths greater than the cut-on wavelength of the filter. |
| 2.Longpass Filters are commonly used to isolate portions of the spectrum in a variety of industrial or life sciences applications including microscopy or fluorescence instrumentation. | |
| Material | UV Grade Fused Silica |
What to specify when you request a quote
- Spectral target — listed as “±2%”; state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “0°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “as Required”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — listed as “40-20 or Better”; quote scratch-dig for imaging paths.
