Product type: Color Filter. Application: Lighting, Medical, Optical, Photography. Model: TT Filter 341.
Overview

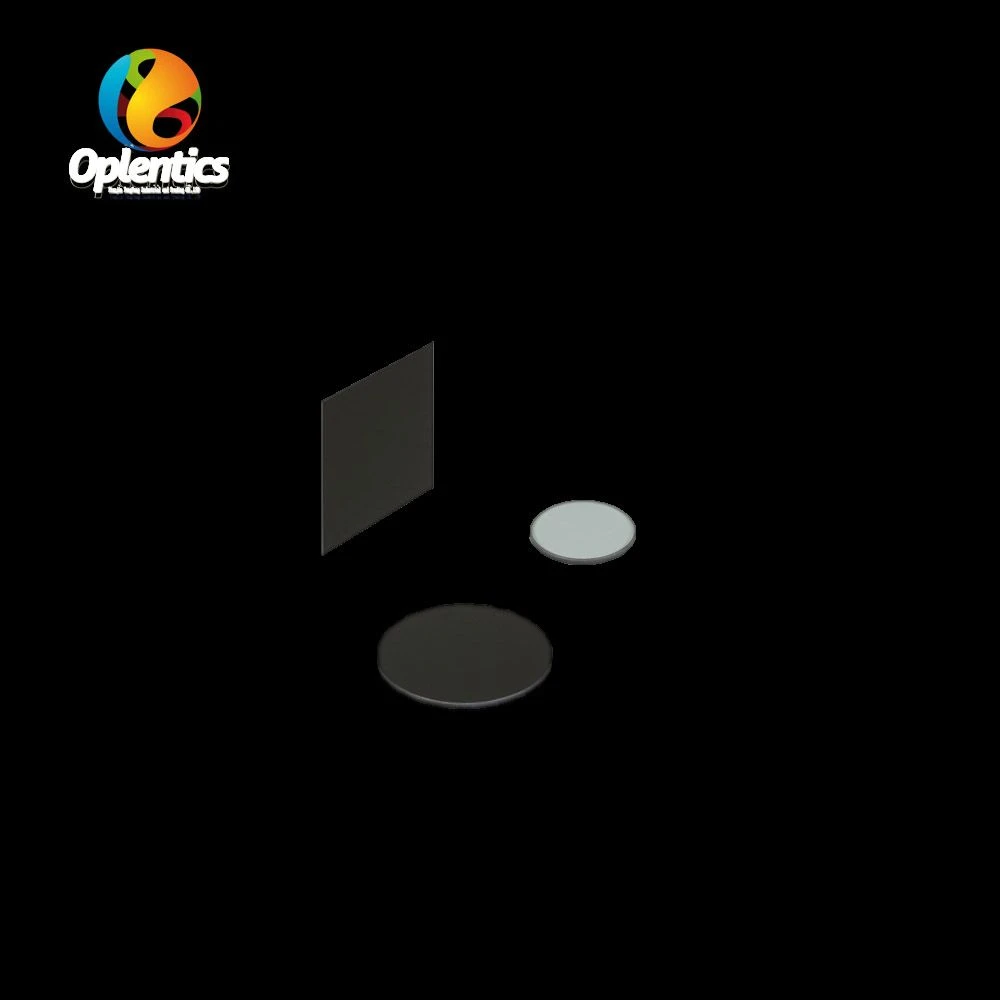

The Premium Optical Glass Neutral Density Camera Lens Filter is supplied as a neutral density filter made from Glass. Listed geometry: thickness as Required. Surface quality as Required. Typical applications: Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Color Filter |
| Shape | Customized |
| Thickness | as Required |
| Surface Quality | as Required |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | TT Filter 341 |
| Thickness Range | 1mm-2mm |
| Color | Red |
| Principle | Neutral-type Filter |
| Angle of incidence | 0° |
| Polished | Yes |
| Supplier | Tianjin Tengteng Optoelectronic Technology Co., Ltd. |
Technical data
| 1.Material | BK7 Glass, Fused Silica or Color glass |
|---|---|
| 2.Dimensional tolerances | 0/-0.1mm |
| 3.Clear aperture | >90% |
| 5.Parallelism | 1 Arc minute |
| 6.Surface Quality | US Standard 40-20,ISO Standard 3X0.25 |
| 7.Edge Chip | <0.1mm |
| 8.Bevel | Based on clients' requests |
| 9.Coating | AR, HR, PR or based on clients' requests |
What to specify when you request a quote
- Spectral target — state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “0°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “as Required”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — listed as “as Required”; quote scratch-dig for imaging paths.
