Product type: Quartz Rod. Application: Rubber, Plastic, Chemical, Construction, Metallurgy, Ceramic, Casting, Glass. Model: OL-0138.
Overview

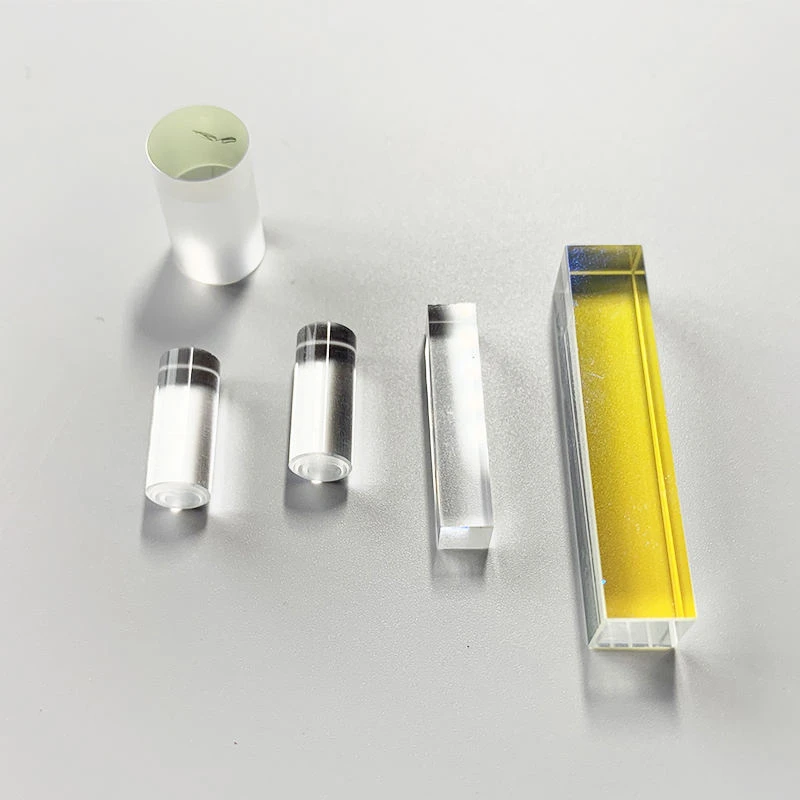

Premium Optical Glass Solar Prism Light Pipe Lens Rods is an optical prism made from 99.99% Pure Quartz. Listed geometry: diameter Customers' Requirements. Typical applications: Rubber, Plastic, Chemical, Construction and Metallurgy. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | 99.99% Pure Quartz |
|---|---|
| Type | Quartz Rod |
| Diameter | Customers' Requirements |
| Application | Rubber, Plastic, Chemical, Construction, Metallurgy, Ceramic, Casting, Glass |
| Model NO. | OL-0138 |
| Product Name | Optical Fused Silica Quartz Glass Rod |
| Surface | Polishing |
| Supplier | C-Laser (Taicang) Material Technology Co., Ltd. |
Technical data
| Product Name | High Temperature Clear Transparent Fused Silica Quartz Glass Rod |
|---|---|
| Material | 99.99% Pure Quartz Crystal |
| Color | Transparent |
| Size | 1. Diameter: 1.5-450mm. |
What to specify when you request a quote
- Material — listed as “99.99% Pure Quartz”; name the glass or crystal.
- Geometry — listed as “Customers' Requirements”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “Polishing”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
Engineering guides for this part
How parts like this are machined and finished is covered in Optical Glass Polishing for High Clarity Surfaces. Before sending a drawing, check Design Guide for Holes, Slots, and Edges in Custom Glass Parts.
FAQ
What is the Premium Optical Glass Solar Prism Light Pipe Lens Rods made of? expand_more
It is listed as 99.99% Pure Quartz. Other grades can be quoted if your application needs different transmission, thermal or chemical properties.
What sizes and thicknesses are available? expand_more
The listing gives diameter Customers' Requirements. Custom outlines and thicknesses are made to drawing; state the tolerance you need.
Where is this optical prism used? expand_more
Listed applications: Rubber, Plastic, Chemical, Construction, Metallurgy, Ceramic, Casting and Glass.
What should I include in a quote request? expand_more
Include material, geometry, surface figure, centring and edges and coating, plus quantity and a drawing if the part is custom.
