Product type: Optical Prism / Light Guide. Application: Light Guide. Model: Vd-05.
Overview

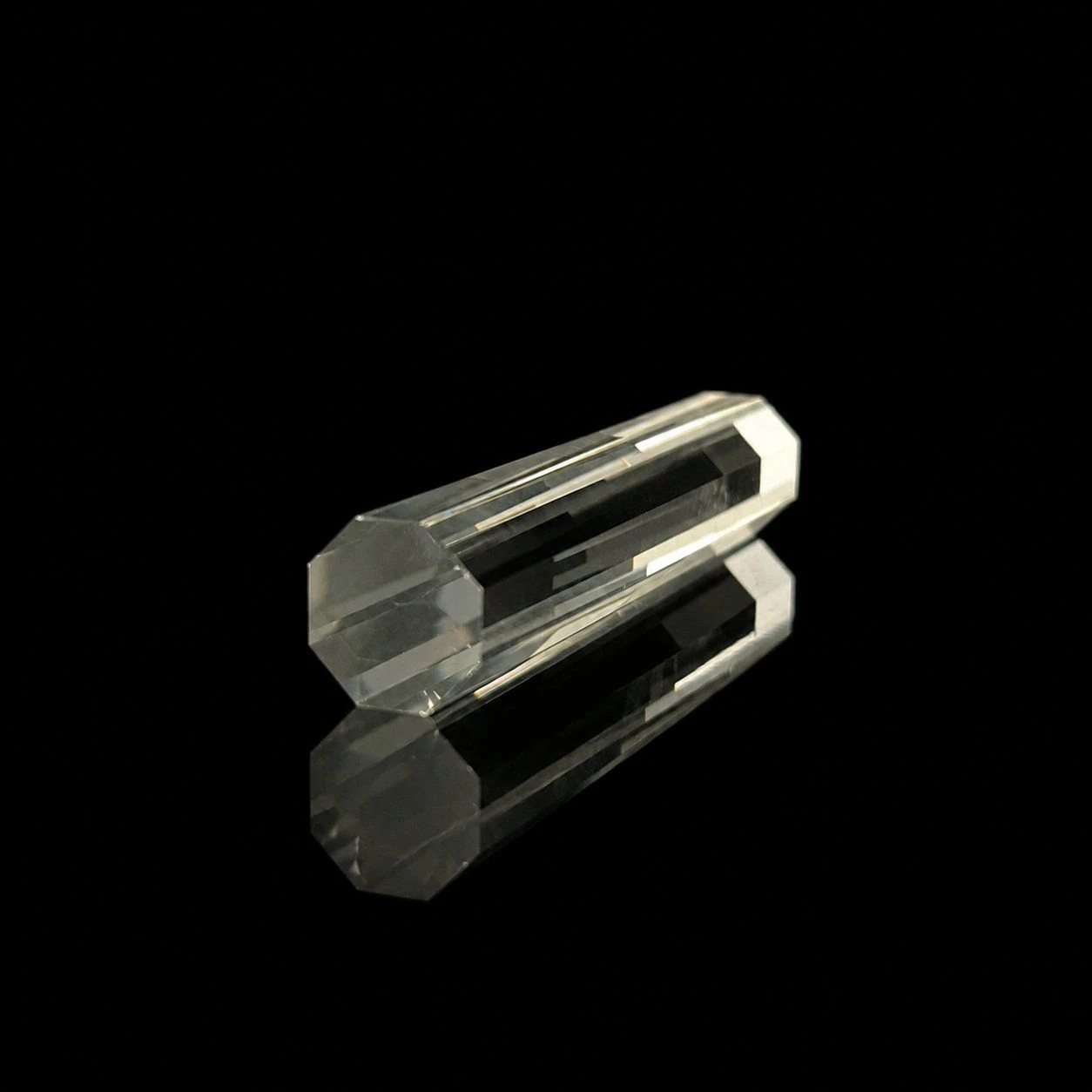

The Premium Optical Light Guide Prism for Medical Endoscopic Systems is supplied as an optical prism made from Optical Glass / H-K9l (K9 Glass). Optical / electrical data: wavelength 400-700 Nm (Customization Available). Listed for Endoscopic Illumination applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass / H-K9l (K9 Glass) |
|---|---|
| Type | Optical Prism / Light Guide |
| Shape | Customized |
| Wavelength Range | 400-700 Nm (Customization Available) |
| Application | Endoscopic Illumination |
| Usage | Light Guide |
| Model NO. | Vd-05 |
| Custom Services | OEM / ODM Supported |
| Dimensional Precision | Customized |
| Surface Treatment | Optical Polishing |
| Functions | Light Path Bending/Deflection |
| Supplier | Suzhou Vangta Electronic Technology Co., Ltd. |
Technical data
| Origin | Jiangsu, China | Product Name | Cube Beamsplitter Prism |
| Brand | Vantga | Product Type | Optical Prism / Beamsplitter Prism |
| Model No. | Pr-01 | Dimensional Accuracy | Customized |
| Customization Service | OEM / ODM Supported | Wavelength Range | 400–700nm (Custom Available) |
| Material | Optical Glass / H-K9L (K9 Glass) | Application | Laser Optical System, Machine Vision, Optical Instruments |
What to specify when you request a quote
- Material — listed as “Optical Glass / H-K9l (K9 Glass)”; name the glass or crystal.
- Geometry — listed as “Customized”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “Optical Polishing”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
Engineering guides for this part
How parts like this are machined and finished is covered in Flat Glass Polishing Process for Precision Substrates. Before sending a drawing, check Design Guide for Holes, Slots, and Edges in Custom Glass Parts.
FAQ
What is the Premium Optical Light Guide Prism for Medical Endoscopic Systems made of? expand_more
It is listed as Optical Glass / H-K9l (K9 Glass). Other grades can be quoted if your application needs different transmission, thermal or chemical properties.
What optical or electrical performance does it have? expand_more
Listed values: wavelength 400-700 Nm (Customization Available). Confirm the values at your operating wavelength, angle and temperature when you request a quote.
Where is this optical prism used? expand_more
Listed applications: Endoscopic Illumination.
What should I include in a quote request? expand_more
Include material, geometry, surface figure, centring and edges and coating, plus quantity and a drawing if the part is custom.
