Product type: Powell Prism. Application: Beam Dispersion, Beam Split. Model: RAY-LH100#.
Overview

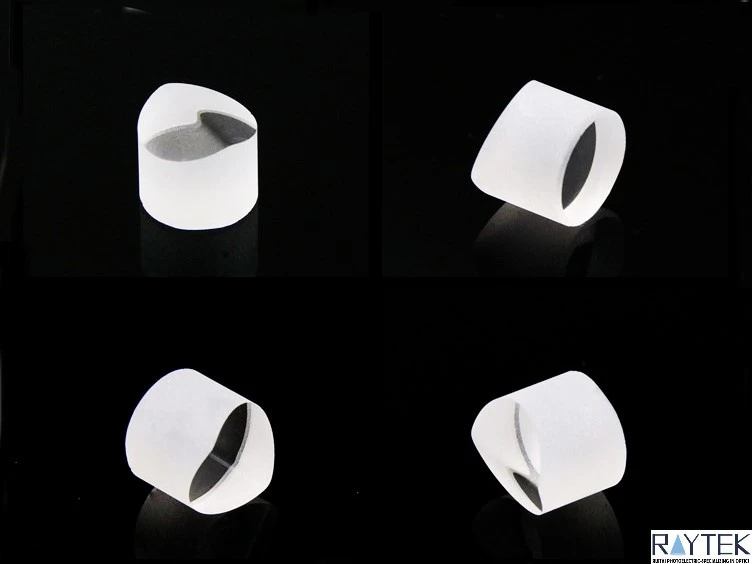

Premium Optical Prism for Enhanced Clarity in Imaging Solutions: an optical prism made from Glass. Optical / electrical data: wavelength 488-694 Nm/700-950nm. Coating: Dielectric Coating; surface quality 40-20 Scratch-Dig or Custom Manufacturing; flatness Lambda/10 at 632.8nm with Power Removed. Listed for All applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Powell Prism |
| Shape | Customized |
| Wavelength Range | 488-694 Nm/700-950nm |
| Surface Quality | 40-20 Scratch-Dig or Custom Manufacturing |
| Application | All |
| Usage | Beam Dispersion, Beam Split |
| Model NO. | RAY-LH100# |
| Surface Flatness | Lambda/10 at 632.8nm with Power Removed |
| Coating Type | Dielectric Coating |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “40-20 Scratch-Dig or Custom Manufacturing”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Dielectric Coating”; list the band and reflectance or transmission target.
Engineering guides for this part
How parts like this are machined and finished is covered in Optical Glass Polishing for High Clarity Surfaces. Before sending a drawing, check Design Guide for Holes, Slots, and Edges in Custom Glass Parts.
