Application: Furniture, Door, Building, Window. Model: CLEAR GLASS 13. Function: Insulated Glass, Low-E Glass, Heat Reflective Glass, Heat Absorbing Glass, Bulletproof Glass, Acid Etched Glass, Decorative Glass.
Overview

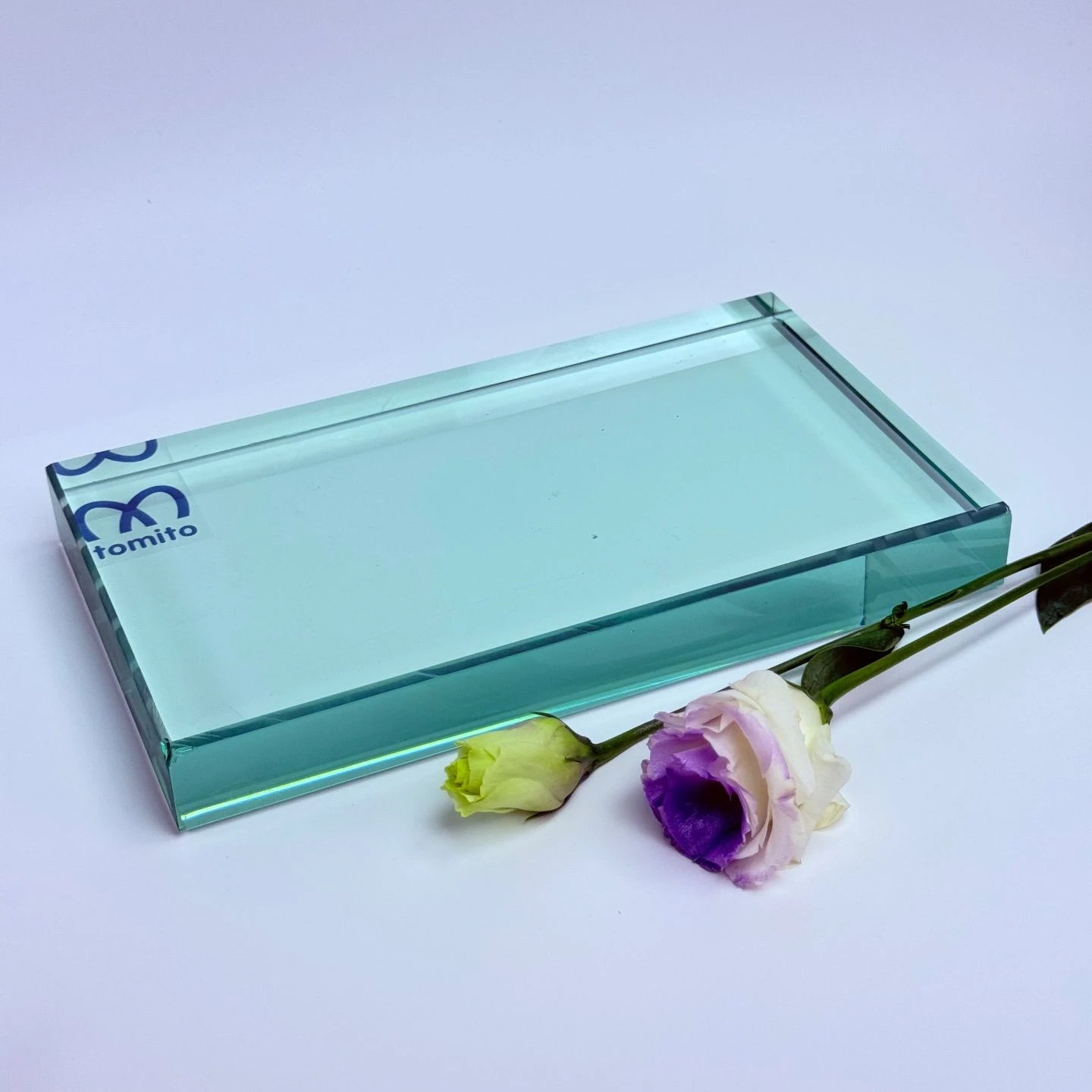

The Premium Quality Clear Float Glass Sheets for Wholesale Distribution is supplied as a precision glass plate / sheet. Listed geometry: size 6000mmx3660mm, thickness Thick Sheet Glass, flat shape. Optical / electrical data: transmittance Around 89%. Typical applications: Furniture, Door, Building and Window. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Shape | Flat |
|---|---|
| Thickness | Thick Sheet Glass |
| Usage | Furniture, Door, Building, Window |
| Model NO. | CLEAR GLASS 13 |
| Structure | Solid |
| Function | Insulated Glass, Low-E Glass, Heat Reflective Glass, Heat Absorbing Glass, Bulletproof Glass, Acid Etched Glass, Decorative Glass |
| Nominal Thickness | 2mm 3mm 4mm 5mm 6mm 8mm 10mm 12mm 15mm 19mm 22mm |
| Surface State | Ordinary Net Sheet Glass |
| Grade | Excellent Grade |
| Forming | Float Process |
| Workmanship | Molding machinery |
| Color | Clear |
| Product Name | Clear Float Glass |
| Colors | Transparency |
| Color Type | Solid Color |
| Silicon Content | Above 80% |
| Light Transmittance | Around 89% |
| Small Size | 100mmx100mm |
| Max Size | 6000mmx3660mm |
| Compressive Strength | 1100MPa |
| Deformation Point | 1280℃ |
| Softening Point | 1780℃ |
| Technics | Float Process |
| Supplier | Guangzhou Tomito Trading Ltd |
Technical data
| Light Transmittance of Clear Float Glass | |
|---|---|
| Thickness(mm) | Visible Light Tvis (%) |
| 2.0 | 90.12 |
| 3.0 | 89.97 |
| 3.2 | 89.96 |
| 4.0 | 89.22 |
| 5.0 | 89.95 |
| 6.0 | 89.95 |
| 8.0 | 89.86 |
| 10.0 | 89.12 |
| 12.0 | 89.86 |
| 15.0 | 85.79-88.23 |
| 19.0 | 84.99-85.23 |
| 22.0 | 83.25-84.03 |
| 25.0 | 82.99-84.23 |
| Optical Properties List of Low Iron Glass | |||||||||
| Thickness(mm) | Visible Light | Solar Energy | U Value(W/m2.K) | Shading Coefficent | Rel. Heat Gain | ||||
| (Tvis%) | (Rvis%) | (Tsol%) | (Rsol%) | Summer | Winter | Summer | Winter | ||
| 2.0 | 91.97 | 9.2 | 87.57 | 7.5 | 5.71 | 5.67 | 1.05 | 1.03 | 548 |
| 3.0 | 91.67 | 8.1 | 87.37 | 7.4 | 5.68 | 5.64 | 1.04 | 1.03 | 540 |
| 3.2 | 91.57 | 8.1 | 87.27 | 7.4 | 5.66 | 5.62 | 1.04 | 1.03 | 534 |
| 4.0 | 91.37 | 8 | 87.07 | 7.4 | 5.65 | 5.61 | 1.04 | 1.03 | 529 |
| 5.0 | 91.17 | 8 | 86.67 | 7.3 | 5.61 | 5.57 | 1.03 | 1.02 | 519 |
| 6.0 | 90.77 | 8 | 85.77 | 7.2 | 5.57 | 5.52 | 1.03 | 1.02 | 502 |
| 8.0 | 90.17 | 7.9 | 83.27 | 7 | 5.54 | 5.49 | 1 | 0.99 | 489 |
| 10.0 | 89.47 | 7.9 | 78.07 | 6.8 | 5.47 | 5.42 | 0.96 | 0.95 | 476 |
| 12.0 | 88.97 | 7.7 | 76.67 | 6.6 | 5.4 | 5.35 | 0.95 | 0.94 | 459 |
| 15.0 | 87.97 | 7.6 | 73.37 | 6.3 | 5.3 | 5.25 | 0.92 | 0.91 | 436 |
| 19.0 | 86.67 | 7.6 | 69.37 | 6.1 | 5.19 | 5.13 | 0.89 | 0.9 | 438 |
What to specify when you request a quote
- Material — name the glass or quartz grade.
- Outline and thickness — listed as “Thick Sheet Glass”; give outline, thickness and tolerances.
- Holes, slots and features — listed as “Flat”; dimension every hole and its position tolerance on the drawing.
- Edges — state edge finish and chamfer.
- Surface — listed as “Ordinary Net Sheet Glass”; state polish and flatness where they matter.
