Application: Furniture, Home Appliance, Electronics & Instruments, Auto Manufacturing, Commercial and Industry Screen Display. Model: TR0614.
Overview

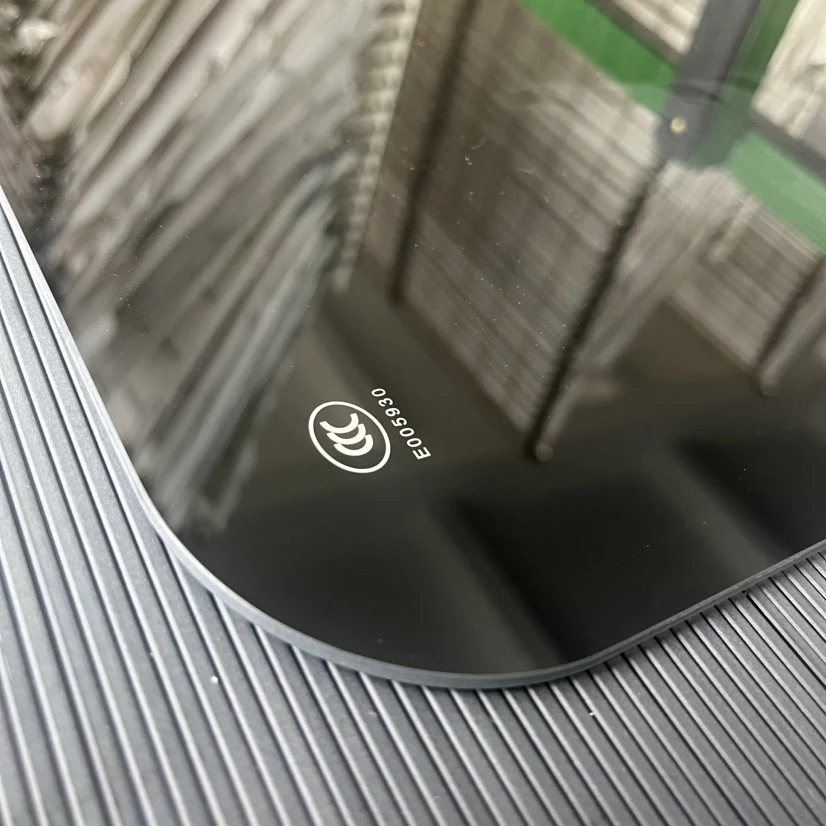

The Premium Tempered Glass with Anti-Fingerprint Coating for Electronics is supplied as a building / safety glass made from Home Appliance Float Glass. Listed geometry: thickness 0.7mm-6mm, flat shape. Optical / electrical data: transmittance ≥90%. Flatness Conforming Article. It is used in Furniture, Home Appliance, Electronics & Instruments, Auto Manufacturing and Commercial and Industry Screen Display. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Shape | Flat |
|---|---|
| Thickness | 0.7mm-6mm |
| Flatness | Conforming Article |
| Usage | Furniture, Home Appliance, Electronics & Instruments, Auto Manufacturing, Commercial and Industry Screen Display |
| Model NO. | TR0614 |
| Appearance | Flat Tempered |
| Standard | GB15763.2-2005 |
| Steel Degree | Super-Tempered Glass |
| Thickness of Flat Tempered Glass | 3.2mm |
| Thickness of Curve Tempered Glass | 2.5 |
| Fragment State | Ⅲ |
| Technics | Chemical Tempered |
| Glass Type | Home Appliance Float Glass |
| Glass Performance | Flat Cover Glass |
| Dol | More Than 40μm |
| Transmittaness | ≥90% |
| Glass process | Cutting, edge grinding, washing /cleaning, CNC edging, silk screen printing, coating |
| Edge type | flat polished edge, flat hazy edge, pencil hazy edge, simple edge etc |
| tempering type | chemcial tempering, pysical tempering |
| Supplier | Jiangyin Tairong Photoelectricity Technology Ltd |
Technical data
| Applicaiton : | cover glass panel for almost all types of household application, like washing machine cover panel, cooking device gas heater glass, Air-conditioner front glass, other smart-screen display flat glass . |
|---|---|
| Glass process: | Cutting, edge grinding, washing /cleaning, CNC edging, silk screen printing, coating |
| Edge type: | flat polished edge, flat hazy edge, pencil hazy edge, simple edge etc |
| Thickness : | 0.5 – 6mm |
| tempering type : | chemcial tempering, pysical tempering |
| Shape: | flat or curve |
| MOQ: | More than 100 piecess |
What to specify when you request a quote
- Glass type and thickness — listed as “0.7mm-6mm”; name the glass and thickness.
- Temperature and pressure — give working temperature, thermal shock and any pressure rating.
- Strengthening and safety — listed as “3.2mm”; state tempering, lamination or the safety standard.
- Outline and edges — listed as “Flat”; send a drawing with outline, holes and edge finish.
