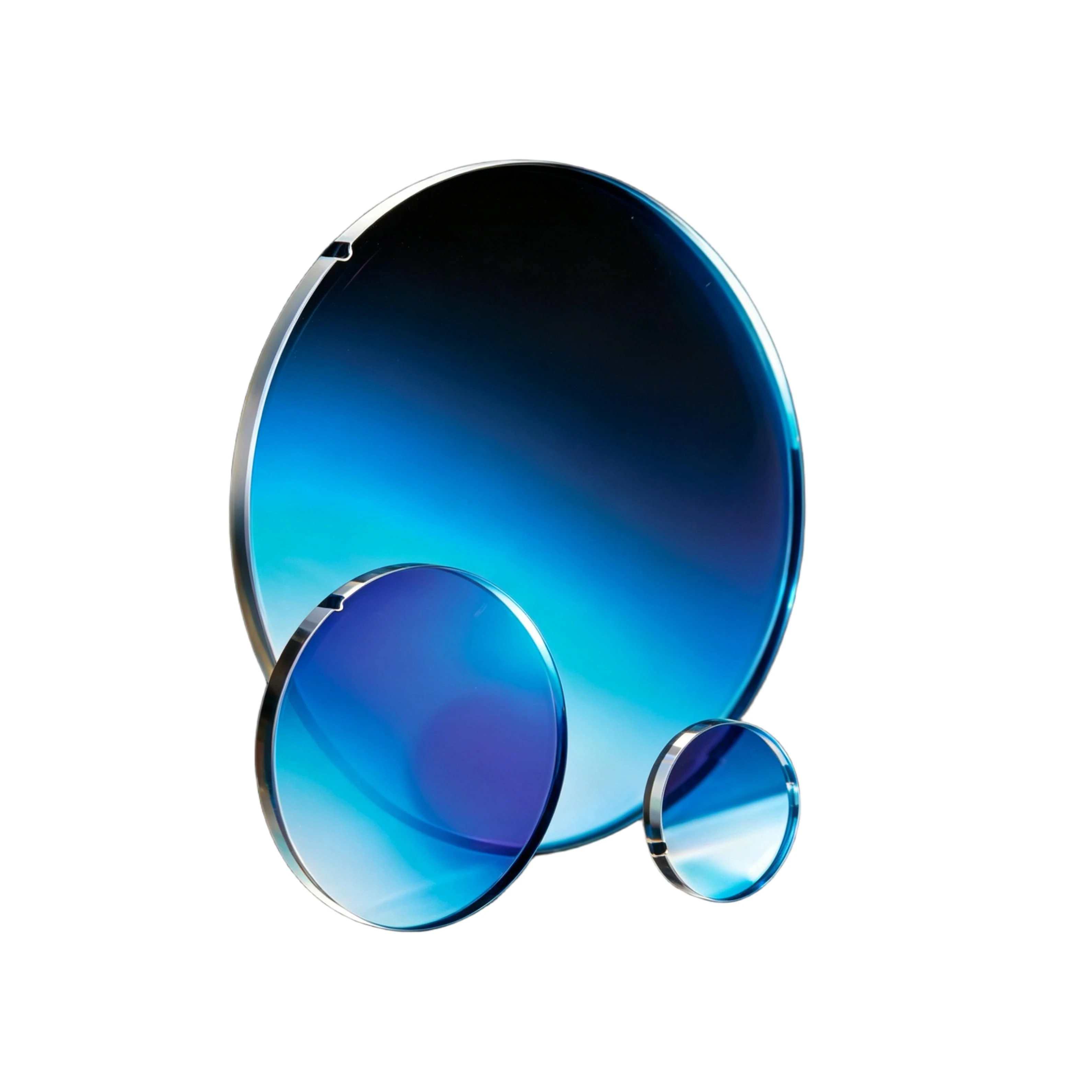

The Premium Ultrathin Glass Polarizers for Advanced Light Management Solutions is supplied as a waveplate / polariser / grating made from Optical Glass. Optical / electrical data: transmittance >95%. Coating: HC. Listed for Optical applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
Material
Optical Glass
Type
Convex Lens
Transmittance
>95%
Coating
HC
Usage
Optical
Model NO.
AT-61158
Lenses Color
Clear
Supplier
Shanghai Anttrans Technology Co., Ltd
Technical data
Key Performance Parameters of Ultrathin Glass Polarizers
Thickness
30 microns +/- 10 microns
Wavelength and Bandwidth
1310 nm (1275-1345 nm)1550 nm (1510-1590 nm)
Standard Size
1 mm x 2 mm
Extinction
> 23 dB
Transmission
> 98%, excluding surface reflective losses
Performance• Low insertion loss• High extinction
• Large clear aperture
(80% of edge dimension)
• High transmission
λNominal (nm)
1060
1310
1550
Polarization Bandwidth (nm)
960 – 1160
1275 – 1345
1510 – 1590
ContrastExtinction Ratio (dB)
> 200:1> 23
> 200:1> 23
> 200:1> 23
Transmittance (%)Insertion Loss (dB) without AR-Coating
> 88.5< 0.53
> 88.5< 0.53
> 88.5< 0.53
Thickness (μm)
30 ±10
30 ±10
30 ±10
What to specify when you request a quote
Material — listed as “Optical Glass”; name the glass or crystal.
Geometry — give diameter, focal length or radii, angles and tolerances.
Surface figure — quote surface figure (λ) and scratch-dig.
Centring and edges — state centration and edge chamfer.
Coating — listed as “HC”; list the band and reflectance or transmission target.
What is the Premium Ultrathin Glass Polarizers for Advanced Light Management Solutions made of? expand_more
It is listed as Optical Glass. Coating: HC. Other grades can be quoted if your application needs different transmission, thermal or chemical properties.
What optical or electrical performance does it have? expand_more
Listed values: transmittance >95%. Confirm the values at your operating wavelength, angle and temperature when you request a quote.
Where is this waveplate / polariser / grating used? expand_more
Listed applications: Optical.
What should I include in a quote request? expand_more
Include material, geometry, surface figure, centring and edges and coating, plus quantity and a drawing if the part is custom.
