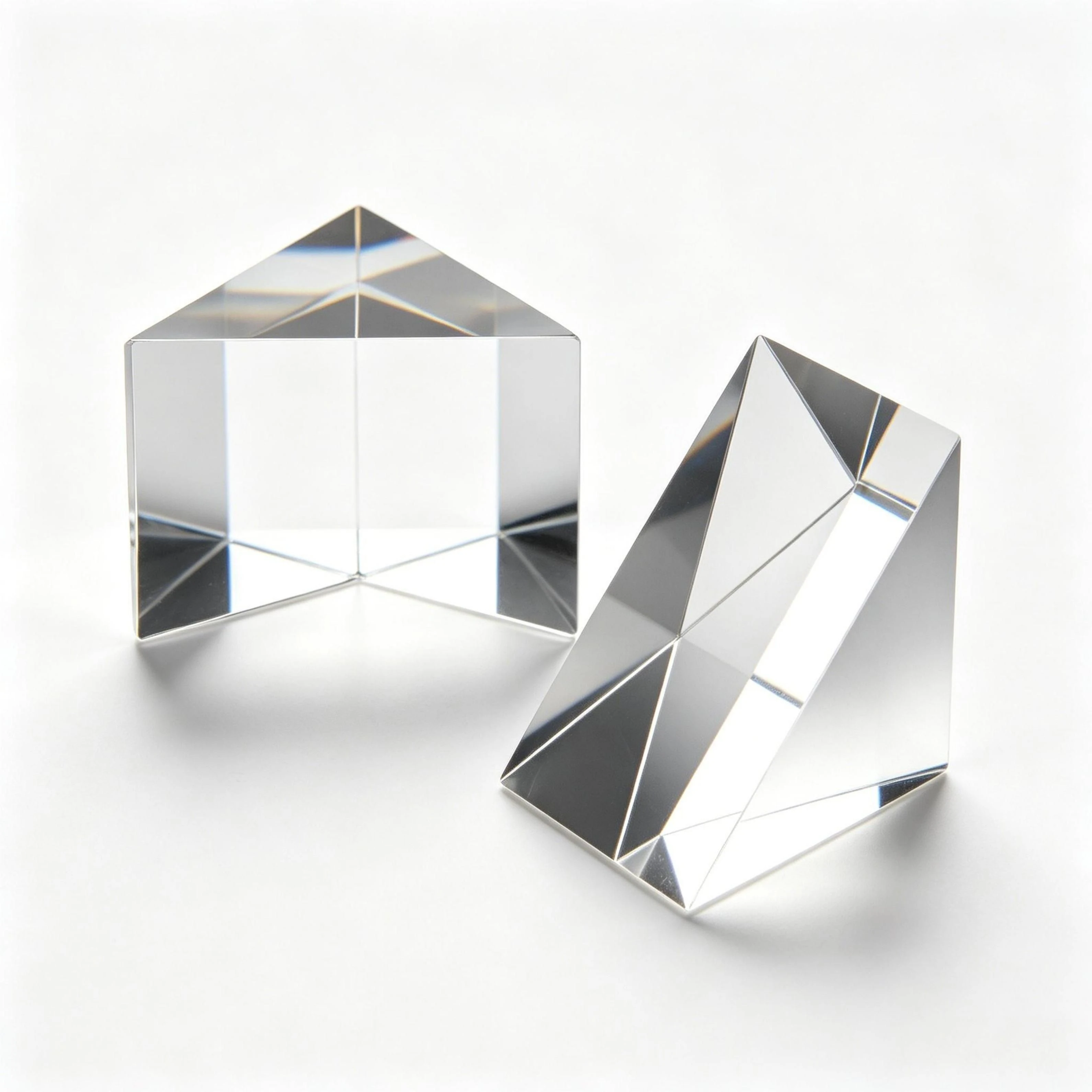

Premium UV Fused Silica Right-Angle Prism for Optical Clarity

Product type: Glass Wafer. Application: Artificial Intelligence, Automotive Electronics, Industry. Model: AT-61183.

Overview

The Premium UV Fused Silica Right-Angle Prism for Optical Clarity is supplied as an optical prism. Coating: Uncoated/Visible/NIR Multilaye/IR Multilayer/V-coat multilayer. It is used in Artificial Intelligence, Automotive Electronics and Industry. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.

Specifications

Technical data

What to specify when you request a quote

• Material — listed as “UV Fused Silica”; name the glass or crystal.
• Geometry — listed as “Basic Data”; give diameter, focal length or radii, angles and tolerances.
• Surface figure — quote surface figure (λ) and scratch-dig.
• Centring and edges — state centration and edge chamfer.
• Coating — listed as “Uncoated/Visible/NIR Multilaye/IR Multilayer/V-coat multilayer”; list the band and reflectance or transmission target.

Engineering guides for this part

For material grades and coating options, see AR-Coated Glass Materials for High-Transmission Optical Parts. How parts like this are machined and finished is covered in Optical Glass Polishing for High Clarity Surfaces. For an application example, read AR Coated Glass for Appliance Touch Screens: Specs and Selection. Before sending a drawing, check Design Guide for Holes, Slots, and Edges in Custom Glass Parts. A related standard product is AR-Coated High-Transparency Optical Glass.
