Product type: Glass Wafer. Application: Automotive Electronics, Industry. Model: AT-61182.
Overview
Premium Znse Plano-Convex Lens for Exceptional Optical Performance is an optical lens. Optical / electrical data: wavelength 400-700nm. Coating: Visible Single-Layer MgF2; surface quality 40-20 scratch-dig; flatness λ/4. Typical applications: Automotive Electronics and Industry. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Type | Glass Wafer |
|---|---|
| Surface Quality | 40-20 scratch-dig |
| Application | Automotive Electronics, Industry |
| Conductivity Type | Insulator |
| Model NO. | AT-61182 |
| Purity | EG-Si |
| Products Name | MgF2 Visible Antireflection Coated N-BK7 Plano-Convex Lenses |
| Main Applying | Laser electro-optic focusing application scenarios,Laser applying, laser protection, laser windows, laser protective windows, laser defense windows,etc |
| Optical Lens Type | Plano-Convex Lenses |
| Lens Substrate | N-BK7 |
| Surface Flatness | λ/4 |
| Surface Accuracy/Irregularity | λ/4 (40-20 scratch-dig models) |
| Coating Type | Visible Single-Layer MgF2 |

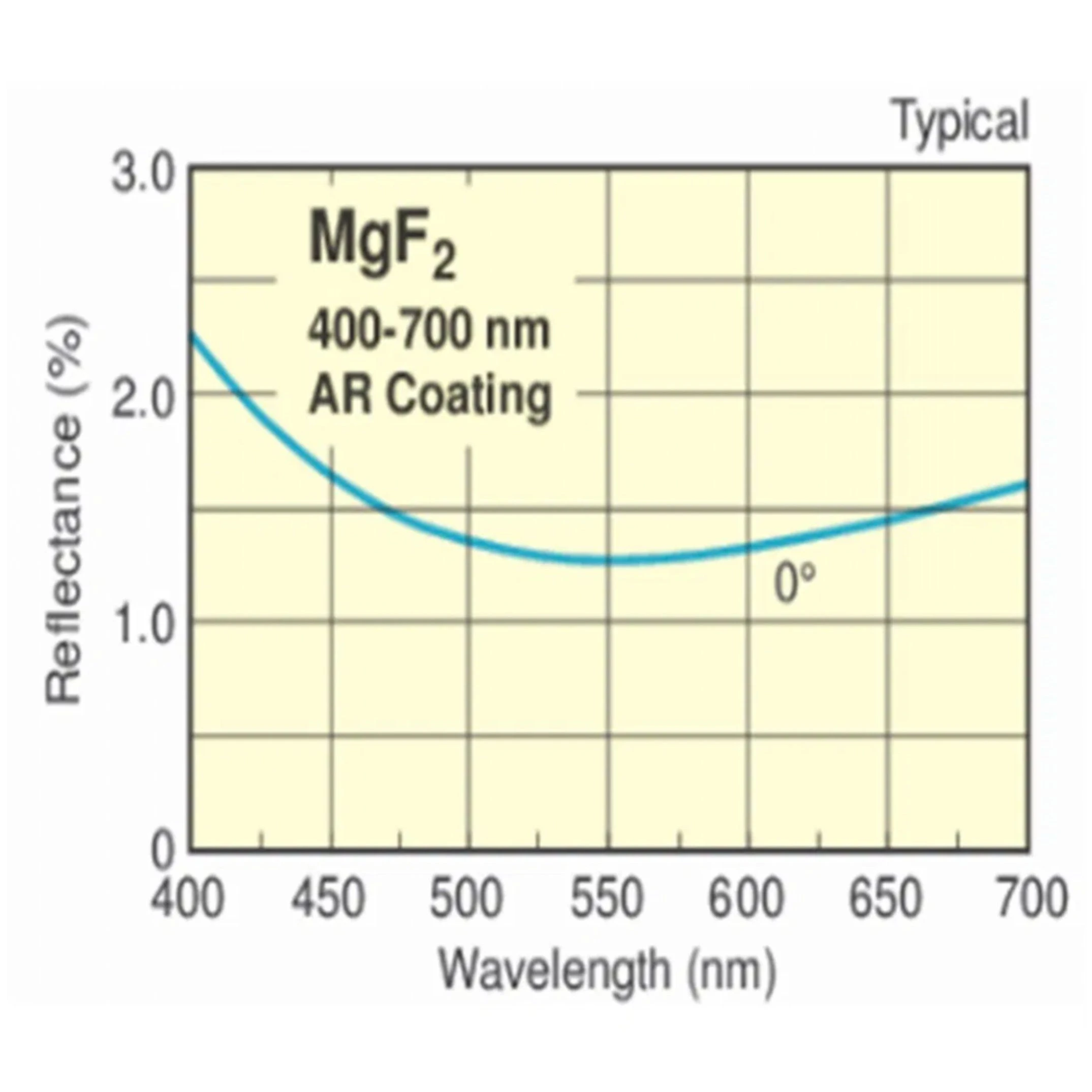

| Antireflection Coating Wavelength | 400-700nm |
| Effective Focal Length(EFL) | 6.4 mm |
| Other Available Coating Workcraft | Uncoated |
| Other Available Lens Substrates | Molded glass |
| Supplier | Shanghai Anttrans Technology Co., Ltd |
Technical data
| Type | Plano-Convex Lenses |
|---|---|
| Shape | Single-lens |
| Lenses Color | Clear |
| Customized | Customized |
| Substrate | Optical Glass,Fused Silica,N-Bk7,K9,etc |
| Ar Coating Wavelength | 400-700nm or CustomManufacturing as Per Demand |
| Surface Flatness | Lambda/4 |
| Specification | 6.35-76.2mm or custom manufacturing |
| Origin | China |
| Production Capacity | 100000PCS Per Year |
| Usage | Lighting,Medical,Optical,Photography,Laser,Astronomy,Imaging,Detection,etc |
|---|---|
| Transmittance | >95% |
| Material | Optical Glass |
| Certification | RoHS,ISO9001,CE |
| Coating | Visible Single-Layer Mgf2 |
| Surface Quality | 40-20 Scratch-Dig or Custom |
| Coating Type | Visible Single-Layer Mgf2 |
| Transport Package | Cartons or Wood Case |
| Trademark | Raytek |
| HS Code | 9002909090 |
| Universal Optical Character Tech Data | |
|---|---|
| Optical Lens Type: | Plano-Convex Lenses |
| Lens Substrate: | N-BK7or custom as per the demand of customers |
| Surface Quality: | 40-20 scratch-digOr custom manufacturing as per demand |
| Surface Flatness: | λ/4 |
| Surface Accuracy/Irregularity: | λ/4 (40-20 scratch-dig models)λ/2 (60-40 scratch-dig models) |
| Surface Accuracy,(Power) | 1.5λ (40-20 scratch-dig models)2.5λ (60-40 scratch-dig models) |
| Coating Type: | Visible Single-Layer MgF2AR CoatingOr custom manufacturing as per demand |
| Antireflection Coating Wavelength: | 400-700nmOr custom manufacturing as per demand |
What to specify when you request a quote
- Material — listed as “N-BK7”; name the glass or crystal.
- Geometry — listed as “6.4 mm”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “40-20 scratch-dig”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Visible Single-Layer MgF2”; list the band and reflectance or transmission target.
