Application: Industrial Use.
Overview

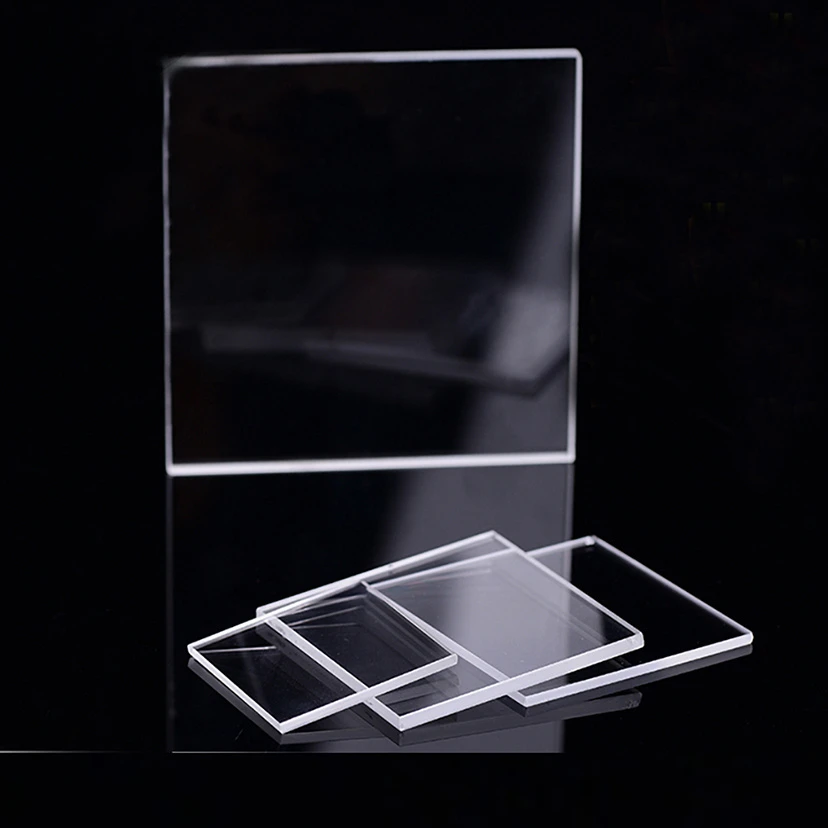

Professional Factory Optical Instrument Optical Cold Mirror UV Quartz Glass Heater Fused Silica Cold Mirror: a quartz heating / UV lamp made from 99.99% Pure Quartz. Listed geometry: diameter 5-500mm, thickness 0.5-100mm, 0.5-100mm, circular shape, round /square etc shape. Temperature 1730℃. It is used in Photoelectron. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | 99.99% Pure Quartz |
|---|---|
| Shape | Circular Shape, Round /Square etc |
| Diameter | 5-500mm |
| Thickness | 0.5-100mm, 0.5-100mm |
| Application | Photoelectron |
| Usage | Industrial Use |
| Color | Transparent/Polished |
| Density | 2.2g/cm3 |
| Response Time | 2 Second |
| Soften Temperature | 1730℃ |
| Deliver Time | DHL , FedEx ,UPS |
| Supplier | Huaian Yinfrared Heating Tech Co., Ltd. |
What to specify when you request a quote
- Material — listed as “99.99% Pure Quartz”; name the glass (borosilicate 3.3, quartz, soda-lime).
- OD, ID and wall — listed as “5-500mm”; give outer and inner diameter or wall and their tolerances.
- Length and ends — give length, end finish and any closed or flared ends.
- Straightness and bore — state straightness and bore tolerance for precision tubing.
