Application: Industrial Use. Model: heat lamp.
Overview

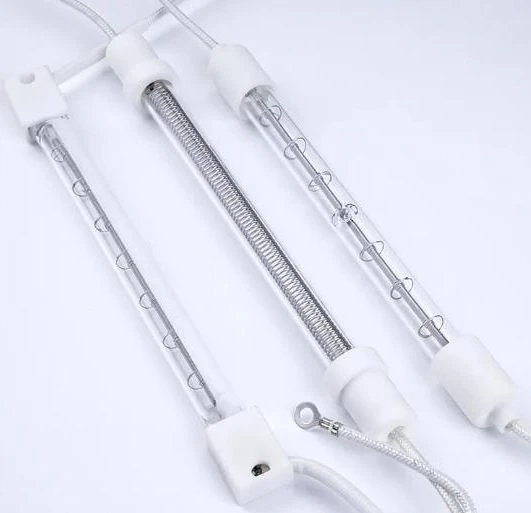

The Quartz Tube IR Heater Lamp Ceramic Heating Tube is supplied as a quartz heating / UV lamp made from Quartz Glass. Listed geometry: diameter 10mm / 12mm / 15mm /11X23mm / 15X33mm. Optical / electrical data: wavelength Short Wave. It is used in Heating, Paint Drying and Pet Bottle Blowing. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Quartz Glass |
|---|---|
| Diameter | 10mm / 12mm / 15mm /11X23mm / 15X33mm |
| Wavelength | Short Wave |
| Application | Heating / Paint Drying / Pet Bottle Blowing |
| Usage | Industrial Use |
| Model NO. | heat lamp |
| Color | Golden |
| Voltage | 24-600V |
| Power | 100-6000W |
| Working Life | Over 5000 Hrs |
| Length | 100-3000mm |
| Shipping Time | 7-15 Days Production |
| Supplier | Lianyungang Yongsin Quartz Co., Ltd. |
Technical data
| Product Name | Infrared quartz heater tube |
|---|---|
| Outside Diameter | 8-20mm |
| Length | 100-3000mm |
| Power | 100-3000w |
| Voltage | 24V/75V/110/220V/240V,etc |
| Surface | 400~1000 °C |
What to specify when you request a quote
- Material — listed as “Quartz Glass”; name the glass (borosilicate 3.3, quartz, soda-lime).
- OD, ID and wall — listed as “10mm / 12mm / 15mm /11X23mm / 15X33mm”; give outer and inner diameter or wall and their tolerances.
- Length and ends — listed as “Short Wave”; give length, end finish and any closed or flared ends.
- Straightness and bore — state straightness and bore tolerance for precision tubing.
