Product type: Clear Quartz Plate, Plate/Sheet/Windows/Wafer. Application: Optical.
Overview

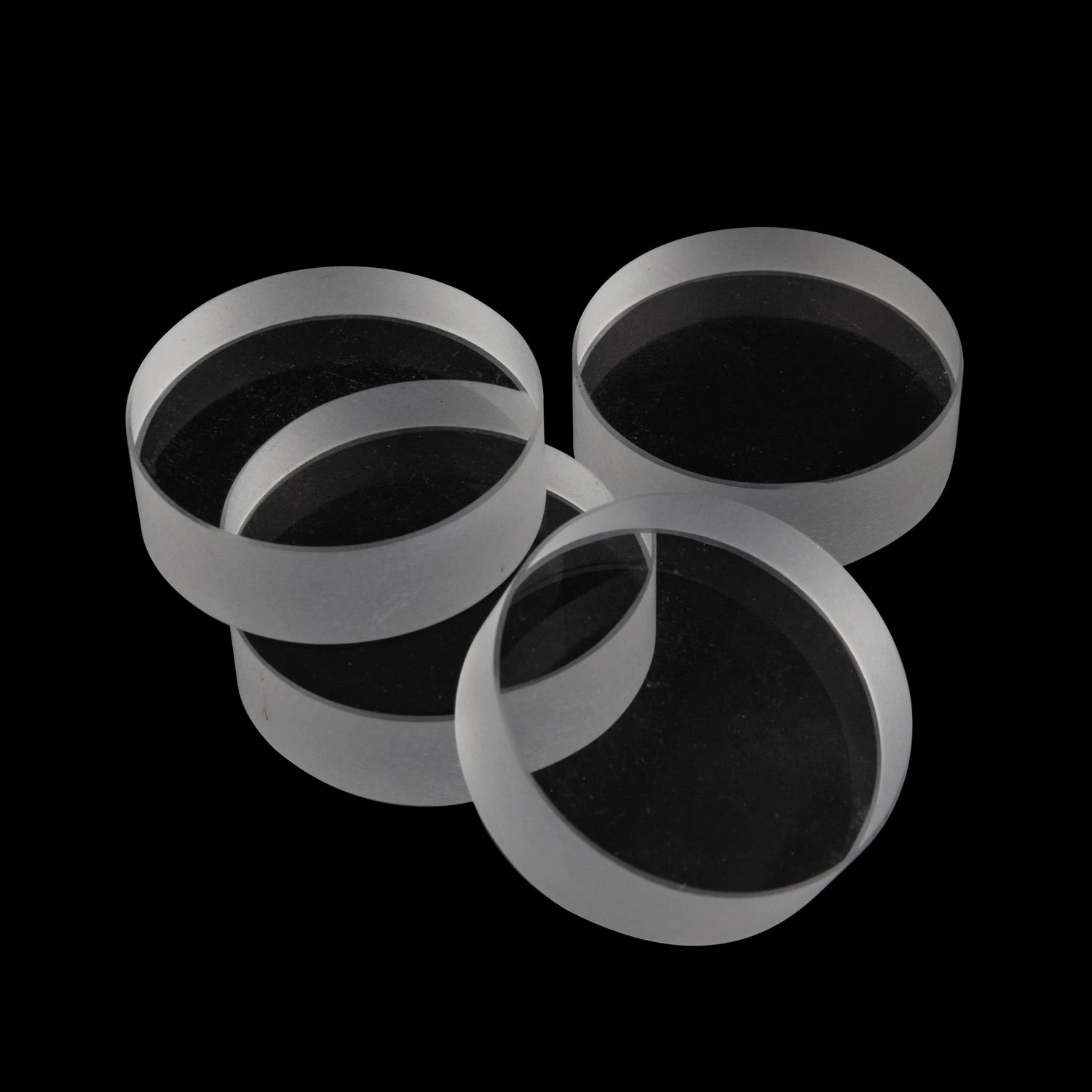

The Round Shape Frosted High Temperature Pyrex Quartz Glass Disc is supplied as a precision glass plate / sheet made from 99.99% Pure Quartz. Listed geometry: diameter 5-500mm, thickness 0.5-100mm, 0.5-100mm, circular shape, round /square etc shape. Temperature 1730℃. It is used in Photoelectron. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | 99.99% Pure Quartz |
|---|---|
| Type | Clear Quartz Plate, Plate/Sheet/Windows/Wafer |
| Shape | Circular Shape, Round /Square etc |
| Diameter | 5-500mm |
| Thickness | 0.5-100mm, 0.5-100mm |
| Application | Photoelectron |
| Usage | Optical |
| Thickness Range | 0.5-100mm, 0.5-100mm |
| Color | Transparent/Polished |
| Density | 2.2g/cm3 |
| Response Time | 2 Second |
| Soften Temperature | 1730℃ |
| Deliver Time | DHL , FedEx ,UPS |
| Supplier | Huaian Yinfrared Heating Tech Co., Ltd. |
What to specify when you request a quote
- Material — listed as “99.99% Pure Quartz”; name the glass or quartz grade.
- Outline and thickness — listed as “5-500mm”; give outline, thickness and tolerances.
- Holes, slots and features — listed as “Circular Shape, Round /Square etc”; dimension every hole and its position tolerance on the drawing.
- Edges — state edge finish and chamfer.
- Surface — state polish and flatness where they matter.
