Product type: Equilateral Prism. Application: Beam Dispersion. Model: STF5S.
Overview

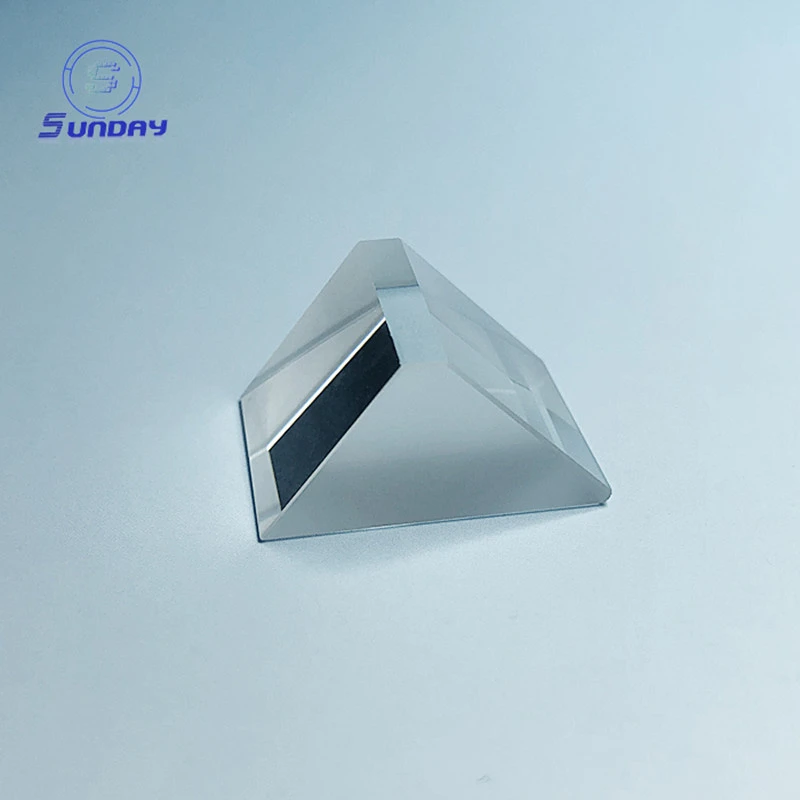

Sapphire Right Angle Prism Manufacture is an optical prism made from Sapphire. Listed geometry: long prism shape. Optical / electrical data: bandwidth 3-50nm. Surface quality 60-40; flatness 1/4 Lambda. Listed for Medical Instrument applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Sapphire |
|---|---|
| Type | Equilateral Prism |
| Shape | Long Prism |
| Fwhm | 3-50nm |
| Surface Quality | 60-40 |
| Flatness | 1/4 Lambda |
| Application | Medical Instrument |
| Usage | Beam Dispersion |
| Model NO. | STF5S |
| Tolerance | +/-0.05mm |
| Sunday Optics manufacture | Sapphire window, sapphire lens, sapphire light block,sapphire dome lens. |
| Supplier | Changchun Sunday Optics Co., Ltd. |
Technical data
| Diameter | 0.5mm to 300mm |
|---|---|
| Diameter Tol. | +/-0.02 |
| Material | Sapphire (Al2O3) |
| Surface Quality | 60-40 standard |
| Flatness | 1/4 lambda |
| Chamfer | 0.25mmx45degree |
| Coating | AR Coating is on request. |
What to specify when you request a quote
- Material — listed as “Sapphire”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “60-40”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
Engineering guides for this part
How parts like this are machined and finished is covered in Flat Glass Polishing Process for Precision Substrates. Before sending a drawing, check Design Guide for Holes, Slots, and Edges in Custom Glass Parts.
FAQ
What is the Sapphire Right Angle Prism Manufacture made of? expand_more
It is listed as Sapphire. Other grades can be quoted if your application needs different transmission, thermal or chemical properties.
What optical or electrical performance does it have? expand_more
Listed values: bandwidth 3-50nm. Confirm the values at your operating wavelength, angle and temperature when you request a quote.
Where is this optical prism used? expand_more
Listed applications: Medical Instrument.
What should I include in a quote request? expand_more
Include material, geometry, surface figure, centring and edges and coating, plus quantity and a drawing if the part is custom.
