Application: Medical, Civil, Labs. Model: DM006.
Overview

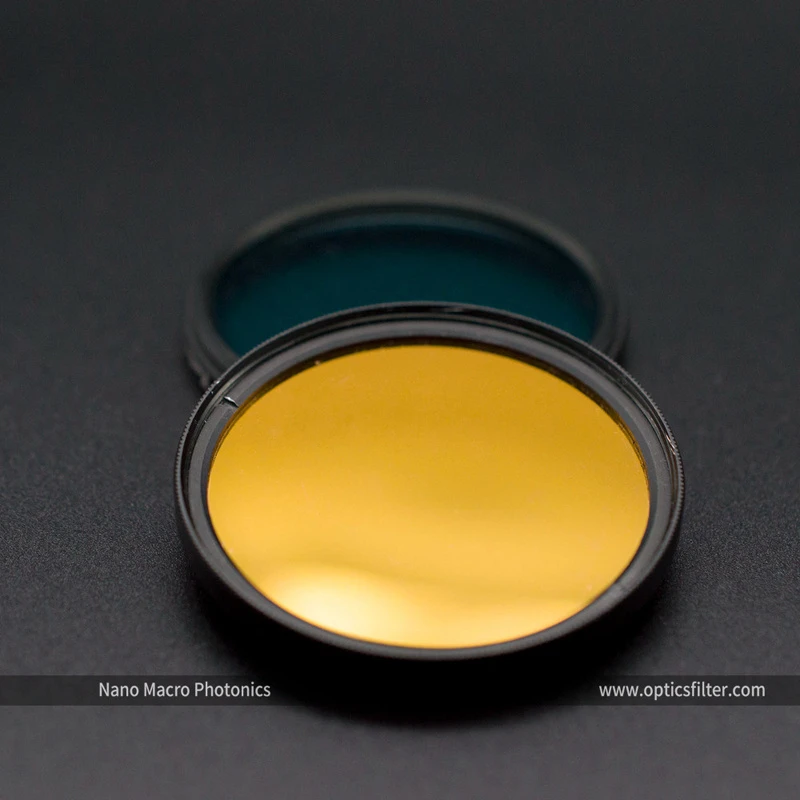

Shenzhen Manufacturers Customized Optical Dichroic Mirrors is a dichroic filter made from Glass. Listed geometry: round shape. It is used in Medical, Civil and Labs. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Shape | Round |
| Application | Medical, Civil, Labs |
| Model NO. | DM006 |
| RGB Optical reflectivity of aluminized mirrors | 400nm-700nm R>97% |
| Supplier | Nano Macro Optics Co.,Ltd. |
Technical data
| Small absorption | Reflected red through the green light mirror (reflecting 650nm through 532nm) |
|---|---|
| Small scattering | Reflected green through the red light mirror (reflecting 532nm through 650nm) |
| Less loss | Reflected blue through the green light mirror (reflecting 473nm through 532nm through 650nm) |
| Film stable | Reflected blue reflective green through the red light mirror (reflecting 473nm reflection 532nm through 650nm) |
| High transmittance | Reflected red through the green through the blue light mirror (reflecting 650nm through 532nm through 473nm) |
| High reflection efficiency | Reflected red reflected green through blue light mirror (reflecting 650nm reflection 532nm through 473nm) |
| Clear color without stray light | Stage light reflection mirror (Incident angle 15°-57°) |
| Easy to install and debug equipment | RGB Optical reflectivity of aluminized mirrors: 400nm-700nm R>97% |
| Application | stage light,optical instruments,digital microscopic smaging |
What to specify when you request a quote
- Spectral target — state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — quote scratch-dig for imaging paths.
Engineering guides for this part
For material grades and coating options, see Dichroic Filter Glass: Selecting Substrates for Precision Optical Separation. For an application example, read Dichroic Filter Glass for Smart Appliance Lighting Modules. A related standard product is Dichroic Filter.
FAQ
What is the Shenzhen Manufacturers Customized Optical Dichroic Mirrors made of? expand_more
It is listed as Glass. Other grades can be quoted if your application needs different transmission, thermal or chemical properties.
Where is this dichroic filter used? expand_more
Listed applications: Medical, Civil and Labs.
What should I include in a quote request? expand_more
Include spectral target, blocking, angle of incidence, size and thickness and substrate, plus quantity and a drawing if the part is custom.
