Product type: Prism. Application: Beam Dispersion, Beam Split. Model: TT Prism28.
Overview

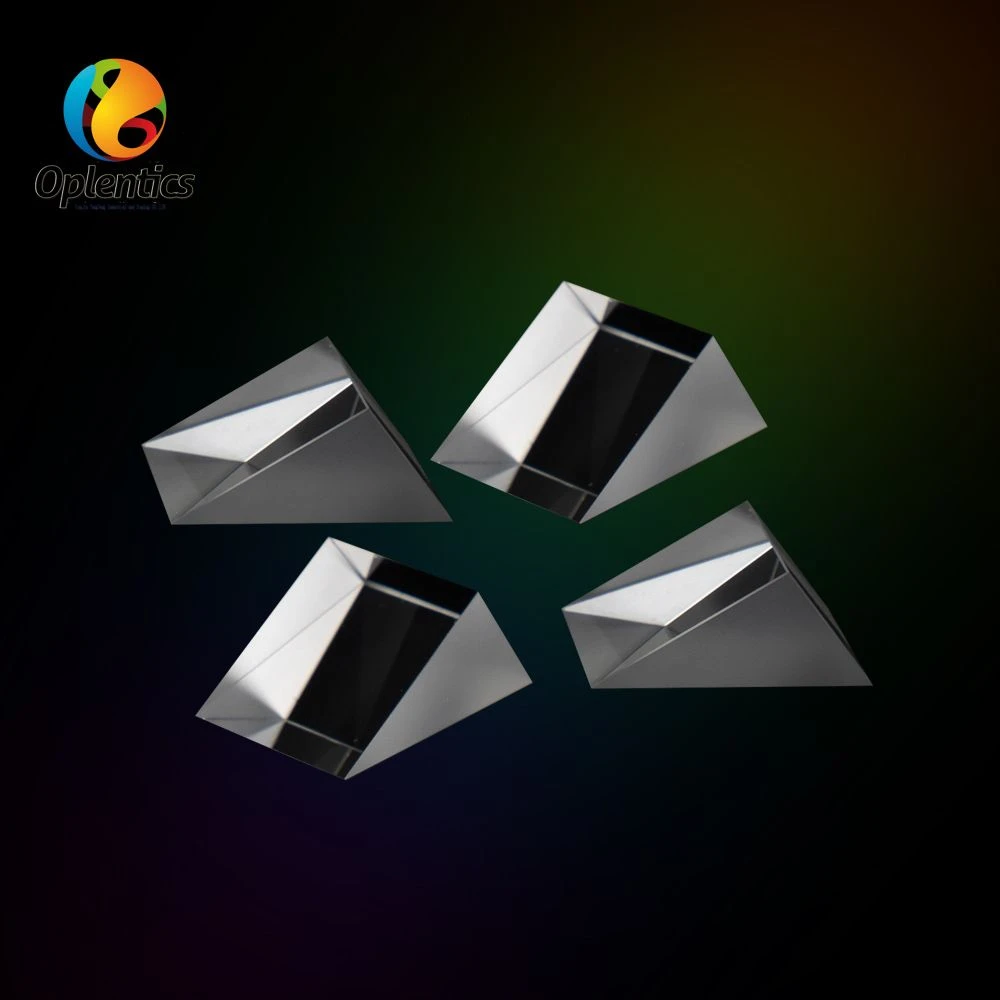

Single Axis Retroreflector Bbar Coated Hypotenuse Optical Right Angle Prisms is an optical prism made from Glass. Listed geometry: thickness as Required, right angle prism shape. Surface quality 40-20; flatness Lambda/8. Typical applications: Medical Instrument. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Prism |
| Shape | Right Angle Prism |
| Thickness | as Required |
| Surface Quality | 40-20 |
| Application | Medical Instrument |
| Usage | Beam Dispersion, Beam Split |
| Model NO. | TT Prism28 |
| Angle Tolerance | +/15arcsec |
| Dimensional Tolerance | +0/-0.1mm |
| Ray Deviation | 90 Degree |
| Surface Flatness | Lambda/8 |
| Bevel | Protective Bevel as Needed |
| Image Orientation | Left-Handed |
| Supplier | Tianjin Tengteng Optoelectronic Technology Co., Ltd. |
Technical data
| Product Name | Sapphire/CaF2 Optical 90 Degree Right Angle/Triangle Prism |
|---|---|
| Description | Prisms designed with a 90° angle |
| Coating | BBAR Coating |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — listed as “+/15arcsec”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “40-20”; quote surface figure (λ) and scratch-dig.
- Centring and edges — listed as “Protective Bevel as Needed”; state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
