Application: Spectrophotometer Replacement. Model: 120402014.
Overview

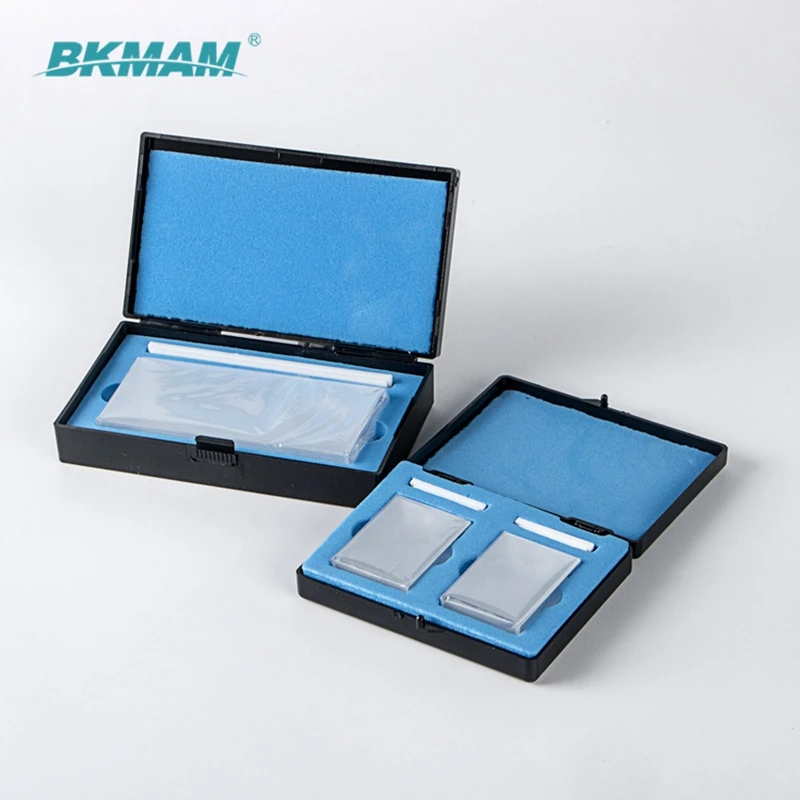

Spectrophotometer Replacement Fused Quartz Glass Cell Cuvette 5mm 10mm 20mm 30mm 40mm is an optical cuvette. Listed geometry: size 7.5*12.5*45mm. Listed for Laboratory Supplies applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Size | 7.5*12.5*45mm |
|---|---|
| Application | Laboratory Supplies |
| Usage | Spectrophotometer Replacement |
| Model NO. | 120402014 |
| Product Name | Quartz Cell Cuvette |
| Product Material | High Quality Quartz |
| Production Process | Fused/Glued |
| Color | Transparent and Frosted |
| Light Path | 5mm |
| Feature | Good Light Transmmision |
| Sample Charge | Free of Charge |
| Note | * Please touch the frosted sides when handling |
| Supplier | Hunan BKMAM International Trade Co., Ltd. |
Technical data
| Model | Material | Production Process | Size (mm) | Light Path(mm) | Volume(mL) |
| 5mm | Glass/ Quartz | Glued | 7.5*12.5*45 | 5 | 1.7 |
| 10mm | Glass/ Quartz | Glued | 12.5*12.5*45 | 10 | 3.5 |
| 20mm | Glass/ Quartz | Glued | 22.5*12.5*45 | 20 | 7.0 |
| 30mm | Glass/ Quartz | Glued | 32.5*12.5*45 | 30 | 10.5 |
| 40mm | Glass/ Quartz | Glued | 42.5*12.5*45 | 40 | 14.0 |
| 50mm | Glass/ Quartz | Glued | 52.5*12.5*45 | 50 | 17.5 |
| 100mm | Glass/ Quartz | Glued | 102.5*12.5*45 | 100 | 35 |
| 5mm | Glass/ Quartz | Fused | 7.5*12.5*45 | 5 | 1.7 |
| 10mm | Glass/ Quartz | Fused | 12.5*12.5*45 | 10 | 3.5 |
| 20mm | Glass/ Quartz | Fused | 22.5*12.5*45 | 20 | 7.0 |
| 30mm | Glass/ Quartz | Fused | 32.5*12.5*45 | 30 | 10.5 |
| 40mm | Quartz | Fused | 42.5*12.5*45 | 40 | 14.0 |
| 50mm | Quartz | Fused | 52.5*12.5*45 | 50 | 17.5 |
| 100mm | Quartz | Fused | 102.5*12.5*45 | 100 | 35 |
What to specify when you request a quote
- Material — listed as “High Quality Quartz”; name the glass (soda-lime, borosilicate, quartz) because it fixes UV transmission and chemical resistance.
- Dimensions — listed as “7.5*12.5*45mm”; give dimensions and tolerances.
- Surface and edges — state edge finish and any frosted or coated areas.
- Cleanliness and packing — state cleanliness level and packing for lab use.
Engineering guides for this part
For material grades and coating options, see JGS1 Quartz Glass for UV Optical and Precision Components. For an application example, read Custom Precision Glass for Microfluidic and Biomedical Devices.
FAQ
What sizes and thicknesses are available? expand_more
The listing gives size 7.5*12.5*45mm. Custom outlines and thicknesses are made to drawing; state the tolerance you need.
Where is this optical cuvette used? expand_more
Listed applications: Laboratory Supplies.
What should I include in a quote request? expand_more
Include material, dimensions, surface and edges and cleanliness and packing, plus quantity and a drawing if the part is custom.
