Product type: Thin Film Filter. Application: Lighting, Medical, Optical, Photography.
Overview

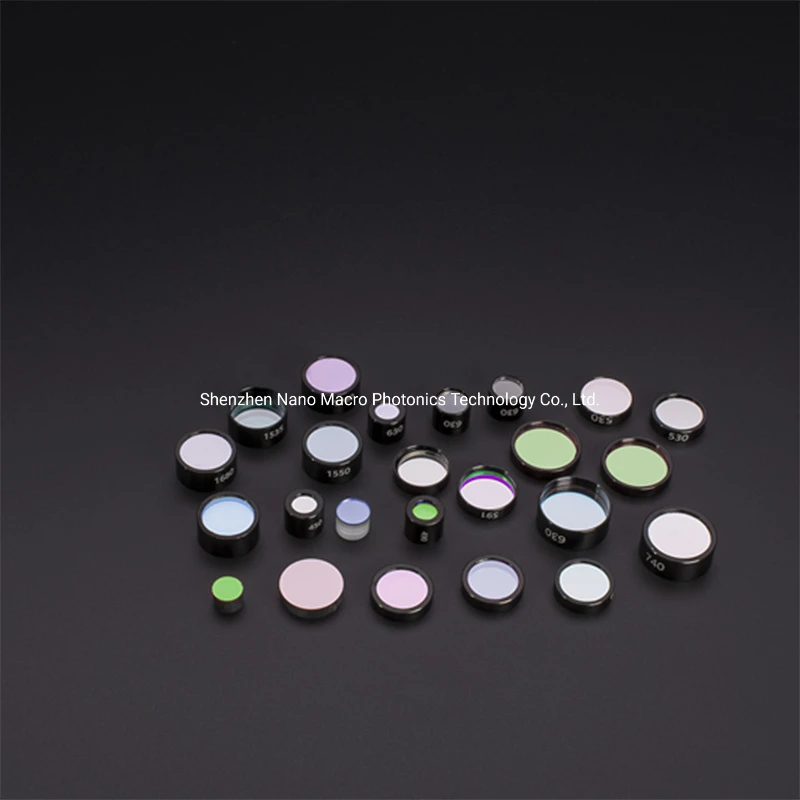

The Spectrum Measurement Used Coated Narrow Bandpass Filter Optical Glass is supplied as a bandpass filter made from Glass. Listed geometry: thickness 1-5mm or Custom. Optical / electrical data: wavelength Cuatomized, bandwidth Cuatomized, transmittance T>90%. It is used in Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Thin Film Filter |
| Shape | Customized |
| Cwl | Cuatomized |
| Fwhm | Cuatomized |
| Transmittance | T>90% |
| Usage | Lighting, Medical, Optical, Photography |
| Thickness Range | 1-5mm or Custom |
| Color | Transparent |
| Principle | Cut-off Filter |
| Angle of incidence | 0° |
| Supplier | Nano Macro Optics Co.,Ltd. |
Technical data
| CWL | 350nm-1100nm Cuatomized |
|---|---|
| Product size | custom (square or round) |
| Transmittance | T>90% (According to the customers demand) |
| Blocking | OD2-OD6 |
| Substrate | K9,BK7,B270,D263T glass… |
| FWHM | 8nm-20nm or custom |
| Surface Quality | 60-40 |
| Application | Spectrum Measurement |
What to specify when you request a quote
- Spectral target — listed as “Cuatomized”; state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “0°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “1-5mm or Custom”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — quote scratch-dig for imaging paths.
Engineering guides for this part
For material grades and coating options, see Selecting Bandpass Filter Glass for Reliable Optical Performance. For an application example, read Bandpass Filter Glass for Appliance Light Detection Modules. A related standard product is Bandpass Filter.
