Product type: Thin Film Filter. Application: Optical. Model: SPF380.
Overview

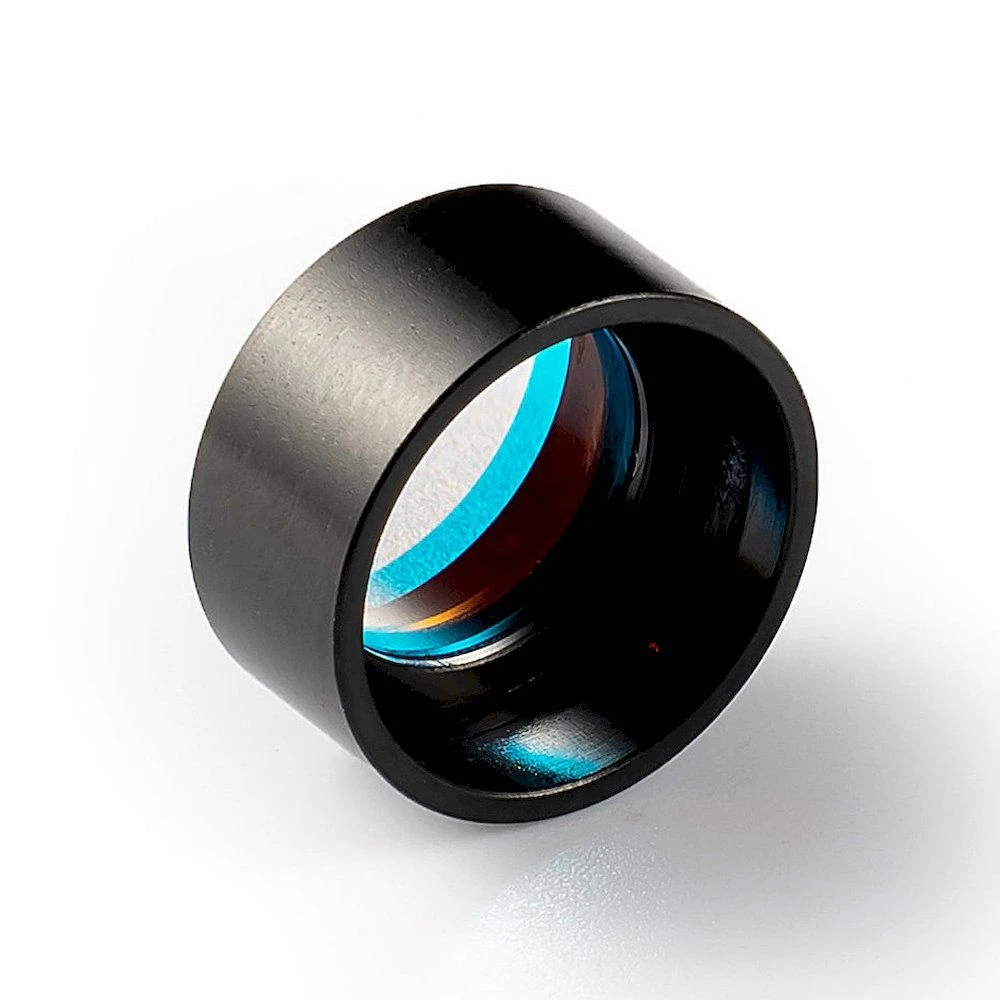

SPF380 UV Transmitting Optical Bandpass Filter 305-450nm for Curing Systems is a bandpass filter made from Optical Glass. Listed geometry: thickness Customized. Optical / electrical data: wavelength 380±5, transmittance ≥90. Typical applications: Optical. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Thin Film Filter |
| Shape | Customized |
| Usage | Optical |
| Model NO. | SPF380 |
| Thickness Range | Customized |
| Principle | Cut-off Filter |
| Angle of incidence | 0° |
| Cut-on Wavelength (Nm) | 380±5 |
| Passband Range (Nm) | 305-450 |
| Passband Transmittance (%) | ≥90 |
| Blocking Range (Nm) | 640-850 |
| Optical Density (Od) | 2 |
| Supplier | Shanghai Mega-9 Optoelectronic Co., Ltd. |
Technical data
| Name | Cut-off Wavelength | Passband Range | Passband Transmittance | Blocking Range |
| SPF650 | 650±5nm | 400 nm – 640 nm | ≥ 90%(Tavg) | 700 – 1100 nm (OD≥3) |
| SPF400 | 400±5nm | 200 nm – 390 nm | ≥ 85% (Tavg) | 430 – 700 nm (OD≥3) |
| SPF380 | 380±5nm | 305nm – 450nm | ≥ 90%(Tavg) | 640 – 850 nm(OD≥2) |
What to specify when you request a quote
- Spectral target — listed as “380±5”; state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — listed as “640-850”; give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “0°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “Customized”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Optical Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — quote scratch-dig for imaging paths.
Engineering guides for this part
For material grades and coating options, see Selecting Bandpass Filter Glass for Reliable Optical Performance. For an application example, read Bandpass Filter Glass for Appliance Light Detection Modules. A related standard product is Bandpass Filter.
FAQ
What is the SPF380 UV Transmitting Optical Bandpass Filter 305-450nm for Curing Systems made of? expand_more
It is listed as Optical Glass. Other grades can be quoted if your application needs different transmission, thermal or chemical properties.
What sizes and thicknesses are available? expand_more
The listing gives thickness Customized. Custom outlines and thicknesses are made to drawing; state the tolerance you need.
What optical or electrical performance does it have? expand_more
Listed values: wavelength 380±5, transmittance ≥90. Confirm the values at your operating wavelength, angle and temperature when you request a quote.
Where is this bandpass filter used? expand_more
Listed applications: Optical.
What should I include in a quote request? expand_more
Include spectral target, blocking, angle of incidence, size and thickness and substrate, plus quantity and a drawing if the part is custom.
