Product type: Convex-Concave. Application: Architecture. Model: OP-RF-88-43.
Overview

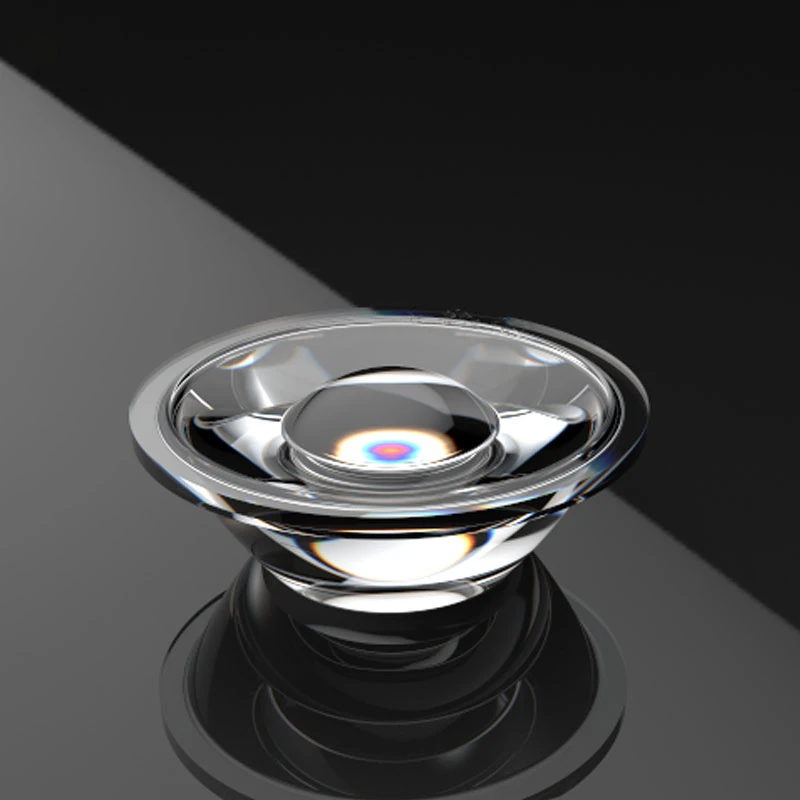

Spot Light LED Reflector Glass Material Opulent 5 10 Degree Narrow Beam LED COB Lens Convex Spotlight is an optical mirror made from Borosilicate. Listed for Architecture applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Type | Convex-Concave |
|---|---|
| Application | Architecture |
| Color | Transparent |
| Model NO. | OP-RF-88-43 |
| Glass Type | Borosilicate |
| Glass | Brosilicate Glass |
| Beam Angle | 20beam Angle |
| Supplier | Wuxi Opulent Led Lighting Technology Co., Ltd |
What to specify when you request a quote
- Material — name the glass or crystal.
- Geometry — listed as “20beam Angle”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
