Product type: Quartz Plate. Application: Chemical, Construction, Metallurgy, Ceramic, Casting, Glass, Well Drilling, Decorations, Heater, Printer. Model: HB-QP.
Overview

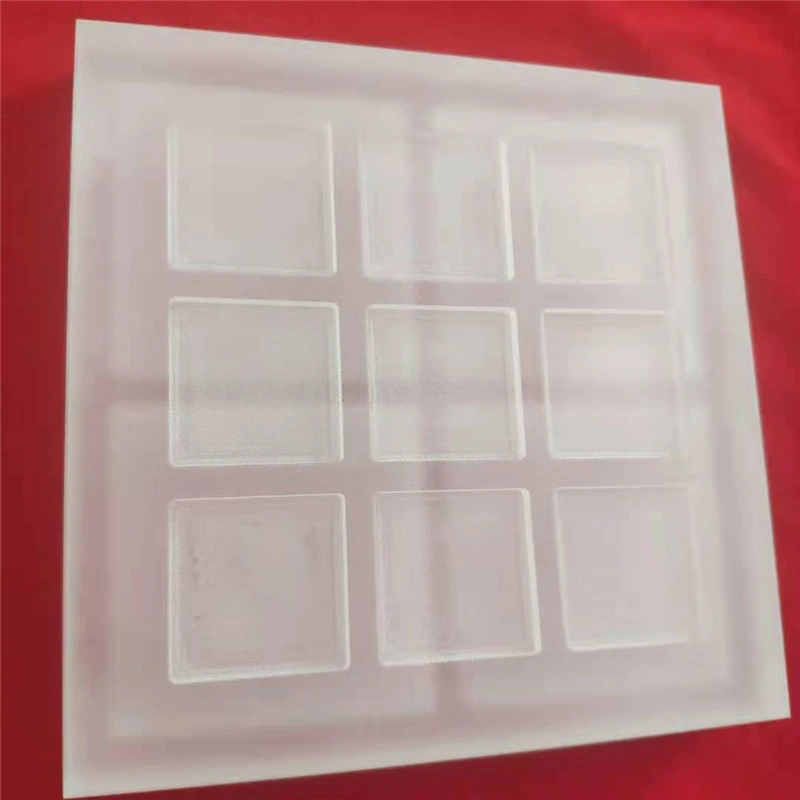

Square Drouble Side Laser Grooving Frosty Quartz Glass Plate: a precision glass plate / sheet. Listed geometry: size 5-1500mm, square shape. Surface quality Polishing; temperature 1100 Degree. Listed for Chemical, Construction, Metallurgy, Ceramic and Casting applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Type | Quartz Plate |
|---|---|
| Shape | Square |
| Size | 5-1500mm |
| Dimension | Can Be Customized |
| Surface Quality | Polishing |
| Application | Chemical, Construction, Metallurgy, Ceramic, Casting, Glass, Well Drilling, Decorations, Heater, Printer |
| Model NO. | HB-QP |
| Color | Frosty |
| Edge | Can Be Flamed |
| Temperature | 1100 Degree |
| Two Sides | Polishing or Grind |
| Surface | No Airline, No Bubbles |
| Sio2 | > 99.99% |
| Density | 2.21 |
| Customized Support | OEM |
| Key Word | Quartz Glass Plate |
| ISO 9001 | 2015 and IATF 16949 |
| ISO9001 | 2015 Quality Management System |
| Period of validity | from2024.10.17 to 2027.10.25 |
| Date | MAY .08.2026 |
| Supplier | Lianyungang Highborn Technology Co., Ltd. |
Technical data
| Property Content | Unit | Property Index |
| Density | g/cm3 | 1.9-2.0 |
| Tensile Strength | Pa(N/m2) | 4.9×107 |
| CompressiveStrength | Pa | >1.0×109 |
| (20℃-300℃)Coefficient of Thermal Expansion | /K | 5.4×10−7 |
| (20℃)Thermal Conductivity | W/(m·K) | Low |
| (20℃)Specific Heat | J/(kg·K) | 650 |
| Softening Point | ℃ | 1600 |
| Annealing Point | ℃ | 1100 |
What to specify when you request a quote
- Material — name the glass or quartz grade.
- Outline and thickness — listed as “5-1500mm”; give outline, thickness and tolerances.
- Holes, slots and features — listed as “Square”; dimension every hole and its position tolerance on the drawing.
- Edges — listed as “Can Be Flamed”; state edge finish and chamfer.
- Surface — listed as “Polishing”; state polish and flatness where they matter.
