Product type: Thin Film Filter. Application: Lighting, Medical, Optical, Photography, CCD/CMOS. Model: YGP-04.
Overview

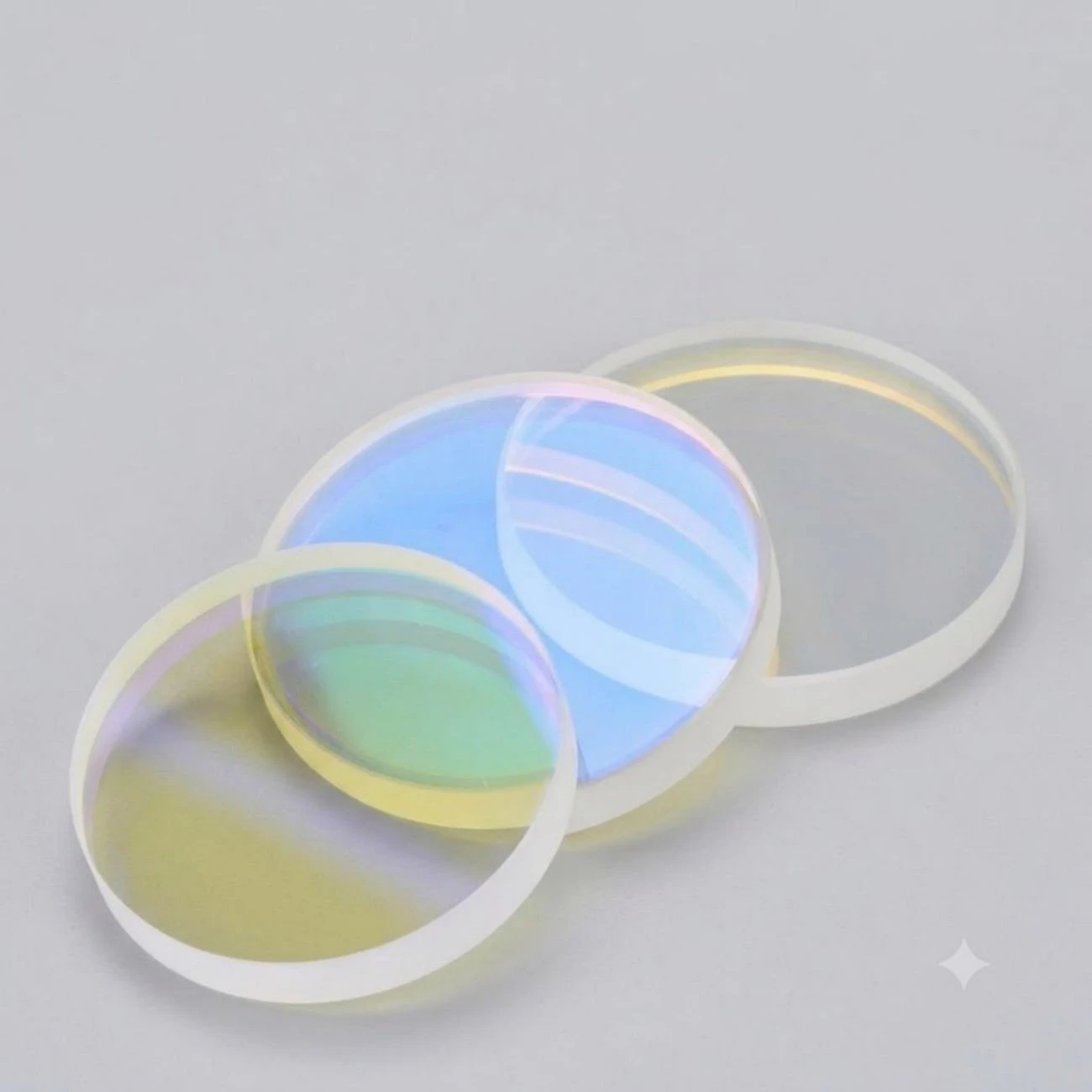

Stable Spectral Response Optical Glass Linear Polarizer Filters for Optical Communication is a waveplate / polariser / grating made from K9 Optical Glass / Plastic / Znse. Listed geometry: custom shape shape. Optical / electrical data: wavelength 200nm-1100nm, transmittance High Transmittance. Coating: Ar Coating / Spectral Coating / High Reflection Co. Listed for Projector, Medical Instrument and Optical Equipment applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | K9 Optical Glass / Plastic / Znse |
|---|---|
| Type | Thin Film Filter |
| Shape | Custom Shape |
| Wavelength Range | 200nm-1100nm |
| Coating | Ar Coating / Spectral Coating / High Reflection Co |
| Application | Projector, Medical Instrument, Optical Equipment |
| Usage | Lighting, Medical, Optical, Photography, CCD/CMOS |
| Model NO. | YGP-04 |
| Color | Transparent |
| Principle | Cut-off Filter |
| Angle of incidence | 0° |
| Diffusion Angle | Customized |
| Light Transmission | High Transmittance |
| Functions | Spectral Selection/Extraction |
| Stray Light Suppression/Cut-off | Blocks unwanted wavelength ranges, such as filtering out infrared interference (e.g., IR cut-off filters). |
| Supplier | Suzhou Vangta Electronic Technology Co., Ltd. |
Technical data
| Trademark | WQT / Vangta | Size | 15×15mm – 80×80mm Customized |
| Origin | Jiangsu, China | Wavelength Range | 200nm – 1100nm |
| Brand | Vantga | Coating | AR Coating / Spectral Coating / High Reflection Coating |
| Model No. | YGP-04 | Light Transmission | High Transmittance |
| Product Type | Optical Diffuser Filter | Diffusion Angle | Customized |
| Material | K9 Optical Glass / Plastic / ZnSe | Application | Projector, Medical Instrument, Optical Equipment |
| Shape | Custom Shape | Customization | OEM / ODM Available |
What to specify when you request a quote
- Material — listed as “K9 Optical Glass / Plastic / Znse”; name the glass or crystal.
- Geometry — listed as “0°”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Ar Coating / Spectral Coating / High Reflection Co”; list the band and reflectance or transmission target.
