Product type: Float Glass. Application: Lighting. Model: SD-60.
Overview

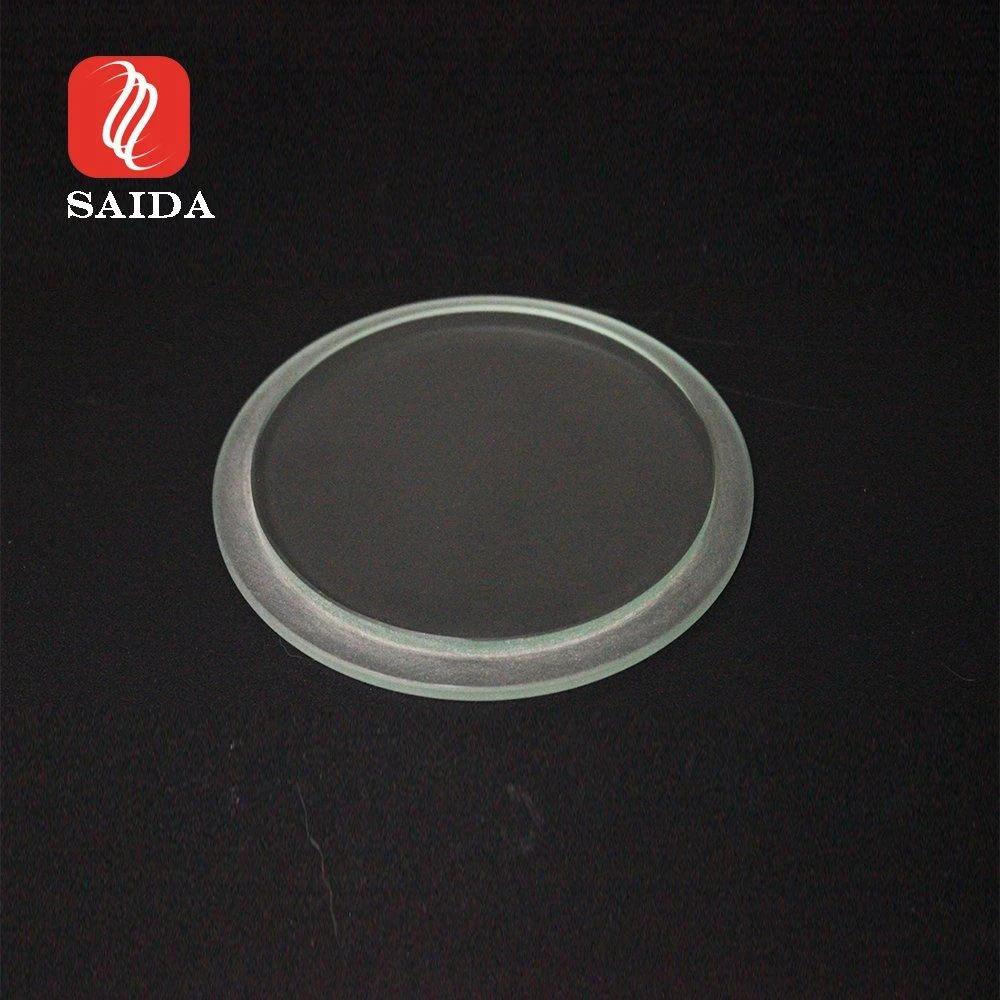

Step Tempered Glass Panel Cover for LED Light Lamp is an LED / OLED cover glass. Listed geometry: thickness 2-20mm. Temperature Customzied. It is used in Lighting. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Type | Float Glass |
|---|---|
| Thickness | 2-20mm |
| Application | Lighting |
| Model NO. | SD-60 |
| Power | 15w |
| No. of Light Source | ≤10PCS |
| IP Rating | IP44 |
| Input Voltage | 0 |
| Light Source | Without Light Source |
| LED Chips Brand | 0 |
| Technique | Clear Glass, Tempered Glass |
| Shap | Flat, Curve |
| Structure | Solid |
| Edge | Polishing Edge/Matt Edge |
| Color | Customized |
| Color Temperature | Customzied |
| Lamp Body Material | Glass |
| Processing & Advantage | Packaging & Shipping |
| Supplier | DONGGUAN SAIDA GLASS CO.,LTD |
Technical data
| Product name | Step glass cover glass usage for decoration lamp |
|---|---|
| Edge of tempered glass | Rough Edge,Finish Edge,Polish Edge,matt edge |
| Max. size of bent tempered glass | 2-15mm:2400*1500mm |
| Max. size of flat tempered glass | 2-8mm: 2400×3600mm 10-12mm: 2400*4200mm 15-19mm:2400*4500mm |
| Thickness | 2mm, 3mm,4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm,19mm… |
| Color | Clear, Ultra clear; Euro bronze, golden bronze; Blue, ocean blue, dark blue, light blue; F green, light green, dark green; Euro Gray, dark Gray. |
| Production Range | Low-E glass,tempered glass, insulated glass, laminated glass, reflective glass etc. |
| Application | Windows and doors in architecture,Facades and curtain walls,Decorations,Refrigerator shelves,Skylights,Railings,Escalators,Shower enclosures,Table tops and furniture,Swimming pools,Green house |
| Delivery time | 5-7 working days after receiving the deposit |
| our company equipment |
| 1.Dust free painting room |
| 2.Automatic acid etching producing line |
| 3.Automatic circularly hot bending furnace |
| 4.Finland Tamglass tempering furmance |
| 5.CNC Water jet cutting maching computer controlled processing machine |
What to specify when you request a quote
- Glass type and thickness — listed as “2-20mm”; name the glass (soda-lime, aluminosilicate, borosilicate) and thickness.
- Strengthening — state thermal tempering or chemical strengthening and the required surface compression or impact rating.
- Printing and coatings — listed as “0”; list silk-screen colours, windows, and any AR / AG / AF coating.
- Outline and edges — listed as “Polishing Edge/Matt Edge”; send a drawing with cut-outs, holes and edge finish.
- Optical requirements — give transmission, haze or gloss targets for the viewing area.
