Product type: Convex Lens. Application: Lighting, Medical, Optical, Photography. Model: TT Lens 81.
Overview

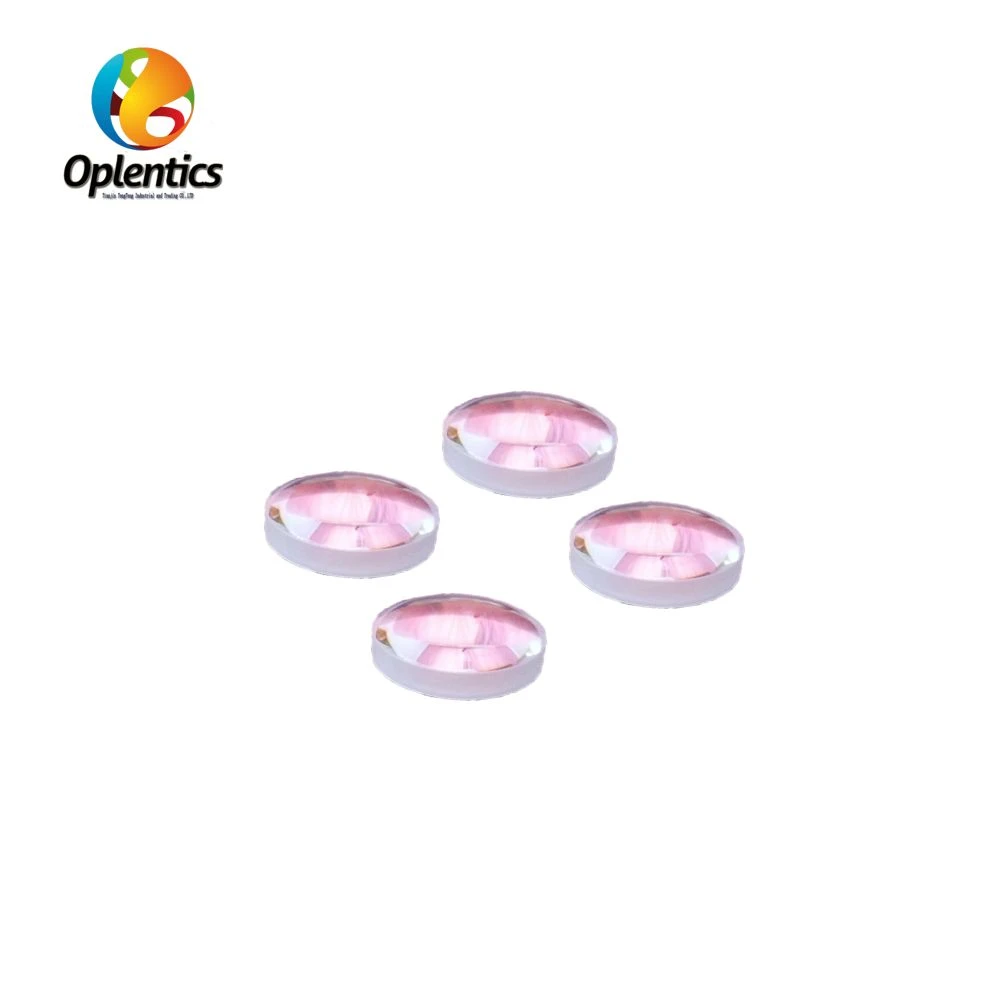

The Stock Standard Broadband Antireflection Coating Optical Micro Plano-Convex (PCX) Lenses is supplied as an optical lens made from Optical Glass. Listed geometry: thickness as Required, single-lens shape. Optical / electrical data: wavelength 587.6nm, transmittance >95%. Supplied uncoated; surface quality 40-20. It is used in Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Convex Lens |
| Shape | Single-lens |
| Thickness | as Required |
| Transmittance | >95% |
| Coating | Uncoated |
| Surface Quality | 40-20 |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | TT Lens 81 |
| Lenses Color | Clear |
| Polished | Yes |
| Bevel | Protective Bevel as Needed |
| Focal Length Specification Wavelength | 587.6nm |
| PCX | Plano-Convex |
| Supplier | Tianjin Tengteng Optoelectronic Technology Co., Ltd. |
Technical data
| Product Name | Stock plano convex lenses |
|---|---|
| Shape | PCX:Plano-Convex |
| Material | N-BK7/H-K9L |
| Coating | Uncoated |
| Size | Dia15mm to Dia 25.4mm |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — listed as “587.6nm”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “40-20”; quote surface figure (λ) and scratch-dig.
- Centring and edges — listed as “Protective Bevel as Needed”; state centration and edge chamfer.
- Coating — listed as “Uncoated”; list the band and reflectance or transmission target.
