Product type: Thin Film Filter. Application: Lighting, Medical, Optical, Photography.
Overview

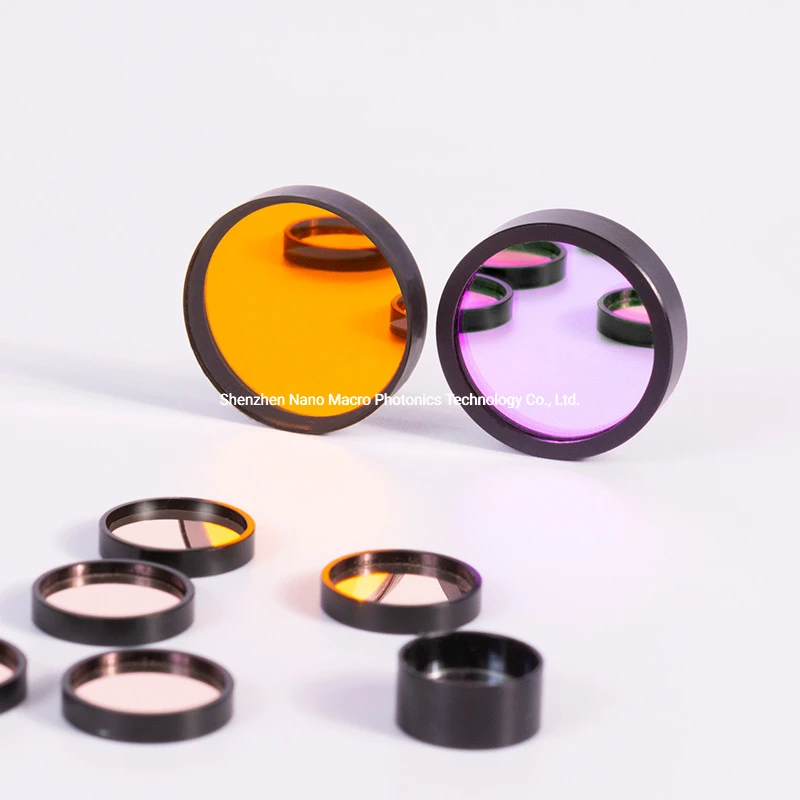

The Stocked Custom Bk7 Schott Glass Bandpass Optical Filter 350nm to 1100nm is supplied as a bandpass filter made from Glass. Listed geometry: size 5~120mm, thickness 0.5-3mm or Custom. Optical / electrical data: wavelength 350-1100nm, bandwidth Custom, transmittance T>90%. It is used in Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Thin Film Filter |
| Shape | Customized |
| Size | 5~120mm |
| Cwl | 350-1100nm |
| Fwhm | Custom |
| Transmittance | T>90% |
| Usage | Lighting, Medical, Optical, Photography |
| Thickness Range | 0.5-3mm or Custom |
| Color | Transparent |
| Principle | Cut-off Filter |
| Angle of incidence | 0° |
| Applications | Bio-Analyzer |
| Supplier | Nano Macro Optics Co.,Ltd. |
Technical data
| Wavelength | 350-1100nm |
|---|---|
| FWHM | custom |
| Substrate Material | K9,BK7,B270 etc |
| Dimensions | custom |
| Thickness | 1 ±0.1mm or custom |
| AOI | 0° |
| Transmittance | T>90% |
| Surface Quality (SQ) | 60-40 Scratch & Dig |
| Clear Aperture (CA) | 90% |
| Blocking | 350-1100nm except for transmission band |
What to specify when you request a quote
- Spectral target — listed as “350-1100nm”; state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “0°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “5~120mm”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — quote scratch-dig for imaging paths.
Engineering guides for this part
For material grades and coating options, see Selecting Bandpass Filter Glass for Reliable Optical Performance. For an application example, read Bandpass Filter Glass for Appliance Light Detection Modules. A related standard product is Bandpass Filter.
