Product type: Color Filter. Application: Lighting, Medical, Optical, Photography. Model: TT Filter 18.
Overview

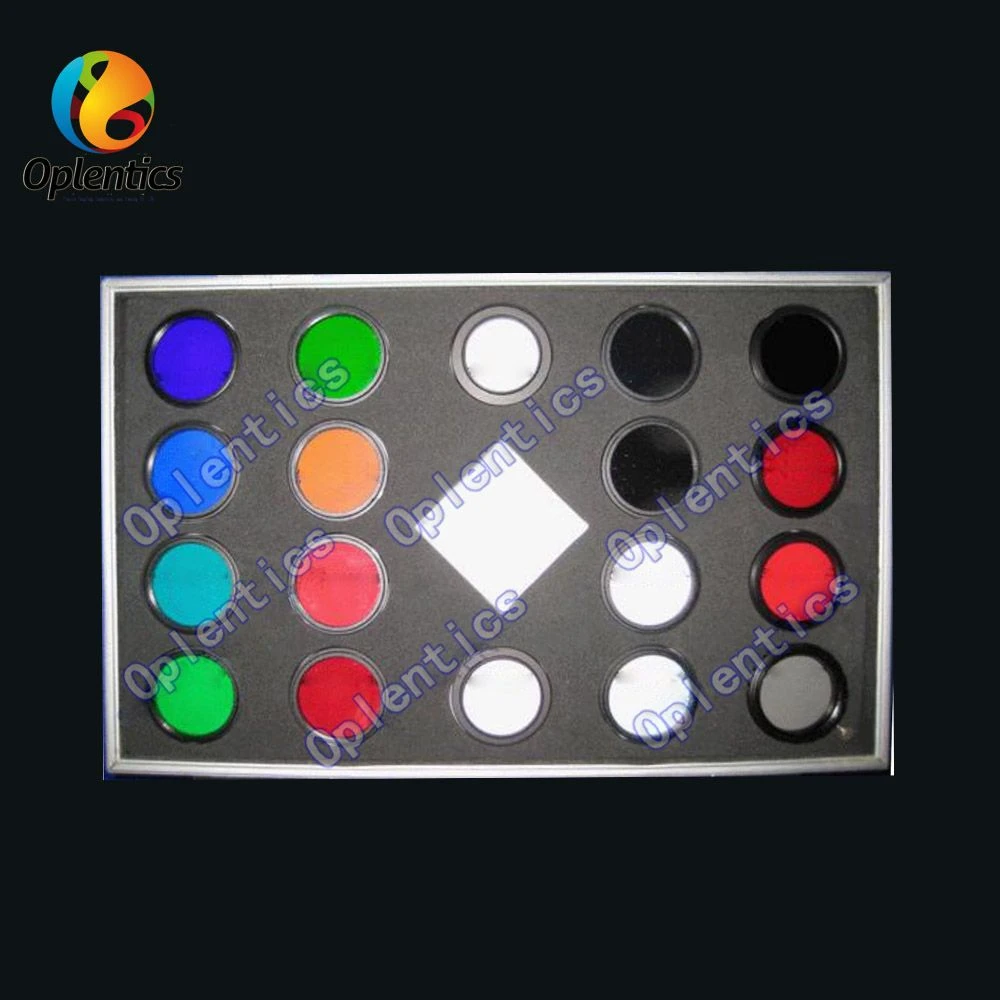

The Stocked Mounted Optical Glass Parts Band Pass Filter is supplied as a bandpass filter made from Glass. Listed geometry: thickness as Required. Surface quality as Required. Listed for Lighting, Medical, Optical and Photography applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Color Filter |
| Shape | Customized |
| Thickness | as Required |
| Surface Quality | as Required |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | TT Filter 18 |
| Thickness Range | 1mm-2mm |
| Color | Green |
| Principle | Cut-off Filter |
| Angle of incidence | 0° |
| Supplier | Tianjin Tengteng Optoelectronic Technology Co., Ltd. |
What to specify when you request a quote
- Spectral target — state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “0°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “as Required”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — listed as “as Required”; quote scratch-dig for imaging paths.
Engineering guides for this part
For material grades and coating options, see Selecting Bandpass Filter Glass for Reliable Optical Performance. For an application example, read Bandpass Filter Glass for Appliance Light Detection Modules. A related standard product is Optical Glass Colour Filter.
FAQ
What is the Stocked Mounted Optical Glass Parts Band Pass Filter made of? expand_more
It is listed as Glass. Other grades can be quoted if your application needs different transmission, thermal or chemical properties.
What sizes and thicknesses are available? expand_more
The listing gives thickness as Required. Custom outlines and thicknesses are made to drawing; state the tolerance you need.
Where is this bandpass filter used? expand_more
Listed applications: Lighting, Medical, Optical and Photography.
What should I include in a quote request? expand_more
Include spectral target, blocking, angle of incidence, size and thickness and substrate, plus quantity and a drawing if the part is custom.
