Product type: Thin Film Filter. Application: Lighting, Medical, Optical, Machine Vision. Model: BP253.7/12K.
Overview

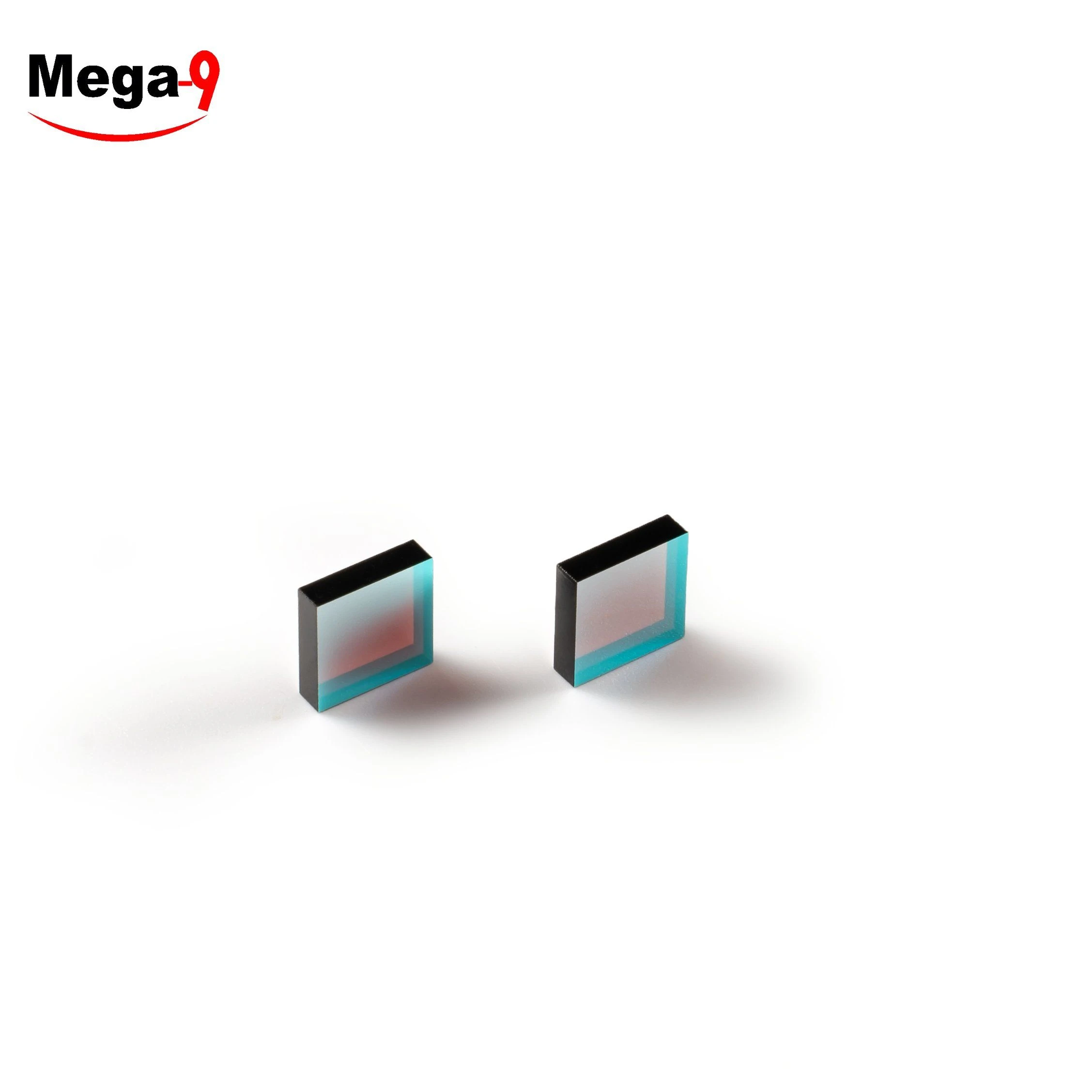

Superior Quality Optical Filter with 12nm Bandwidth for 253 7nm is an optical filter made from Glass. Listed geometry: thickness 1mm-2mm. Optical / electrical data: wavelength 253.7. Listed for Lighting, Medical, Optical and Machine Vision applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Thin Film Filter |
| Shape | Customized |
| Usage | Lighting, Medical, Optical, Machine Vision |
| Model NO. | BP253.7/12K |
| Thickness Range | 1mm-2mm |
| Color | Black |
| Principle | Interference Filter |
| Angle of incidence | 0° |
| Wavelength(Nm) | 253.7 |
| Bandwidht(Nm) | 12 |
| Tpeak(%) | 15 |
| Od | 4 |
| Over(Nm) | 400-1100 |
| Center Wavelength (CWL) | Precisely positioned with a customization accuracy of up to ±0.25nm to ensure perfect matching with the emission spectrum of light sources and detector sensitivities. |
| Peak Transmittance (Tpeak) | High-transmission dielectric coating with typical peak transmittance >90% (up to >95% for specific bands), maximizing the retention of the effective signal light. |
| Bandwidth (FWHM) | Available in a wide range of options, from ultra-narrow band (<3nm), narrow band (3-20nm) to broadband (>20nm), catering to different spectral resolution requirements. |
| Warranty Period | 2 Years |
| Technology | Free technical support and solutions provided |
| Supplier | Shanghai Mega-9 Optoelectronic Co., Ltd. |
Technical data
| Parameter | BP1064/1K | BP532/1K | BP632/1K |
| Center Wavelength (nm) | 1064 ± 0.15 | 532 ± 0.15 | 632 ± 0.15 |
| Bandwidth (FWHM, nm) | 1.0 ± 0.2 | 1.0 ± 0.2 | 1.5 ± 0.2 |
| Peak Transmittance (%) | ≥70 | ≥ 75 | ≥ 80 |
| Blocking Depth (OD) | OD5 | OD6 | OD6 |
| Surface Quality (S/D) | 60-40 | 60-40 | 60-40 |
| Operating Temp. (°C) | -40 ~ +85 | -40 ~ +85 | -40 ~ +85 |
| Dimensions (mm) | 25.4 *1.0 | 25.4 *1.0 | 25.4 *1.0 |
What to specify when you request a quote
- Spectral target — listed as “253.7”; state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — listed as “4”; give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “0°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “1mm-2mm”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — quote scratch-dig for imaging paths.
